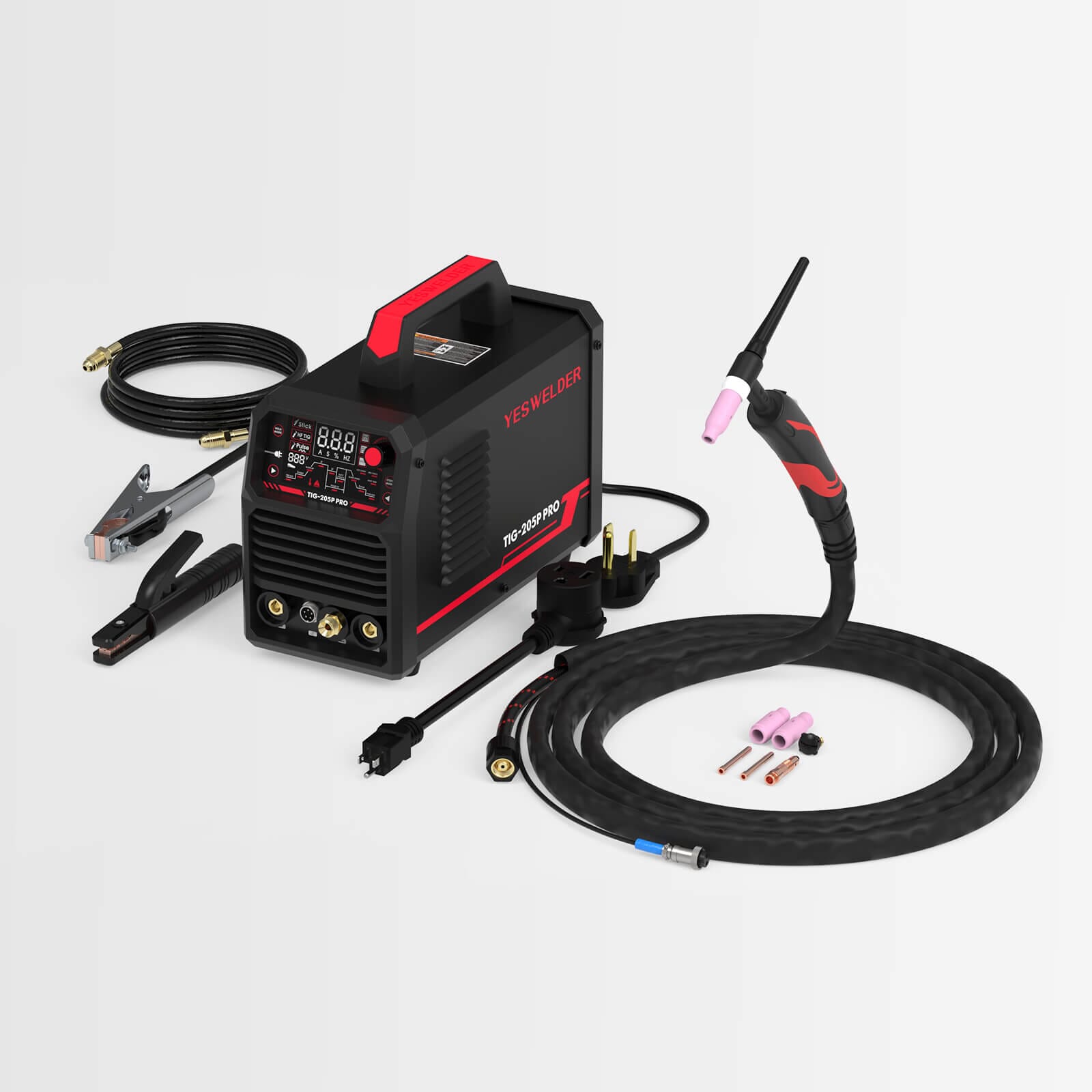

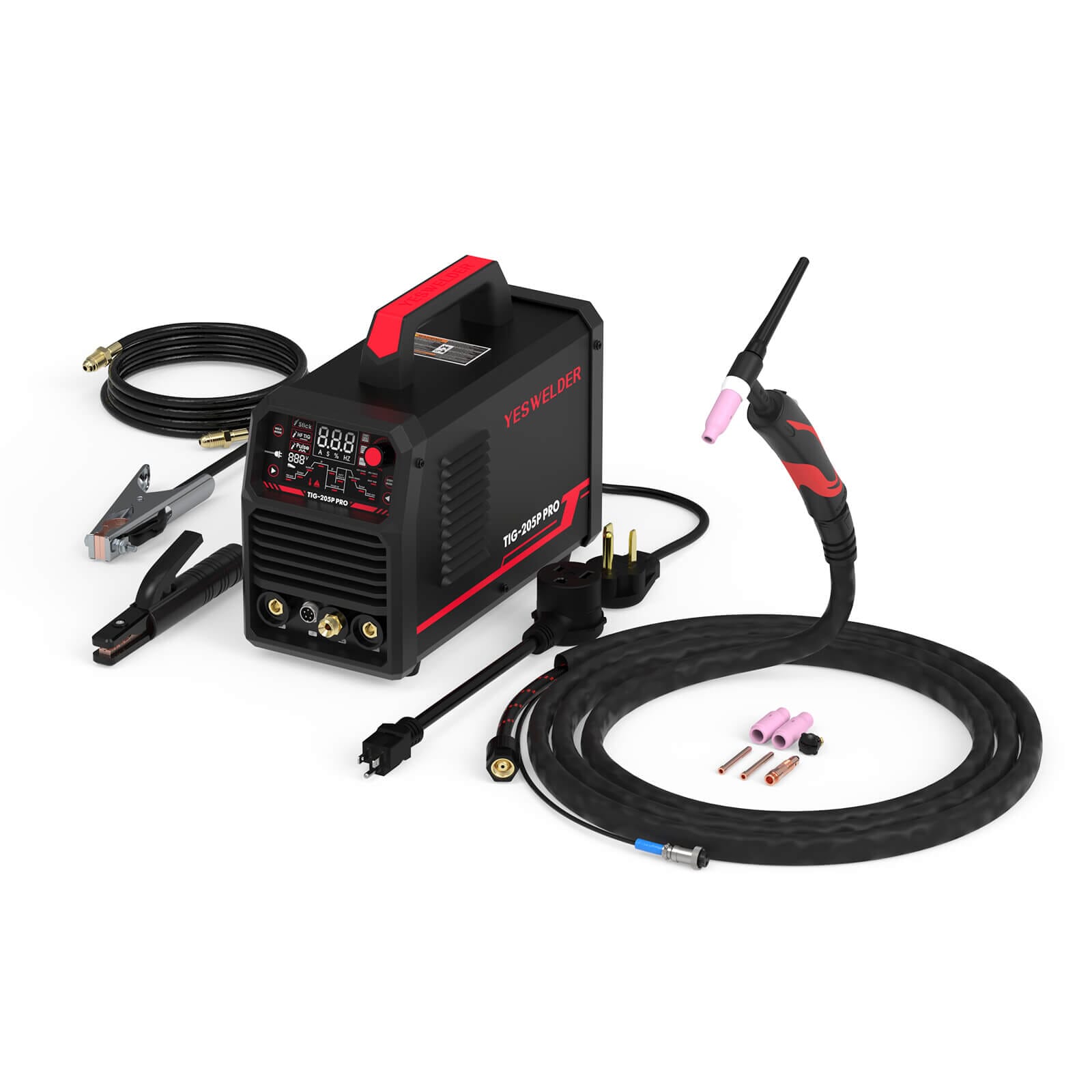

TIG-205P PRO
5 out of 5 stars4.7 (52 reviews)$249.00
or 4 payments of $62.25 with Klarna
DC pulse TIG/Stick welder focused on clean steel and stainless welds, a strong fit for precise projects.
- DC TIG, Pulse TIG, and Stick modes
- HF start for clean arc ignition
- Foot pedal ready for remote control
- Digital panel for precise welding control
- Dual voltage (110V/220V) for home garage or shop use
Info & Benefits
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit https://p65warnings.ca.gov.
Free standard shipping on orders over $150 within the contiguous US. Orders typically arrive in 3–5 business days. Expedited shipping options available at checkout.
Shipping policyIf you're not completely satisfied with your purchase, return it within 30 days for a full refund. No questions asked. Contact our support team to initiate a return.
Return policyCovered by a manufacturer warranty against defects in materials and workmanship.
Warranty termsGet the latest user manual and firmware for your machine.
More Features
Tap each feature to see the details.
Handle TIG and Stick welding with HF arc ignition, stable current, low spatter, and cleaner arc starts.
Built-in spot welding helps create consistent tack welds and repeatable weld timing for precision work.
Works with optional torch switches or foot pedals for flexible operation.
Fine-tune pulse, slope, gas flow, current, Hot Start, and Arc Force settings for more precise heat and arc control.
Materials × Thickness.
Recommended process
Stick
TIG
StickTIG5 × US $11 coin=2mm5 coins=10mm
Minimum20 GA0.9 mm
Maximum1/2"13 mm
Specifications
Power & Output
- Input Voltage
- 110V, 220V ±15% 50/60Hz
- Processes
- DC TIG (Pulse), Stick
- Output Current Range
- TIG: 10-160A @ 110V; 10-200A @ 220V Stick: 20-140A @ 110V; 20-160A @ 220V
- Duty Cycle
- TIG: 60% @ 200A
- Detailed Duty Cycle
- TIG (110V): 60% @ 160A; 100% @ 124A TIG (220V): 60% @ 200A; 100% @ 155A Stick (110V): 60% @ 140A; 100% @ 108A Stick (220V): 60% @ 160A; 100% @ 124A
Material & Capability
- Material Compatibility
- TIG: Steel, Stainless Steel Stick: Steel
- Recommended Thickness
- TIG: ≤ 3/16" (5 mm) @ 110V; ≤ 1/2" (13 mm) @ 220V Stick: ≤ 1/4" (6 mm) @ 110V; ≤ 1/2" (13 mm) @ 220V
TIG
- TIG Ignition Type
- HF Start
- Foot Pedal Compatibility
- Supported
- Tungsten Type
- WT20, WC20, WL20, WL15
- Tungsten Diameter
- ≤ 5/32" (4.0 mm) @ 110V ≤ 1/8" (3.2 mm) @ 220V
- TIG Torch Type
- WP-17 (M16 × 1.5 connector, 5-pin control cable)
- TIG Filler Rod Material
- ER70S-6, ER308L
- TIG Filler Rod Diameter
- ≤ 1/8" (3.2 mm) @ 110V ≤ 5/32" (4.0 mm) @ 220V
- Gas Requirements
- 100% Argon
- Consumables Compatibility
- WP-17 / WP-18 / WP-26
Stick
- Stick Electrode Type
- E6011 / E6013 / E7018
- Stick Electrode Diameter
- ≤ 3/32" (2.4 mm) @ 110V ≤ 5/32" (4.0 mm) @ 220V
Plasma Cutting
- CNC Capability
- Not supported
Physical & Safety
- Display
- LED
- Fan Control
- Continuous Fan Mode
- App Control
- Not supported
- Weight
- 10.7 lbs
- Dimensions
- 13.98" × 6.1" × 9.45"
- Protection Features
- Overheat Overcurrent Overvoltage
General
- Input Current
- 50A @ 110V; 40A @ 220V
- Open Circuit Voltage (OCV)
- TIG/Stick: 65V
- Generator Compatibility
- Generator not recommended. If necessary, use at least a 10 kW (15 HP), 120/240V generator with AVR.
- Cable Length
- Ground: 10 ft (3 m) TIG Torch: 13 ft (4 m)
- Power Cord Length
- 6.5 ft (2 m)
- Certification
- CE, ETL, UL
- Warranty
- 2 Years
All the essentials. And then some.
How it compares.
TIG-205P-PRO
Pulse DC TIG with stick backup and HF start.
From $249.00
Currently viewing
- DC TIG pulse
- Key Feature
- LED
- Display
- Steel / Stainless
- Material Compatibility
- ≤ 1/2" (13 mm) @ 220V
- Recommended Thickness
- 200A
- Max Output
- TIG / Stick
- Processes
- 110V / 220V
- Input Voltage
TIG-200P-ACDC-PRO
AC/DC TIG built for aluminum, with pulse and HF start.
From $559.99$649.00
- AC/DC TIG for aluminum
- Key Feature
- LED
- Display
- Steel / Stainless / Aluminum
- Material Compatibility
- ≤ 3/8" (10 mm) @ 220V
- Recommended Thickness
- 200A
- Max Output
- TIG / Stick
- Processes
- 110V / 220V
- Input Voltage
CT2050
7-in-1 AC/DC TIG, stick and plasma with a built-in air pump.
From $1,499.00
- Built-in pump + CNC
- Key Feature
- LED
- Display
- Steel / Stainless / Aluminum
- Material Compatibility
- ≤ 1/4" (6 mm) @ 220V
- Recommended Thickness
- 200A
- Max Output
- TIG / Stick / Plasma
- Processes
- 96-265V
- Input Voltage
Before you ask.
The TIG-205P-PRO supports DC TIG, DC Pulsed TIG, and Stick welding.
Yes. The TIG-205P-PRO supports 110V and 220V input.
In TIG mode, the TIG-205P-PRO provides 10-200A output on 220V and 10-160A output on 110V.
You can adjust peak current, base current, pulse frequency, and pulse width to control heat input and penetration.
Yes. HF arc ignition provides quick arc starts and helps reduce tungsten contamination.
No. The TIG-205P-PRO is a DC TIG machine; use an AC/DC TIG welder for AC TIG aluminum welding.
What customers are saying.
Rating snapshot
5 stars
38
4 stars
14
3 stars
0
2 stars
0
1 star
0
Overall rating4.75 out of 5 stars52 reviews
Review this product
Share your experience with other welders.
Robert Probst5 months ago
5 out of 5 starsSolid unit for a good price
If you are just starting out and don’t want to break the bank with name brands like Miller this is a solid option. I’ve put about 15 hours into this unit so far and it hasn’t let me down yet. Has good adjustability for different material needs. Strongly recommend you purchase the amperage control foot petal it makes welding more intuitive and controlled. All in all a great addition to the garage and incredibly useful if you are a DIYer or just want a compact unit that really punches above its price point. I’m by no means a professional, however you can’t deny the versatility and cost savings…
Customer9 months ago
5 out of 5 starsAmazing
This is one of the best running machines for the price I’ve came across and used
Henry Dando1 year ago
5 out of 5 starsAwsome machine
When I first saw these i was skeptical as you would expect, but man this machines awsome! For the price you get a proper TIG machine with all the features you need (except AC but thats understandable). Pulsing works well, HF starts gear the rotating head torch from factory is awsome. Buttons feel nice and are fairlt easy to use with gloves. collets, body etc are standard no-name, I switched to a gas lens with glass cup but those aren't standard on welders 5-10x this price. Arc is smoth, plusing is consistent, currents seem very similar to my other machine. If the duty cycle is accurate it…
Customer1 year ago
4 out of 5 starsfirst on dead on arrival, bought on ebay tried to return it
first on dead on arrival, bought on ebay tried to return it but Ebay wouldn`t give me a prepaid lablel, after a week of back and fourth weld mart told to keep it so I through it in the garagbe. bought another one from Temu works grate
Hanson Moseley1 year ago
5 out of 5 starsTIG-205P
Im very impressed with this little tig machine. great value and great performance. 110v ran well but 220v really unlocks the machines performace. i cannot tell a differnce between this machine and a $2000 machine. i reccomend anyone looking to journey into tig welding to purchse this machine.
Joseph Morrison1 year ago
5 out of 5 starsGive credit where credit is due
I’m a tool maker by trade so I’ve used real industrial TIG machines for years and I am honestly beyond impressed by this tiny machine. I didn’t want to spend a fortune for something at home and this is an amazing machine. I was skeptical because of the price and how small the machine is but after using it some, I’m beyond impressed. The HFS works perfect, the pedal control is smooth however a little more touchy than the miller at work. And don’t worry about the air cooled torch it worried me too but I have yet to get it warm enough to notice and I’ve ran some heavy welds @ 150+ amps already
Ed Debeljak1 year ago
5 out of 5 starsIt does it all!
Great compact welder good amperage rage for garage/shop or hobby welding.
Curt Currin2 years ago
4 out of 5 starsTIG-205P-PRO Pulse TIG Welder Stick/DC TIG/Pulse TIG 3 In 1
TIG-205P-PRO Pulse TIG Welder Stick/DC TIG/Pulse TIG 3 In 1 TIG Welder
Corey2 years ago
5 out of 5 starsMy First Tig Welder
Really can't beat it for the price. Got it during a 30% off sale. $200 for a very well made Tig is pretty amazing.
Eric Gilbert gilbert2 years ago
5 out of 5 starsTig 205 p dc
Really like it
Showing 1–10 of 52 reviews
