TIG-200P-ACDC-PRO AC/DC Aluminum TIG Welder

Name: TIG-200P ACDC PRO
Brand: YesWelder
SKU: TIG-200P-ACDC-PRO-A
Price: 649.0 USD
Availability: InStock

TIG-200P-ACDC-PRO AC/DC Aluminum TIG Welder with MIX TIG function

TIG-200P-ACDC-PRO-A Aluminum TIG welder_6

649.00

Pick Your Deal

Welder ｜ Only $551.65 (Save $97.35)

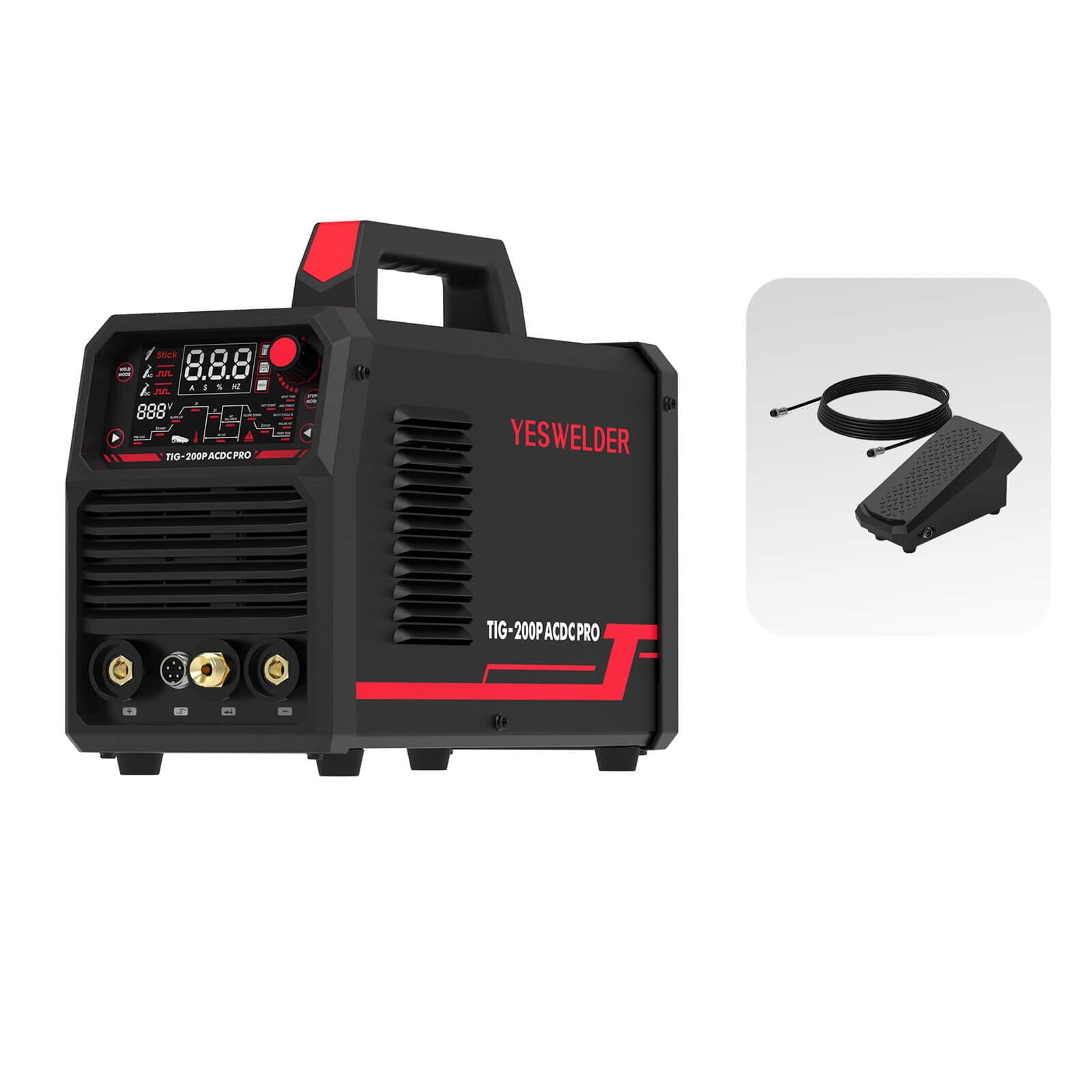

Welder+Foot Pedal ｜ Only $618.80 (Save $109.20)

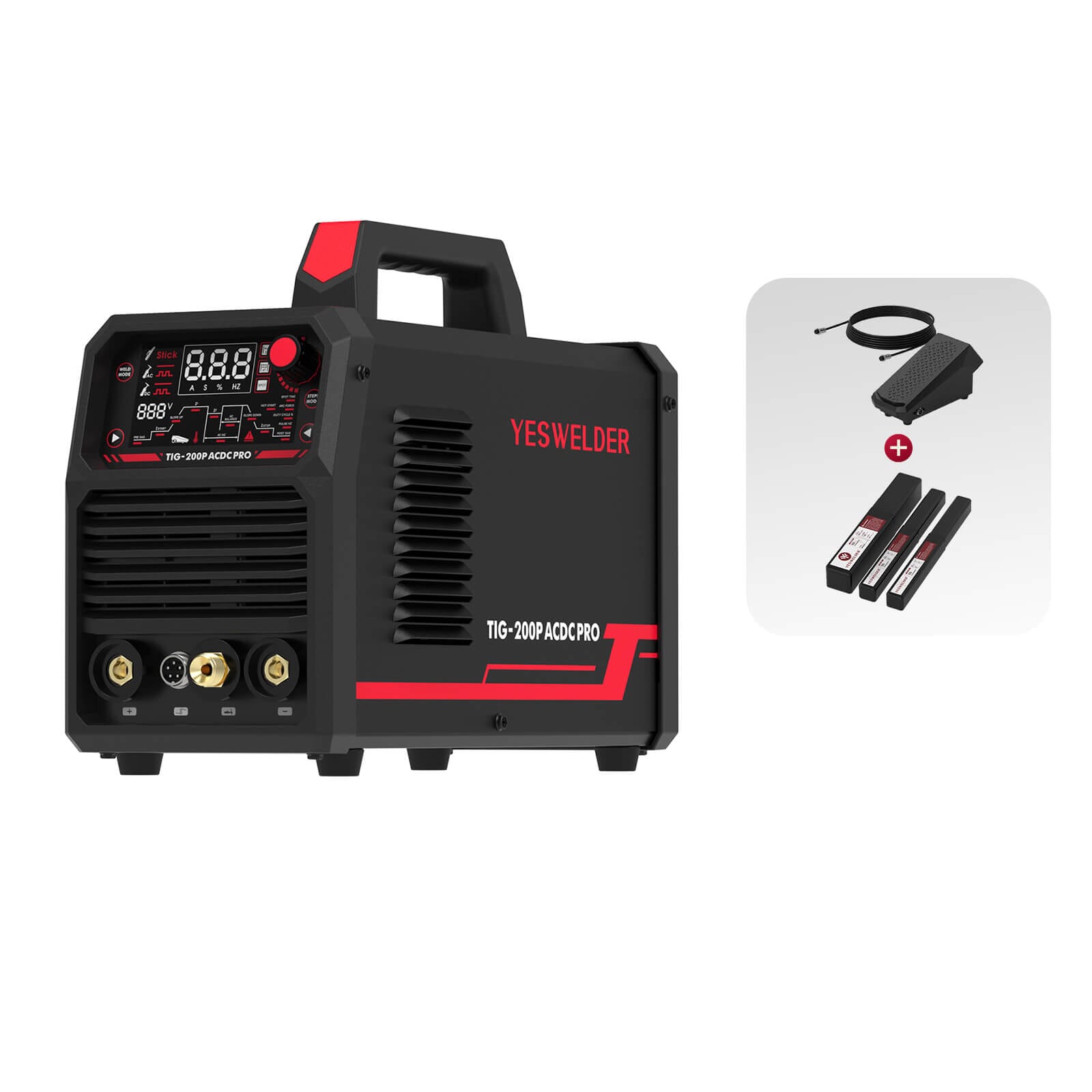

Welder+Combo Bundle ｜ Only $742.90 (Save $156.10)

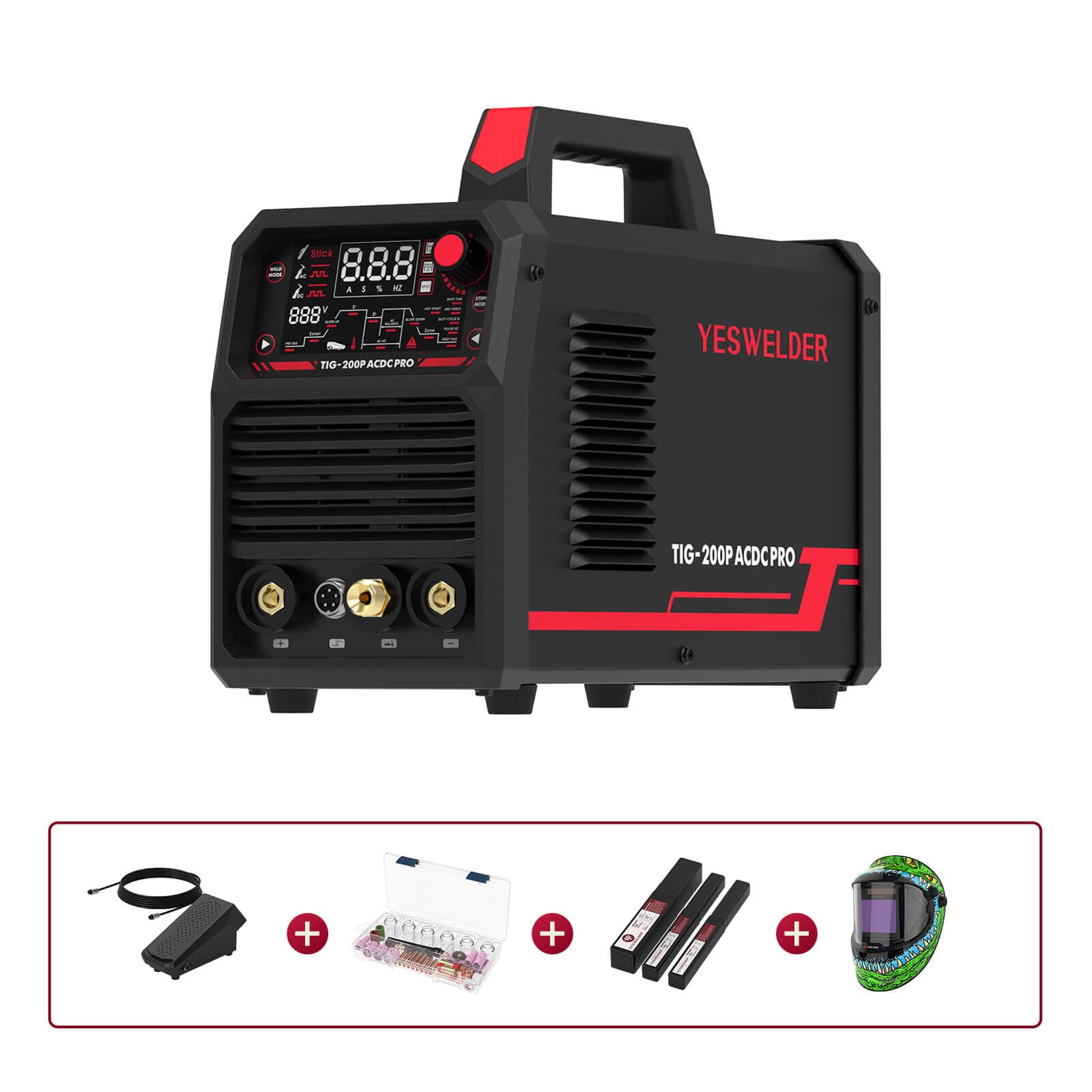

Welder+Helmet Bundle ｜ Only $826.29 (Save $181.71)

Free Contiguous US Shipping Over $150

2‑YEAR WARRANTY
(Applies to purchases on or after July 1, 2026.)

[{"id":43285943484525,"title":"Welder ｜ Only $551.65 (Save $97.35)","option1":"Welder ｜ Only $551.65 (Save $97.35)","option2":null,"option3":null,"sku":"TIG-200P-ACDC-PRO-A","requires_shipping":true,"taxable":true,"featured_image":{"id":37087299338349,"product_id":7050202087533,"position":1,"created_at":"2026-01-13T15:22:57+08:00","updated_at":"2026-01-13T17:42:13+08:00","alt":"TIG-200P-ACDC-PRO AC\/DC Aluminum TIG Welder","width":1600,"height":1600,"src":"\/\/yeswelder.com\/cdn\/shop\/files\/TIG-200P-ACDC-PRO-AAluminumTIGwelder_4.jpg?v=1768297333","variant_ids":[43285943484525]},"available":true,"name":"TIG-200P ACDC PRO - Welder ｜ Only $551.65 (Save $97.35)","public_title":"Welder ｜ Only $551.65 (Save $97.35)","options":["Welder ｜ Only $551.65 (Save $97.35)"],"price":64900,"weight":16000,"compare_at_price":null,"inventory_management":"shopify","barcode":"766679445237","featured_media":{"alt":"TIG-200P-ACDC-PRO AC\/DC Aluminum TIG Welder","id":27717040472173,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/yeswelder.com\/cdn\/shop\/files\/TIG-200P-ACDC-PRO-AAluminumTIGwelder_4.jpg?v=1768297333"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}
,{"id":43757027885165,"title":"Welder+Foot Pedal ｜ Only $618.80 (Save $109.20)","option1":"Welder+Foot Pedal ｜ Only $618.80 (Save $109.20)","option2":null,"option3":null,"sku":"TIG-200P-ACDC-PRO-A+FP-5P-B","requires_shipping":true,"taxable":true,"featured_image":{"id":37087299207277,"product_id":7050202087533,"position":4,"created_at":"2026-01-13T15:22:57+08:00","updated_at":"2026-01-13T17:42:07+08:00","alt":"TIG-200P-ACDC-PRO + foot pedal","width":1600,"height":1600,"src":"\/\/yeswelder.com\/cdn\/shop\/files\/TIG-200P-ACDC-PRO-A_FP-5P-B_1a1176ff-aaf7-4757-918e-d451f0a9df74.jpg?v=1768297327","variant_ids":[43757027885165]},"available":true,"name":"TIG-200P ACDC PRO - Welder+Foot Pedal ｜ Only $618.80 (Save $109.20)","public_title":"Welder+Foot Pedal ｜ Only $618.80 (Save $109.20)","options":["Welder+Foot Pedal ｜ Only $618.80 (Save $109.20)"],"price":72800,"weight":18000,"compare_at_price":null,"inventory_management":"shopify","barcode":"662652335147","featured_media":{"alt":"TIG-200P-ACDC-PRO + foot pedal","id":27717040341101,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/yeswelder.com\/cdn\/shop\/files\/TIG-200P-ACDC-PRO-A_FP-5P-B_1a1176ff-aaf7-4757-918e-d451f0a9df74.jpg?v=1768297327"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}
,{"id":43620307468397,"title":"Welder+Combo Bundle ｜ Only $742.90 (Save $156.10)","option1":"Welder+Combo Bundle ｜ Only $742.90 (Save $156.10)","option2":null,"option3":null,"sku":"TIG-200P-ACDC-PRO-A+Combo Bundle-B","requires_shipping":true,"taxable":true,"featured_image":{"id":37087299174509,"product_id":7050202087533,"position":3,"created_at":"2026-01-13T15:22:57+08:00","updated_at":"2026-01-13T17:42:15+08:00","alt":"TIG-200P-ACDC-PRO+ combo bundle","width":1800,"height":1800,"src":"\/\/yeswelder.com\/cdn\/shop\/files\/TIG-200P-ACDC-PRO-A_combobundle.jpg?v=1768297335","variant_ids":[43620307468397]},"available":true,"name":"TIG-200P ACDC PRO - Welder+Combo Bundle ｜ Only $742.90 (Save $156.10)","public_title":"Welder+Combo Bundle ｜ Only $742.90 (Save $156.10)","options":["Welder+Combo Bundle ｜ Only $742.90 (Save $156.10)"],"price":87400,"weight":26000,"compare_at_price":89900,"inventory_management":"shopify","barcode":"662652335208","featured_media":{"alt":"TIG-200P-ACDC-PRO+ combo bundle","id":27717040308333,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/yeswelder.com\/cdn\/shop\/files\/TIG-200P-ACDC-PRO-A_combobundle.jpg?v=1768297335"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}
,{"id":43289622806637,"title":"Welder+Helmet Bundle ｜ Only $826.29 (Save $181.71)","option1":"Welder+Helmet Bundle ｜ Only $826.29 (Save $181.71)","option2":null,"option3":null,"sku":"TIG-200P-ACDC-PRO-A+Promo Bundle-B","requires_shipping":true,"taxable":true,"featured_image":{"id":37087299240045,"product_id":7050202087533,"position":5,"created_at":"2026-01-13T15:22:57+08:00","updated_at":"2026-01-13T17:42:17+08:00","alt":"TIG-200P-ACDC-PRO + promo bundle","width":1800,"height":1800,"src":"\/\/yeswelder.com\/cdn\/shop\/files\/TIG-200P-ACDC-PRO-A_promobundle.jpg?v=1768297337","variant_ids":[43289622806637]},"available":true,"name":"TIG-200P ACDC PRO - Welder+Helmet Bundle ｜ Only $826.29 (Save $181.71)","public_title":"Welder+Helmet Bundle ｜ Only $826.29 (Save $181.71)","options":["Welder+Helmet Bundle ｜ Only $826.29 (Save $181.71)"],"price":97210,"weight":26000,"compare_at_price":100800,"inventory_management":"shopify","barcode":"662652335215","featured_media":{"alt":"TIG-200P-ACDC-PRO + promo bundle","id":27717040373869,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/yeswelder.com\/cdn\/shop\/files\/TIG-200P-ACDC-PRO-A_promobundle.jpg?v=1768297337"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}
]

Product Manual PDF Download

Professional AC/DC TIG welder for precision aluminum and thin-gauge fabrication. Features pulse control for arc stability and clean bead.

Professional AC TIG for superior aluminum welding and enhanced arc stability
Pulse TIG functionality for precise heat input control and minimized distortion
Wide range covering thin-gauge sheet to thick plate fabrication
Expertly welds steel, stainless steel, aluminum, etc
Dual-voltage (110V/220V) input capability offers power versatility, whether at home or in the field

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Most items are usually shipped within 3-5 working days. Your delivery confirmation email will contain your tracking number and order details.

Should you have any questions, our team is also on hand 7 days a week and can be reached at support@yeswelder.com.

TIG-200P-ACDC-PRO-A

The TIG-200P AC/DC TIG Welder combines advanced technology and user-focused features, making it suitable for both hobbyists and professionals. It delivers exceptional performance for welding aluminum and special alloys, with flexible waveform selection and precise pulse control.

FEATURES

Multiple Welding Modes: Supports AC TIG, DC TIG, Pulse TIG, Mix TIG, and Stick for full versatility.
Mix TIG (Hybrid AC/DC): Combined AC and DC for deeper penetration, faster welding, and smoother beads.
Selectable Waveforms( AC TIG & Mix TIG): Choose Square, Triangle, or Sine wave for optimal control and weld quality.
Pulse TIG Control: Greater accuracy on thin materials and challenging weld positions.
Maximum Welding Thickness: Handles up to 3/8" steel with TIG or Stick.
Remote Control Support: Works with optional torch switches or foot pedals for flexible operation.
Versatile Stick Welding: Supports 7018, 6011, and 6010 electrodes for multiple applications.
Intelligent Fan System: Temperature-controlled fan minimizes noise and extends equipment lifespan.

Wave Selection

Instantly switch between Standard AC and Hybrid Wave TIG modes for superior flexibility and improved weld quality, especially on aluminum and specialty alloys.

Portable & Powerful

Lightweight design (only 19.59 lb) ensures easy portability and excellent mobility—ideal for both shop and field use.

Advanced IGBT Technology

High-frequency IGBT inverter ensures greater reliability, reduced energy loss, and ultra-quiet operation.

Multiple Welding Processes

Supports AC TIG, AC Pulse TIG, DC TIG, DC Pulse TIG, MIX TIG (Hybrid AC/DC), Spot TIG, and Stick welding. HF start ensures quick, reliable arc ignition, while selectable square, triangle, and sine waveforms provide precise arc control for aluminum welding. MIX TIG combines AC cleaning and DC penetration for improved weld quality, while Hot Start and Arc Force deliver smooth, stable Stick welding performance.

Advanced Digital Control Panel

The digital screen provides intuitive operation by displaying welding parameters clearly, allowing for precise control. With a user-friendly interface and excellent visibility, the digital screen enhances usability and efficiency, making it an invaluable upgrade for improved welding performance and productivity.

Remote Control Compatibility

The pedal remote and welding torch remote control are both compatible with this welder.

This welder is equipped with pedal remote control capabilities, enabling real-time control of welding current by the operator, even at distances greater than 10m.

Other brands' digital welding torch is compatible with this welder.

Various Material Capability

Works best on aluminum, nickel alloy, stainless steel, titanium, mild steel, copper, etc.

It make aluminum welding easier. Suitable for aluminum up to 3/8”.

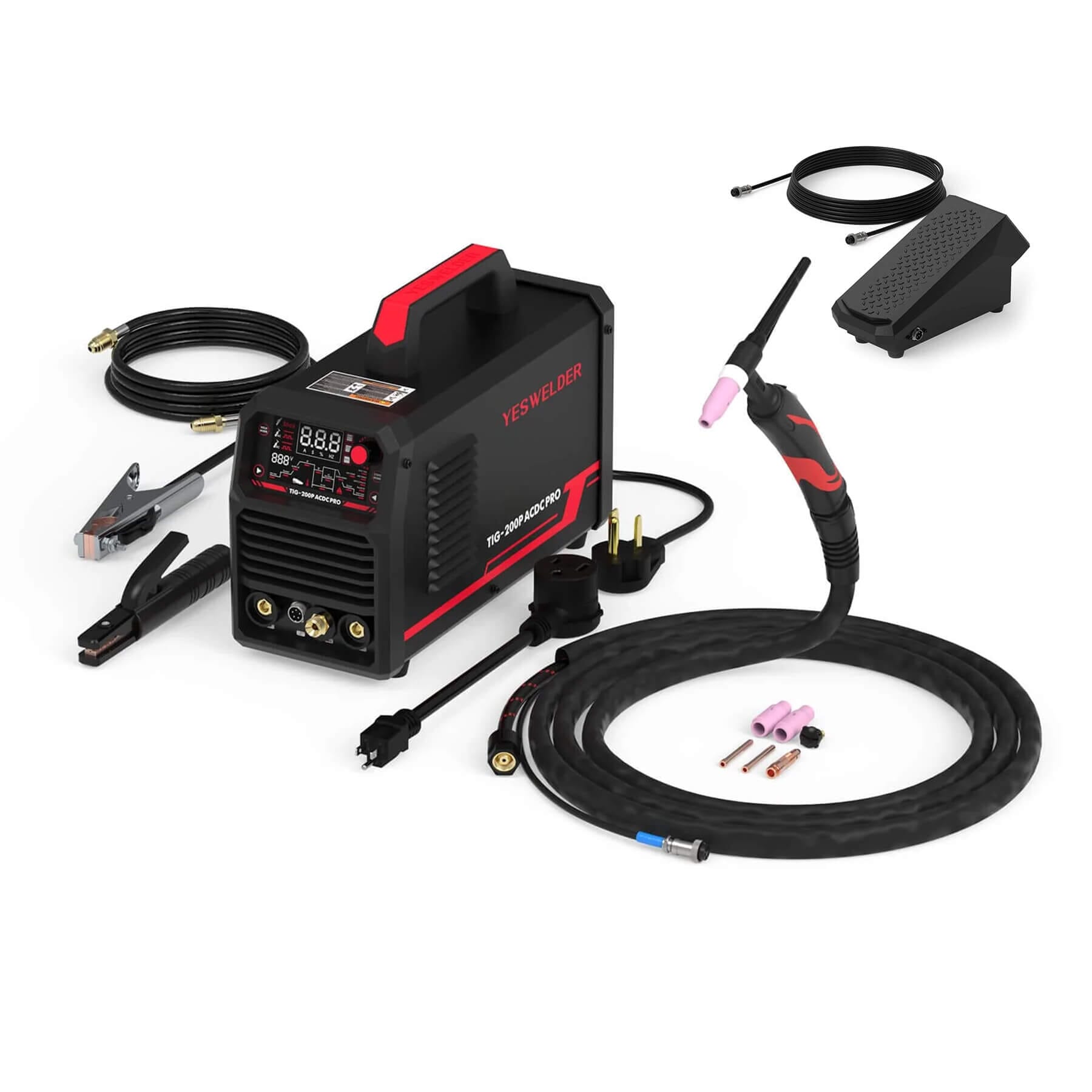

What’s Included

TIG-200P-ACDC-PRO Welder
Ground Clamp 10ft
Electrode Holder 10ft
Additional TIG accessories: 3 Collets, 1 Collet Body, 3 Alumina Ceramic Cup, 1 Long Back Cap, 1 Short Back Cap
220V to 110V Power Adapter
13ftWP-26-5P TIG Torch with M16*1.5 Connector and 5-PIN Control Cable
Gas hose

Specification

Welder Weight: 19.59lb
Welder Dimensions:15.7"*7.09"*9.84"
Input Current: 50A@110V, 40A@220V
Output Current:
--TIG: 10~140A@110V
--TIG: 10~200A@220V
--Stick: 20~120A@110V
--Stick: 20~160A@220V
Welding Material: Carbon Steel/Stainless Steel/Aluminum
Protection Class: IP21S

TIG-200P-ACDC-PRO Specifications

Technical details for TIG-200P-ACDC-PRO welder.

FIRSTESS TIG-200P-ACDC-PRO technical specifications
Category	Feature	Specification
Power & Output
Category	Feature	Specification
Power & Output	Input Voltage	110V, 220V ±15% 50/60Hz
Power & Output	Processes	AC/DC/MIX TIG (Pulse), Stick
Power & Output	Output Current Range	TIG: 10-140A @ 110V, 10-200A @ 220V Stick: 20-120A @ 110V, 20-160A @ 220V
Power & Output	Duty Cycle	TIG: 30% @ 200A @ 220V, 100% @ 110A @ 220V Stick: 30% @ 160A @ 220V, 100% @ 88A @ 220V
Material & Capability
Category	Feature	Specification
Material & Capability	Material Compatibility	TIG: Steel, Stainless Steel, Aluminum Stick: Steel
Material & Capability	Recommended Thickness	TIG: 5/16" (8 mm) @ 110V, 3/8" (10 mm) @ 220V Stick: 5/16" (8 mm) @ 110V, 3/8" (10 mm) @ 220V
TIG Specs
Category	Feature	Specification
TIG Specs	TIG Ignition Type	HF Start
TIG Specs	Foot Pedal Compatibility	Supported
TIG Specs	Tungsten Type	WT20, WC20, WL20, WL15, WP
TIG Specs	Tungsten Diameter	≤5/32" (4.0 mm) @ 110V, ≤1/8" (3.2 mm) @ 220V
TIG Specs	TIG Filler Rod Material	ER70S-6, ER308L, ER4043
TIG Specs	TIG Filler Rod Diameter	≤1/8" (3.2 mm) @ 110V, ≤5/32" (4.0 mm) @ 220V
TIG Specs	TIG Torch Type	WP-26 TIG Torch (M16×1.5 Connector, 5-Pin Control Cable)
TIG Specs	Consumables Compatibility	WP-17/18/26 TIG Welding Torch Consumables
TIG Specs	Gas Requirements	100% Argon
Stick Specs
Category	Feature	Specification
Stick Specs	Stick Electrode Type	E6010, E6011, E6013, E7018
Stick Specs	Stick Electrode Diameter	≤3/32" (2.4 mm) @ 110V, ≤5/32" (4.0 mm) @ 220V
Physical & Safety
Category	Feature	Specification
Physical & Safety	Display	LED
Physical & Safety	Fan Control	Fan on Demand
Physical & Safety	Dimensions & Weight	15.7" × 7.09" × 9.84", 19.59 lbs
Physical & Safety	Protection Features	Overheat

Frequently Asked Questions

What welding modes does the TIG-200P-ACDC-PRO support?

The TIG-200P-ACDC-PRO supports AC TIG, AC Pulse TIG, DC TIG, DC Pulse TIG, MIX TIG, Spot TIG, and Stick welding.

Can the TIG-200P-ACDC-PRO TIG weld aluminum?

Yes. The TIG-200P-ACDC-PRO supports AC TIG and AC Pulse TIG, making it suitable for TIG welding aluminum.

Can the TIG-200P-ACDC-PRO run stick electrodes?

Yes. Stick mode supports common electrodes including 7018, 6011, and 6010.

What TIG waveforms are available?

Selectable square, triangle, and sine waveforms let you tune the arc for different TIG applications.

What input current does the TIG-200P-ACDC-PRO require?

The TIG-200P-ACDC-PRO is rated at 50A input current on 110V and 40A on 220V.

Does the TIG-200P-ACDC-PRO use HF start?

Yes. HF start helps create quick, reliable TIG arc ignition without scratch starting.
