WP-17/18/26 TIG Torch Consumables Kit

Four configurations cover compact stubby gas lens setups, mixed Pyrex and alumina cup selections, and larger collet assortments for WP-17/18/26 TIG torches. Choose by cup style, cup size, and the included collet supply.

Works With

• WP-17 TIG torch families
• WP-18 TIG torch families
• WP-26 TIG torch families

Choose the Right Kit

• 22-Piece: Compact #10 Pyrex and stubby gas lens setup
• 49-Piece: #10 Pyrex cups plus #4-#8 alumina and gas lens cups
• 68-Piece: Larger collet supply with Pyrex cups and #4-#8 alumina and gas lens cups
• 71-Piece: #12 Pyrex cups, screen diffusers, and the larger collet supply

Kit Options

BPG35-22: 22-Piece Pyrex & Stubby Gas Lens

• 4 × #10 Pyrex Cups
• 6 × O-Rings
• 1 × 17GLG20 Insulator
• 4 × Stubby Gas Lens Collet Bodies, .040""-1/8"" (1.0-3.2 mm)
• 4 × Stubby Collets, .040""-1/8"" (1.0-3.2 mm)
• 3 × Back Caps

BPG35-49: 49-Piece Pyrex & Alumina

• 6 × #10 Pyrex Cups
• 5 × Alumina Cups (#4-#8)
• 5 × Gas Lens Cups (#4-#8)
• 8 × Collet Bodies
• 8 × Collets
• 3 × Back Caps
• 12 × O-Rings
• 2 × Insulators

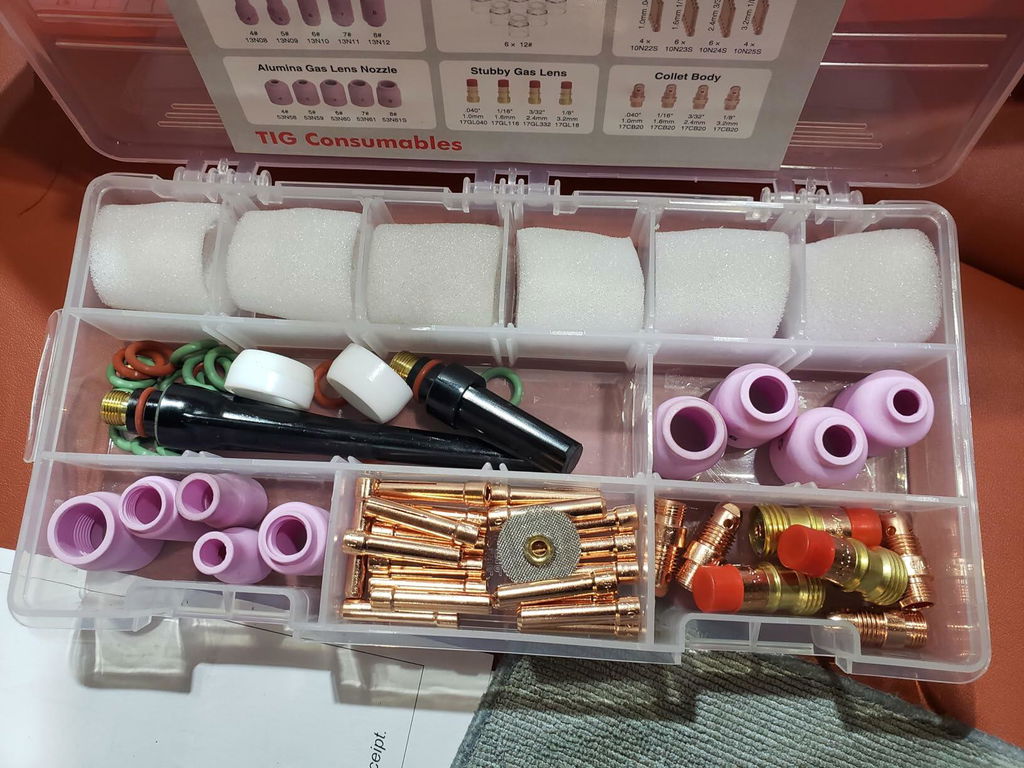

BPG35-68: 68-Piece Cup & Collet

• 5 × Pyrex Cups
• 5 × Alumina Cups (#4-#8)
• 5 × Gas Lens Cups (#4-#8)
• 8 × Collet Bodies
• 20 × Collets
• 3 × Back Caps
• 20 × O-Rings
• 2 × Insulators

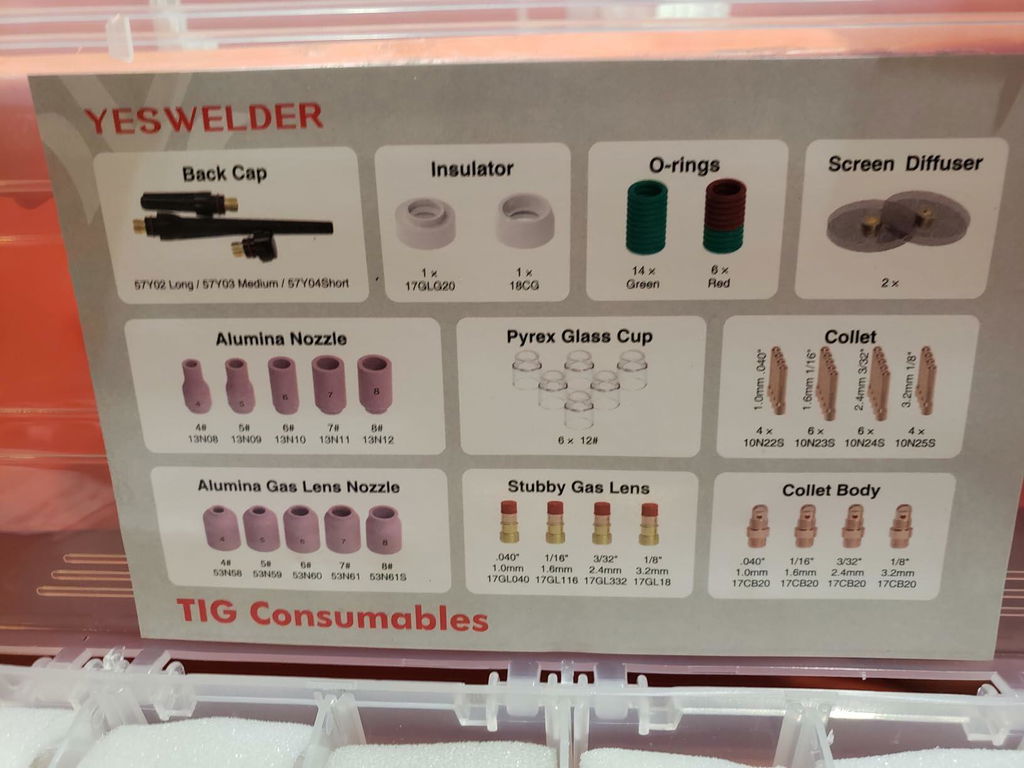

BPG35-71: 71-Piece #12 Pyrex

• 6 × #12 Pyrex Cups
• 5 × Alumina Cups (#4-#8)
• 5 × Gas Lens Cups (#4-#8)
• 8 × Collet Bodies
• 20 × Collets
• 3 × Back Caps
• 2 × Screen Diffusers
• 20 × O-Rings
• 2 × Insulators

Key Specifications

• Supported collet sizes: .040""-1/8"" (1.0-3.2 mm)

BPG35-22 Installation

Install the included 17GLG20 insulator before fitting the Pyrex glass cups.
