TIG-200P-ACDC-PRO
The TIG-200P-ACDC-PRO TIG Welder with Pulse features versatility to suit the needs of hobbyists and professional welders, especially for welding aluminum with AC TIG and Pulsed AC TIG Modes.
FEATURES
- AC TIG for welding aluminum up to 4/25”.
- Pulse TIG for the most awkward of welding angles.
- Ideal for 7018/6011/6010 electrode.
- Intelligent fan: automatically controlled by temperature.
- Remote control available for torch control and real-time amperage control.
AC Square Wave
Adjustable between 20-250Hz as well as AC Balance control.
Portable
Compact and light, ensuring welding portability on-the-go.
Advanced IGBT Technology
Reducing the volume and weight, and enhancing the conversion efficiency.
Equipped with AC Square Wave TIG, AC pulse TIG, DC TIG, DC Pulse TIG,Spot TIG and Stick,meet various welding process demands.
Efficient HF arc starts built-in pressurized arc ignition circuit
The Square wave mode is the optimal choice for improving weld quality and facilitating aluminum welding.
Stick welding: The built-in arc force feature ensures effortless arc starts.
The digital screen provides intuitive operation by displaying welding parameters clearly, allowing for precise control. With a user-friendly interface and excellent visibility, the digital screen enhances usability and efficiency, making it an invaluable upgrade for improved welding performance and productivity.
The pedal remote and welding torch remote control are both compatible with this welder.
This welder is equipped with pedal remote control capabilities, enabling real-time control of welding current by the operator, even at distances greater than 10m.
Other brands' digital welding torch is compatible with this welder.
Works best on aluminum, nickel alloy, stainless steel, titanium, mild steel, copper, etc.
It make aluminum welding easier. Suitable for aluminum up to 4/25''.

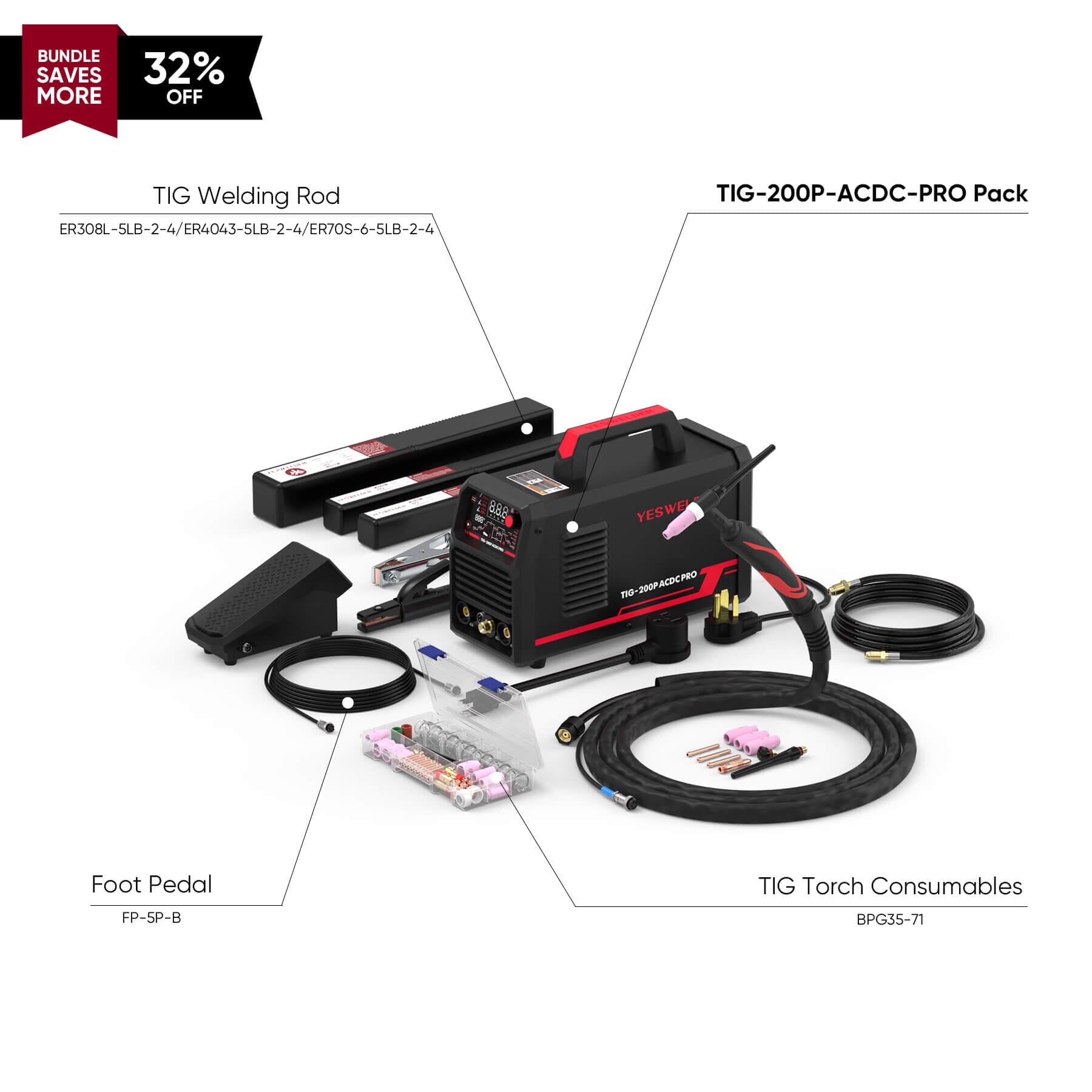

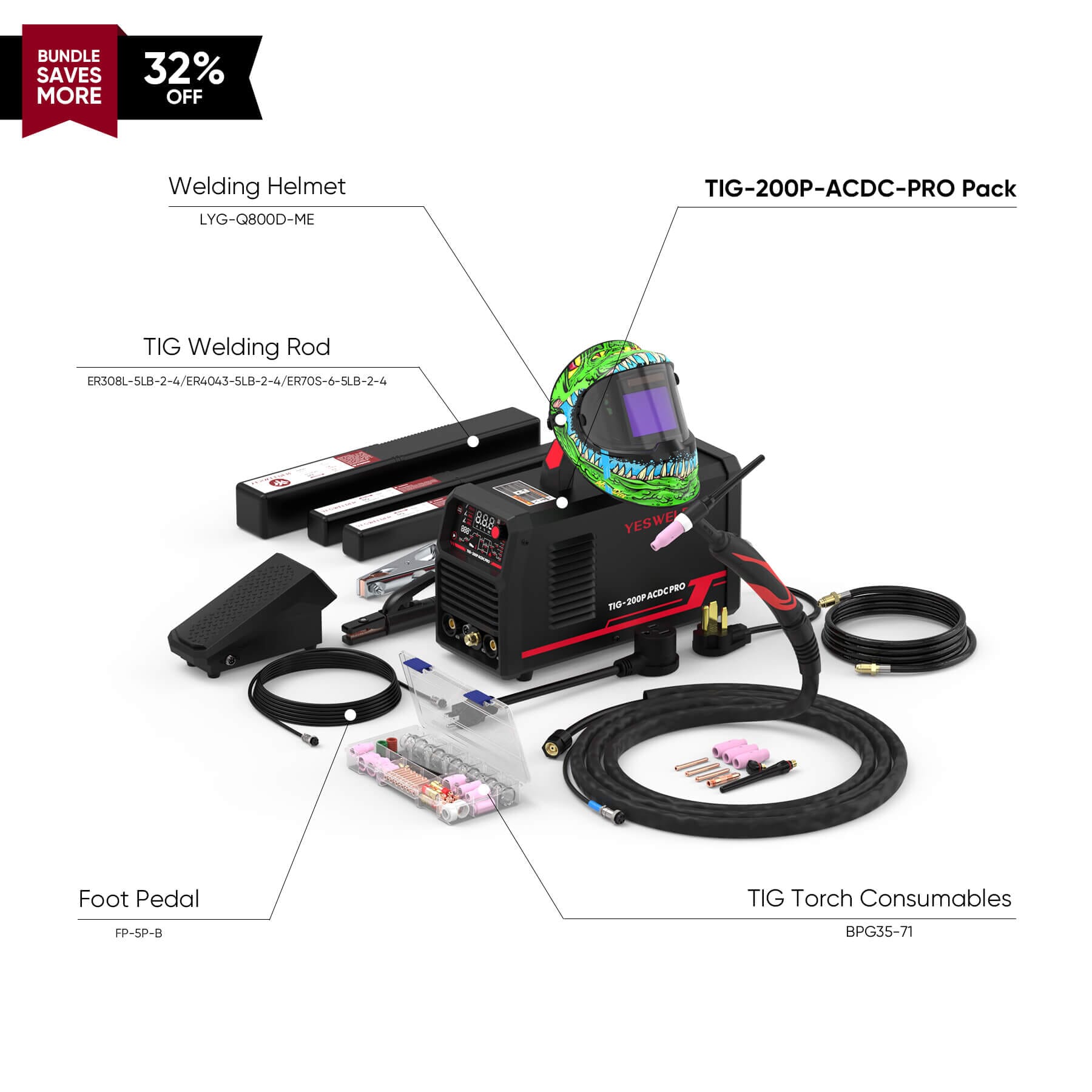

- TIG-200P-ACDC-PRO Welder
- WP-26 TIG torch 13ft
- Electrode Holder 10ft
- Earth Clamp 10ft
- Gas hose
- Additional TIG accessories: 3 Collets, 1 Collet Body, 3 Alumina Ceramic Cup, 1 Long Back Cap, 1 Short Back Cap
Welder Weight: 16.47lb
Welder Dimensions:15.35"*5.91”*8.66"
Input Current: 50A@110V,30A@220V
Output Current:
TIG 10-160A, STICK 10-140A, CUT 12-25A@110V
TIG 10-200A, STICK 10-160A
Welding Material: Carbon Steel/Stainless Steel/Aluminum
Protection Class: IP21S
