YesWelder 250A Aluminum MIG Welder Spool Gun Compatible

Regular price
560.00
Sale price
560.00
Regular price
699.99
Sold out
Unit price
per

Limited-Times Sale Extra 20% Off
Code: MIG20 at Checkout
220V MIG/Gasless/Stick/TIG Multi-Process Welder / Spool Gun Compatible / MIG Synergistic & Manual Setting Available / Capability for Steel, Stainless Steel, Aluminum / Suitable for 7018/6011 Electrode
  • DURABILITY
  • EASY SETUP
  • COMPATIBILITY

Download Product Manual
YesWelder 250A Aluminum MIG Welder Spool Gun Compatible
YesWelder 250A Aluminum MIG Welder Spool Gun Compatible
-
+
模块

|  MIG-250PRO-SG

The YesWelder MIG-250PRO Welder is suitable for any Do-It-Yourself, Maintenance, Repair, Metal Fabrication, and Hobbyist project.

FEATURES
  • MIG Synergistic & Manual Setting  on MIG function, easy and simple operation
  • 4 Functions in 1: Gas MIG /Gasless MIG / Lift TIG / Stick
  • Spool Gun Compatible
  • Can take up to 0.9mm (.035") MIG solid wire(Gas MIG) and 0.9mm(.035") MIG Flux wire(Gasless MIG)
  • Apply to D100/D200 rolls (<10lbs) of MIG wire
  • Capability for Steel, Stainless Steel, Aluminum
  • Suitable for 7018/6011 Electrode

Overheat /Overload shutdown

Multi protections prolong the machine’s lifespan

Smooth ARC

Easy arc start, with stable current

Advanced IGBT Technology

Reducing the volume and weight, and enhancing the conversion efficiency.

Pure Copper Transformer

Great conduction, high reliability rating, and compact size

FUNCTION

Multi-functions

  • MIG synergic setting & MIG manual setting, Gasless Flux wire MIG Welds, stick welds, and Lift TIG welds, MIG Aluminum Welds
  • Shield gas for MIG welding: 100% CO2 Fe(Carbon Steel), 75% Ar/25% CO2 Fe(Carbon Steel/Stainless Steel), Flux Wire(Carbon Steel) and 100% Ar AL(Aluminum)
  • 5/8"-18RH gas fitting easy to install and remove
  • Lift TIG welding optional with additional WP-17V-35 TIG torch
  • Suitable for 7018/6011 Electrode for Stick welding

Alternative MIG Setting

  • Synergic MIG Setting
     --provides communication between the power source, feeder, and torch
    --allows for automatic change of the voltage & wire feeding speed by adjusting the amperage or thicknesses
    -- match the welding chart set in the data. Easy works with new welder or users
  • Manual MIG Setting
    --meet the need of an experienced and professional welder by adjusting the voltage & wire feeding speed seperately
    (The amperage will change with the wire speed)

Aluminum MIG Welding

  • The unit is capable of welding aluminum using 100% Argon.
  • Method 1.
  • Equipped with a U-typer Roller(.035"& .045"), special A+ tips and Graphene Liner for the MIG torch, and removing the holding ring on steel liner of wire feeder.
  • Setting should be in Synergic MIG/ Manual MIG mode when welding aluminum.
  • Method 2.
  • Switching to spool gun mode. Install a spool gun and weld in manual MIG mode for Aluminum.

Aluminum MIG Welding

  • The unit is capable of welding aluminum using 100% Argon.
  • Method 1.
  • Equipped with a U-typer Roller(.039"& .045"), special A+ tips and Graphene Liner for the MIG torch, and removing the holding ring on steel liner of wire feeder.
  • Setting should be in Synergic MIG/ Manual MIG mode when welding aluminum.
  • Method 2.
  • Switching to spool gun mode. Install a spool gun and weld in manual MIG mode for Aluminum.

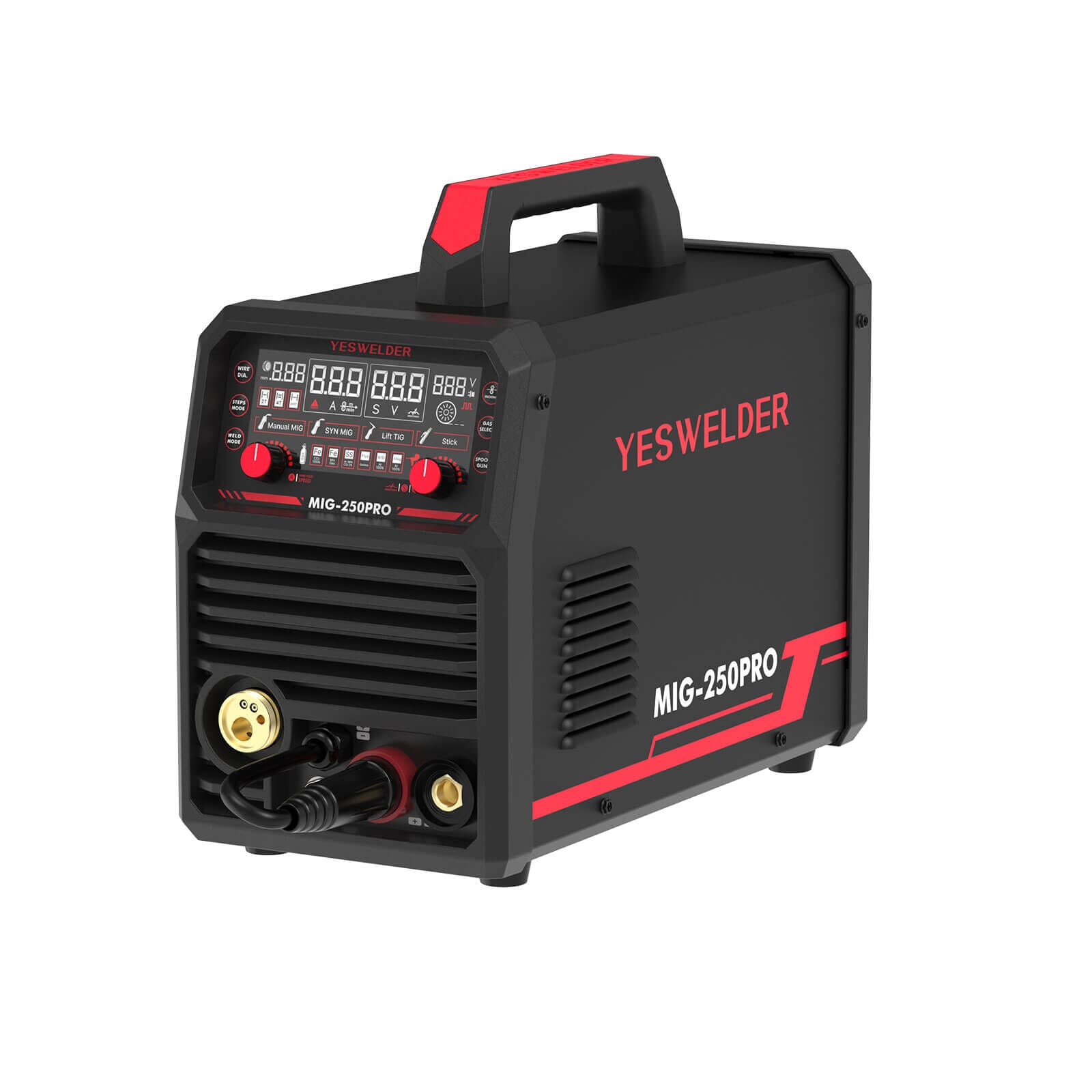

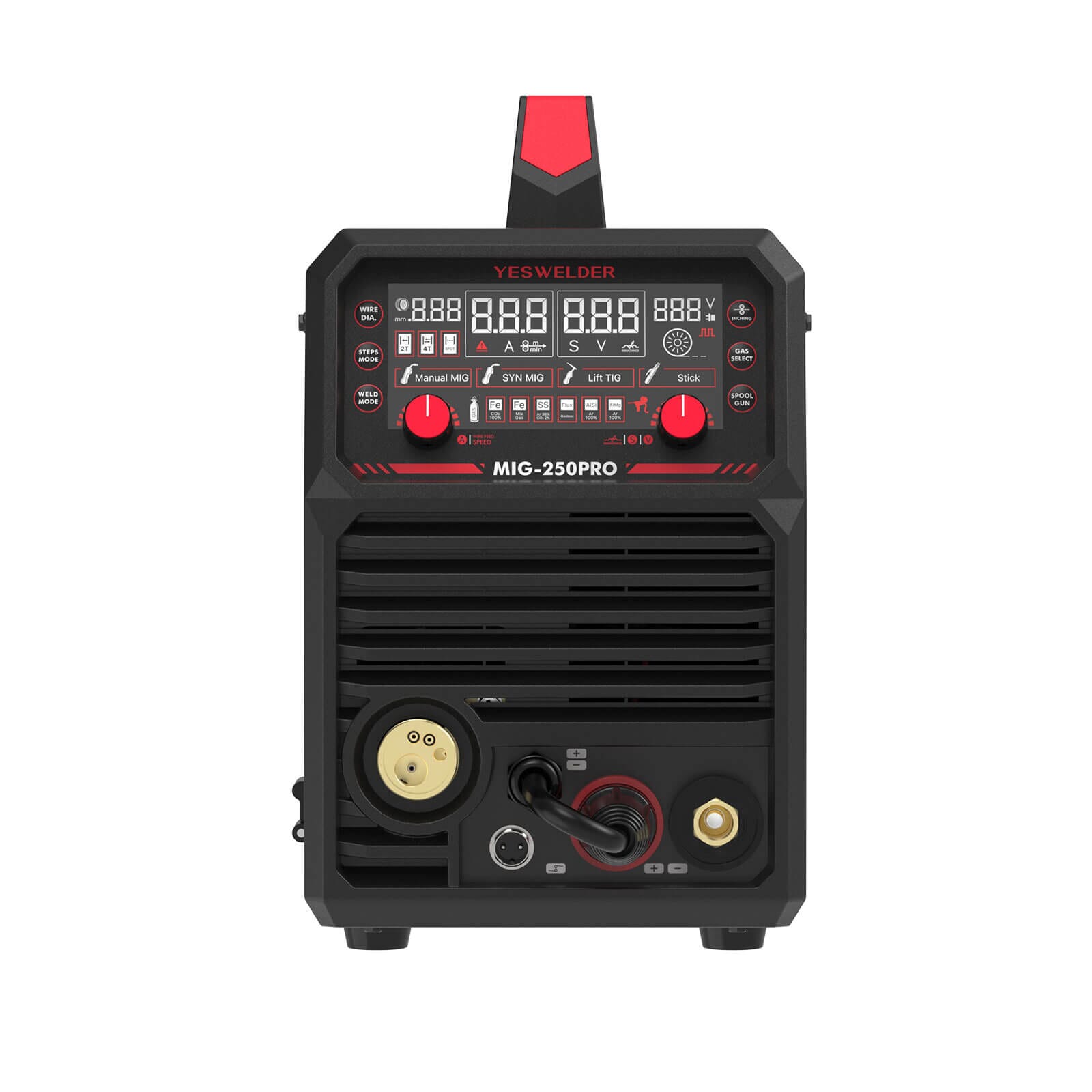

Digital Display Control

  • 1.Welding Mode Selection: Manual MIG, Synergic MIG, Stick, Lift TIG, Aluminum MIG
  • 2.Welding Materials Selection: Carbon Steel/Stainless Steel, Aluminum
  • 3.Menu Selection
  • 4.Wire Diameters Selection:  .023"/.030"/.035"/.045"
  • 5.Value Adjusting Knob:
    Synergic MIG Mode--Allowing automatic change of the voltage & wire feeding speed by adjusting the amperage. Welding Voltage Micro Adjusting -5~+5(-1.5V~+1.5V),Wire Feed Speed can not be adjustable.
    Manual MIG Mode--Adjustable Welding Voltage (12.5-30V); Wire Feed Speed(2-15 m/Min)
  • 6.Manual Wire Feeding

Wire Recommendation

  • Compatible with 2-lbs and 10-lbs welding wire(4" or 8" Wire diameter: D100/D200)
  • Suitable for several welding requirements
  • .023”/.030”/.035" ER70S-6 Mild Steel MIG Welding Wire/Stainless Steel wire
  • .023”/.030”/.035” E71-GS flux core wire for  manual MIG setting; only .035” available in  synergic MIG setting
  • .035”/.045” ER5356 Magnesium Aluminum Welding Wire / ER4043 Silicon Aluminum Welding Wire

Note:
Do not Gas MIG/Lift TIG welding without connecting the gas line.

Product Details

HEAL A CHILD'S SMILE

Quick-selection design

Allowing for easy switch to different welding modes, Gas/Gasless MIG, Stick or Lift TIG

CLEAN WATER FOR LIFE

Synergic/Manual Controlled MIG

Suit the needs of hobbyists and professional welders

STOP THE HUNGER

Various Welding Wire Selection

Equiped with different rollers and  capable of diffenting welding projects

Specification

PRODUCT DETAIL

Product weight: 21.72lb

Product Dimensions: 18.11"*8.27"*13.97"

Supply Voltage: 220V 50/60 Hz

Input Current: 30A

Output Current: MIG 30-250A, 20-225A

Duty Cycle: 60% @225A, 100% @174A

Electrode Diameter: up to 5/32"
Workpiece Thickness: up to 13/64"

Welding Material:  Carbon Steel/Stainless Steel, Aluminum

Protection Class: IP21S

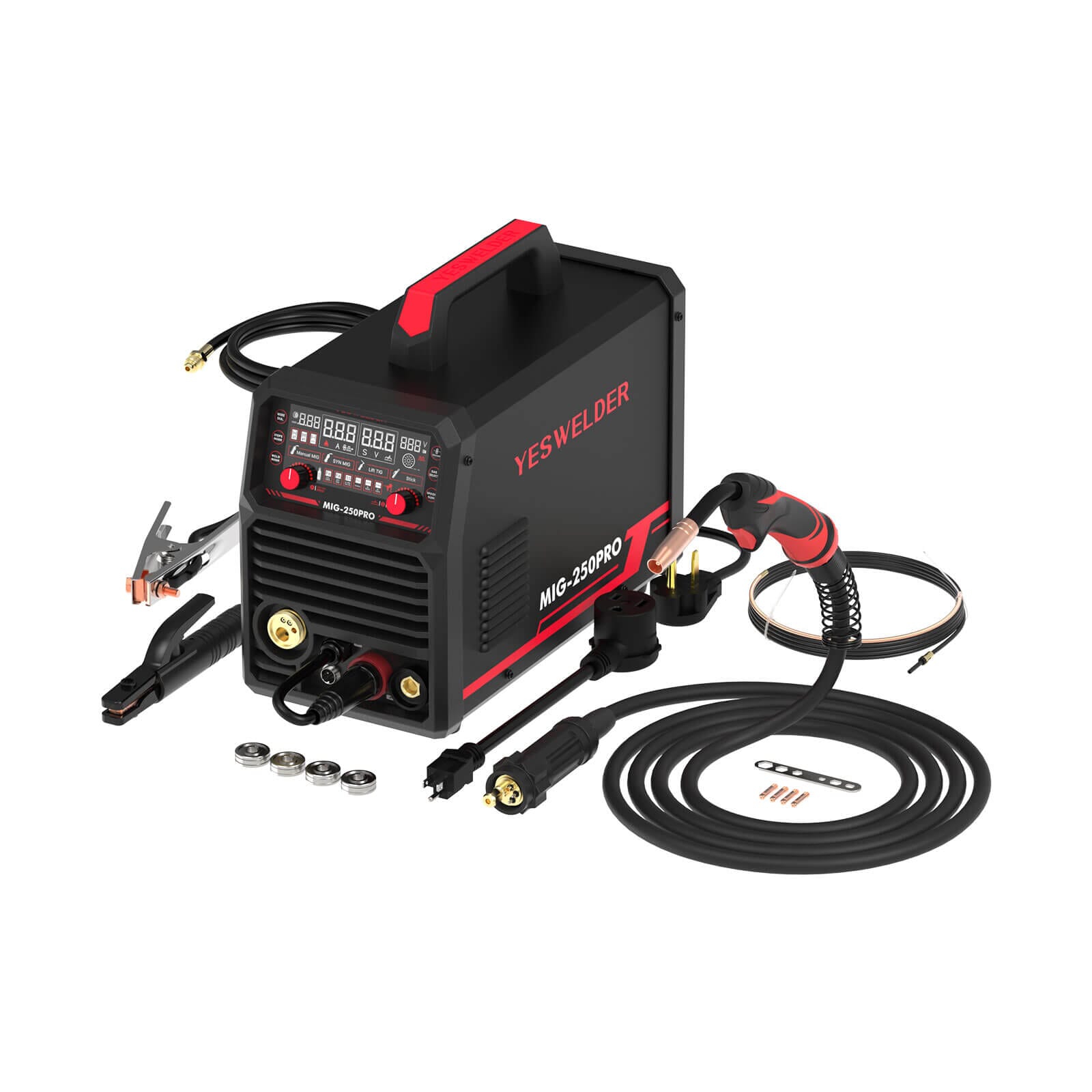

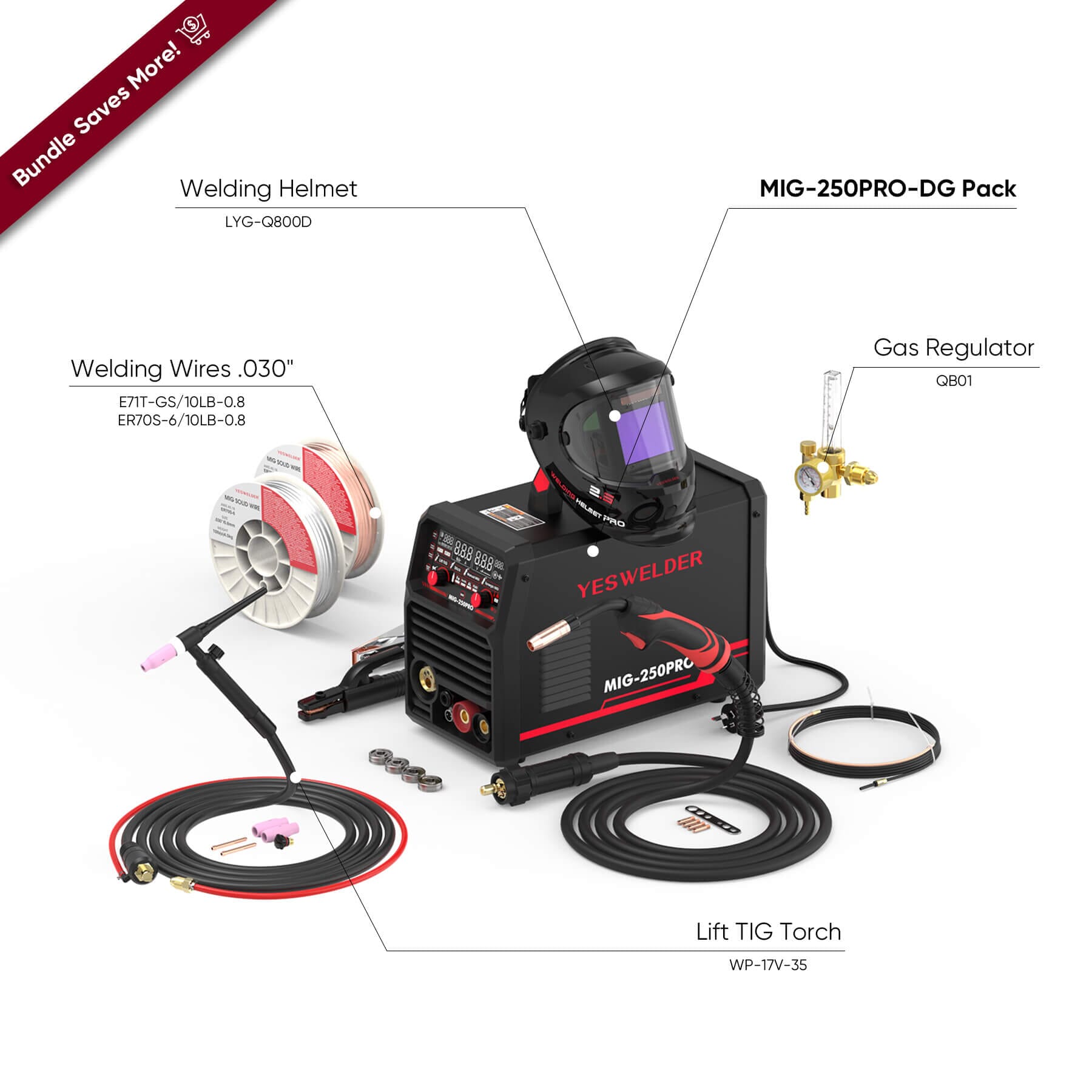

PACKAGE INCLUDES

  • 10' Mig Torch
  • 10' Electrode Holder & Cable
  • 10' Earth Clamp & Cable
  • Gas hose
  • Brush
  • A Graphene Liner
  • 1 Additional .030" & .035" Contact Tip
  • W Knurl Groove Roller: .030"&.035"
  • V Knurl Groove Roller: .023", .030"&.035"
  • U Knurl Groove Roller: .035"&.045"
