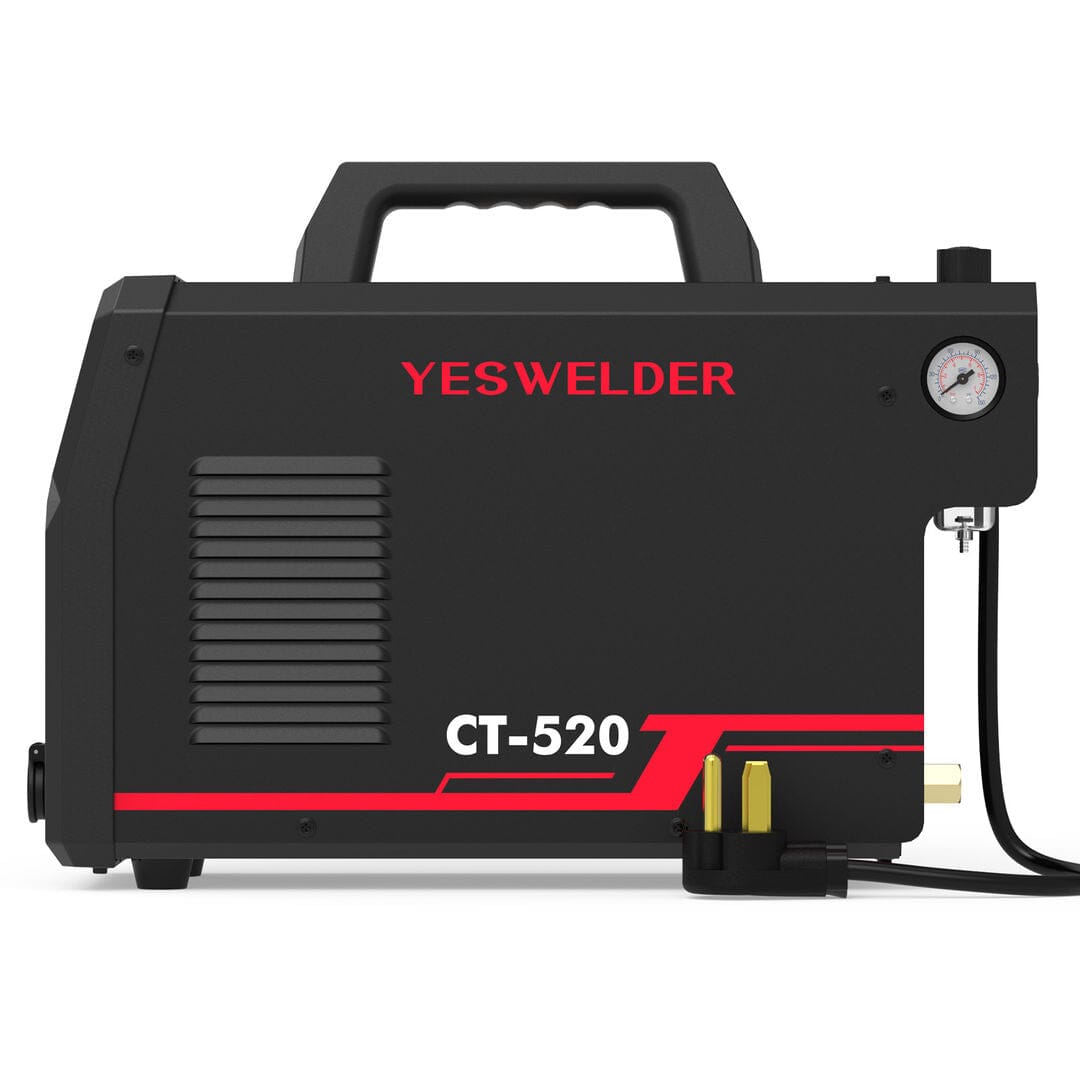

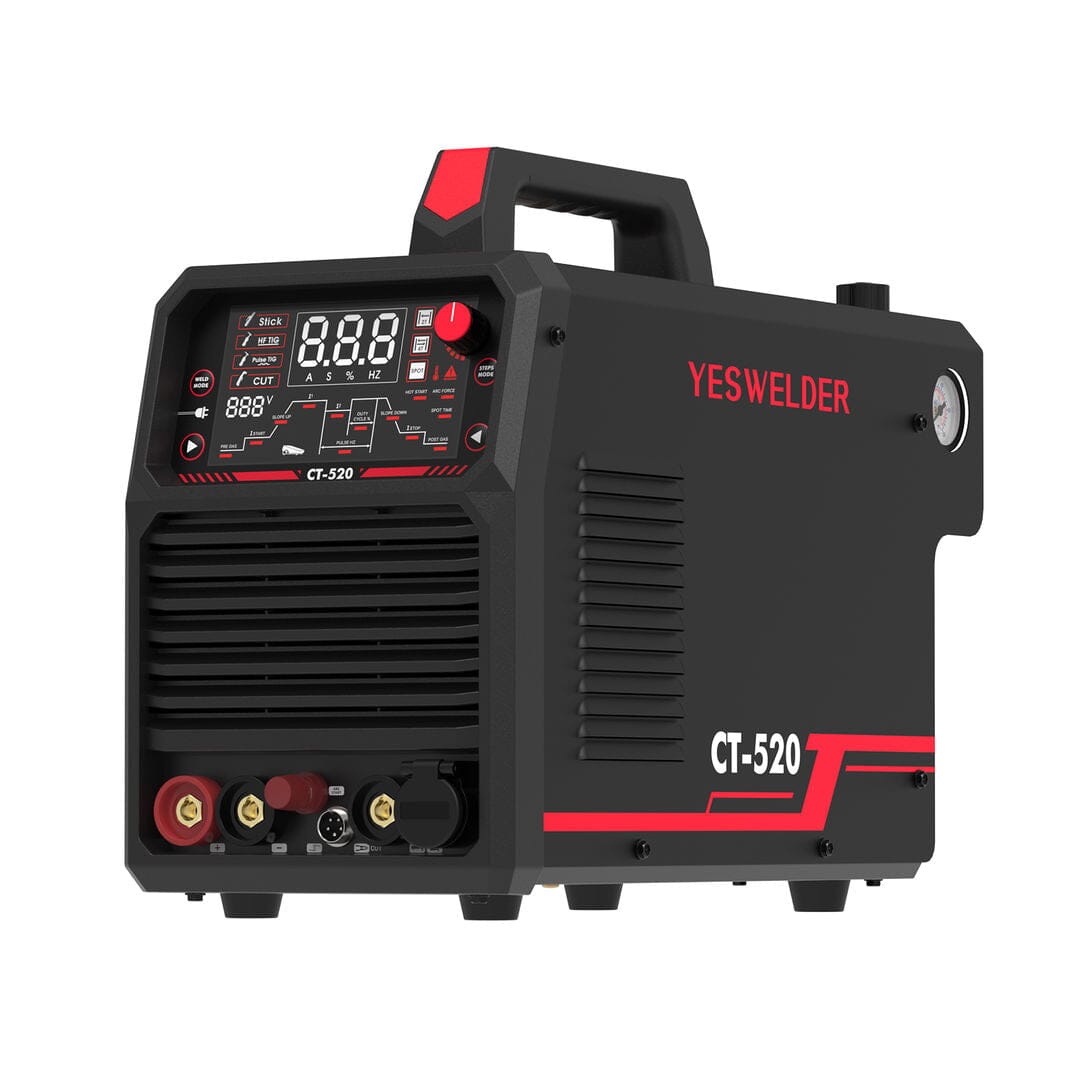

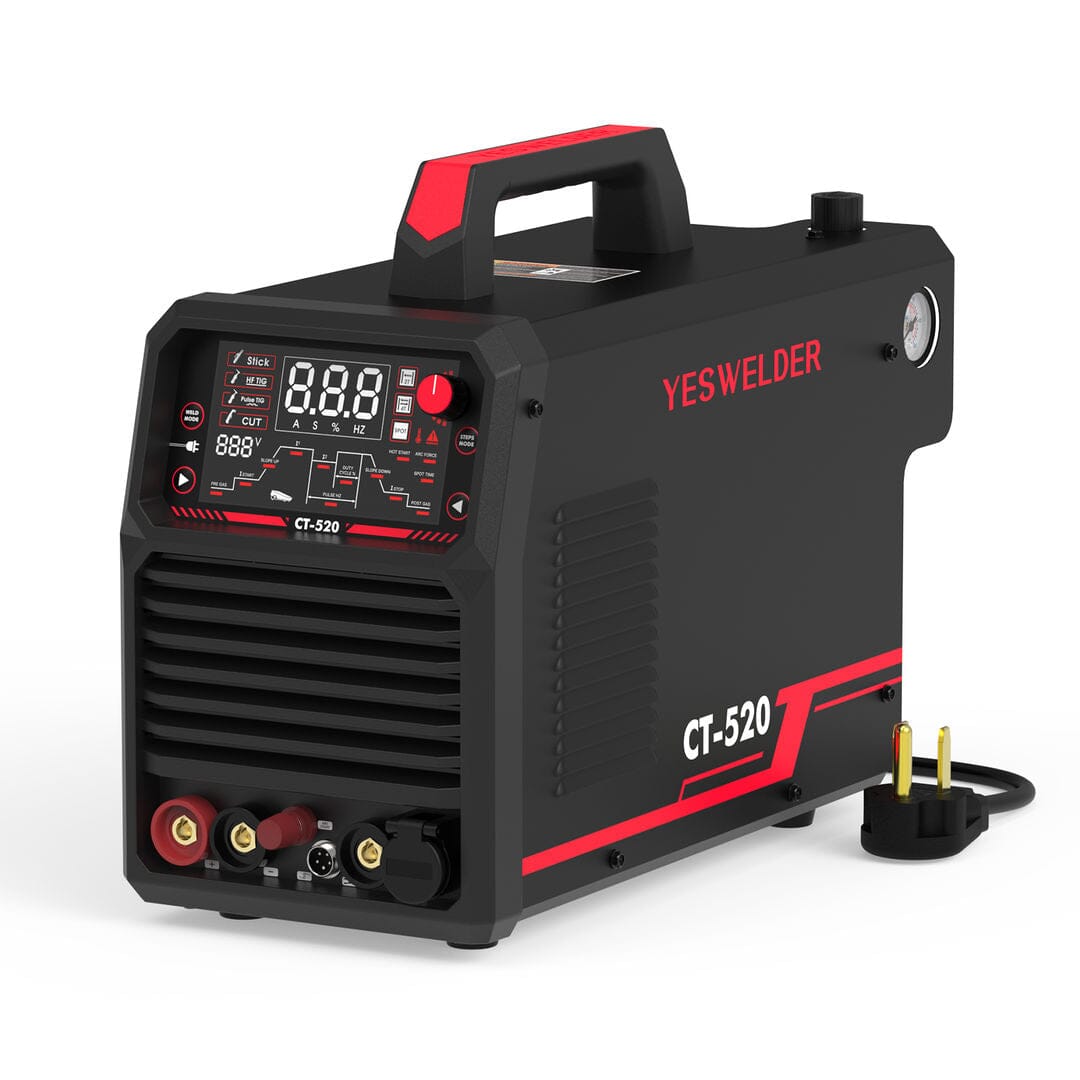

CT-520
Experience 5-in-1 versatility with this compact welder and plasma cutter. Combining Stick, HF TIG, Pulse TIG, Spot Welding, and Non-Touch CUT in one unit, it delivers powerful performance for both pros and DIY users.
FEATURES
- Up to 200A HF DC TIG with high-frequency arc ignition.
- Pulse TIG allows precise control of heat input—ideal for thin or heat-sensitive metals.
- Supports foot pedal for both switch and current control with auto-recognition
- Works in 2T/4T/Spot modes with adjustable spot welding time for greater flexibility.
- Clear Visual Interface: Easily view mode settings, current, voltage, and foot pedal status.
- Multi-Material Compatibility: Welds steel, stainless steel
- Dual Voltage: Works with both 110V and 220V.
Multi-Process Capabilities – All in One Machine
- Stick (SMAW) with Hot Start, Arc Force (adjustable), and Anti-Stick built-in
- HF DC TIG for clean, precise welding with non-touch arc start
- HF DC Pulse TIG for better heat control, ideal for thin and heat-sensitive metals
- Spot Welding Mode with adjustable spot time for fast, repeatable welds
- Plasma Cutting (CUT) with high-frequency non-contact arc ignition

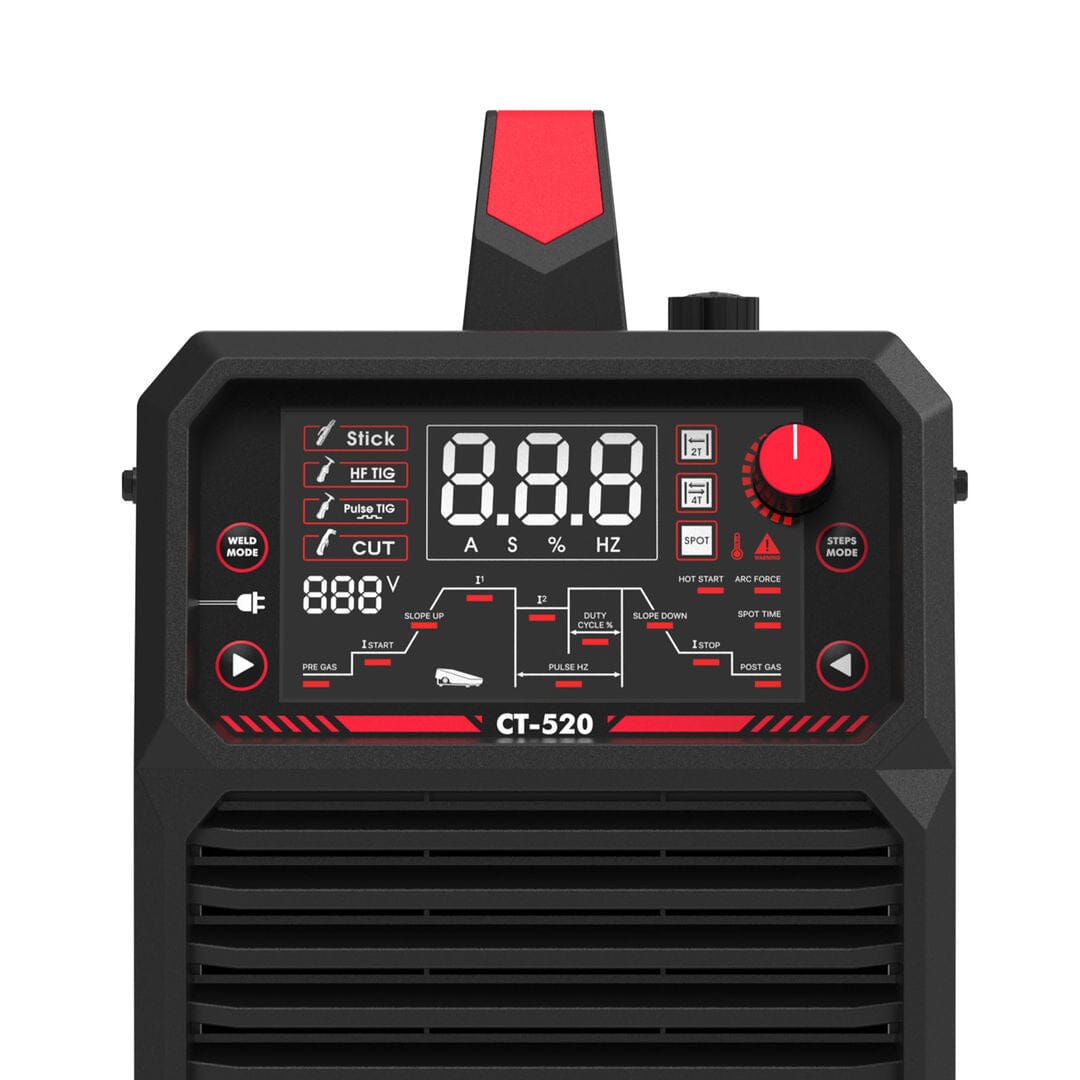

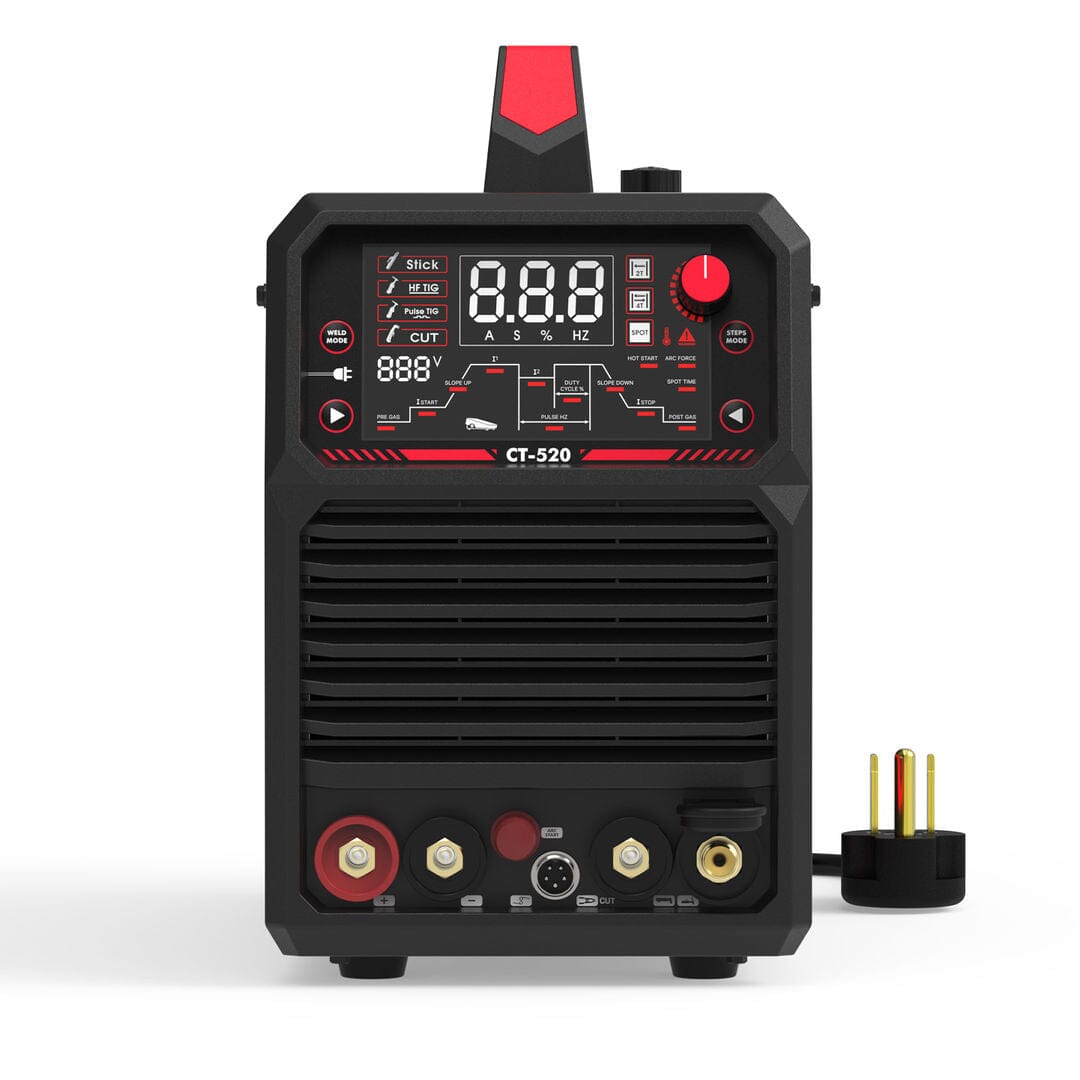

Clear & Modern Interface – Digital Display Panel
Digital Display:
- HD digital screen delivers real-time feedback for amperage, voltage, and selected mode
- Streamlines workflow and enhances control
- Intuitive interface designed for users of all skill levels
Precision at Your Feet
Foot Pedal Control
TIG welding modes support foot pedal control for both switch activation and amperage adjustment
Pedal is automatically recognized upon connection—no manual setup required.
Ideal for precise TIG work, long welds, or position-restricted environments.
Fast, Clean & Versatile
Plasma Cutting
- 20–50A adjustable cutting current
- Clean Cut: 5/16" (8mm) @110V, 1/2" (12mm) @220V
- Max Cut: 1/2" (12mm) @110V,3/4" (20mm) @220V
- Uses safe compressed air
- Supports cutting steel, stainless steel, aluminum, copper, and more
- Features HF non-touch arc start, and adjustable pre-flow/post-flow gas control for torch protection
Enhanced
Stick Welding Performance
Hot Start: Easy arc ignition even on dirty or rusty metal.
Arc Force (Adjustable): Maintains arc stability under different welding conditions.
Anti-Stick: Prevents electrode sticking for smoother operation.
Advanced
HF TIG & Pulse TIG
- HF Non-Touch Start – Smooth arc starts, no tungsten contamination
- Pulse TIG Mode – Better heat control, ideal for thin or sensitive metals
- Up to 200A Output – Handles various thicknesses with ease
- 2T / 4T / Spot Modes – Flexible control for different welding needs
- Adjustable Pre/Post Gas – Protects weld pool and tungsten
Accessories
- Weld Machine
- Work Clamp
- Electrode Holder

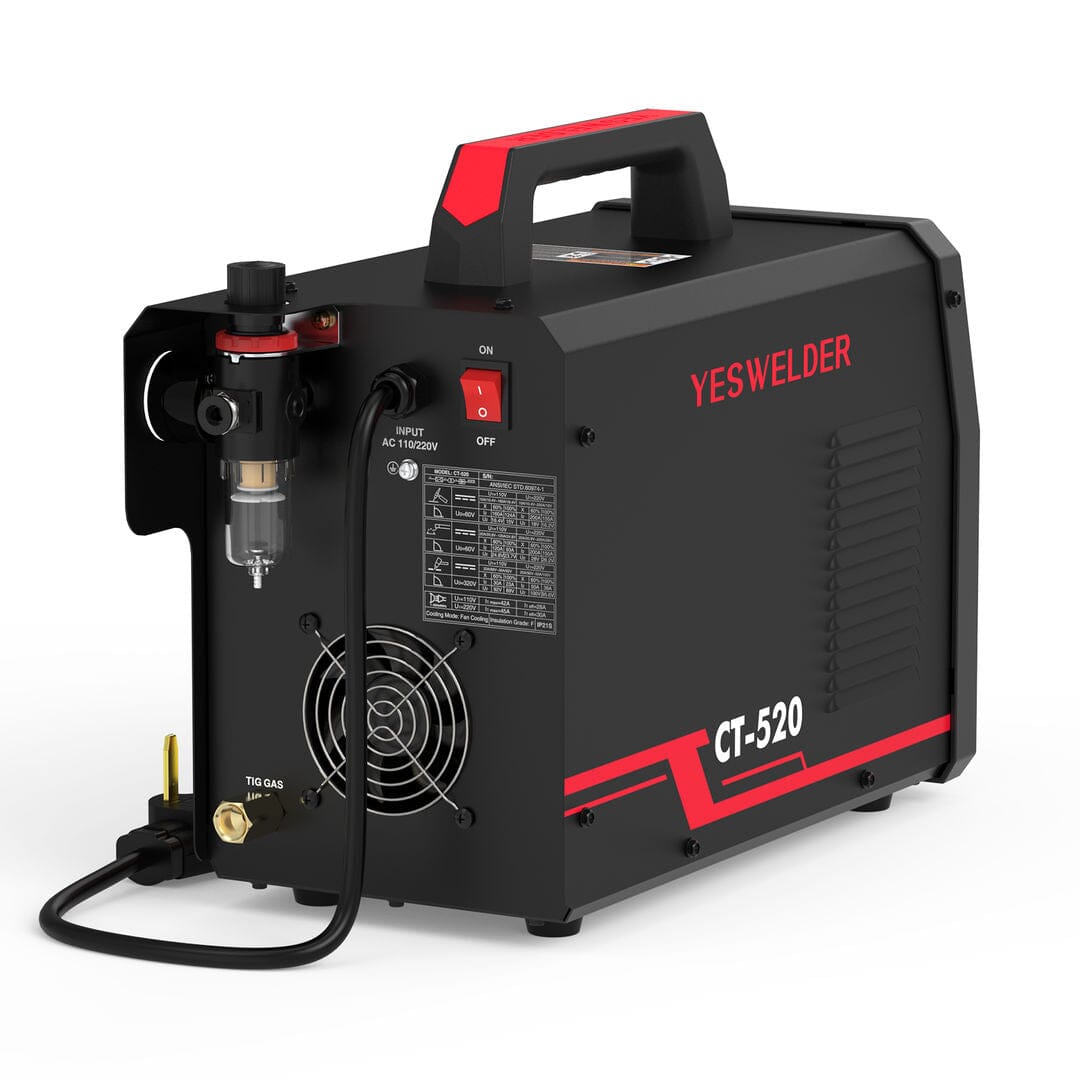

- Air Filter Built-in– With copper fitting, mounted on machine + NPT 1/4” connector.
- Voltage Adapter – 220V to 110V plug
- Gas Hose for Weldig
- Gas Hose for Cutting
- TIG Torch (WP-26) witth M16×1.5 torch connector and 5-pin plug
- TIG Consumables
- Plasma Torch (AG60) witth M16×1.5 torch connector and 5-pin plug
- Cutting Consumables
Specifications
- Product weight: 34.5lb
- Product Dimensions: 21”*16“*15”
- Input Voltage:110V/220V 50/60 Hz
- Input Current: 30A
- Recommended Receptacle:
NEMA 6-50@240V,NEMA 5-30@120V - Welding Material: Carbon Steel/Stainless Steel
- Protection Class: IP21S
