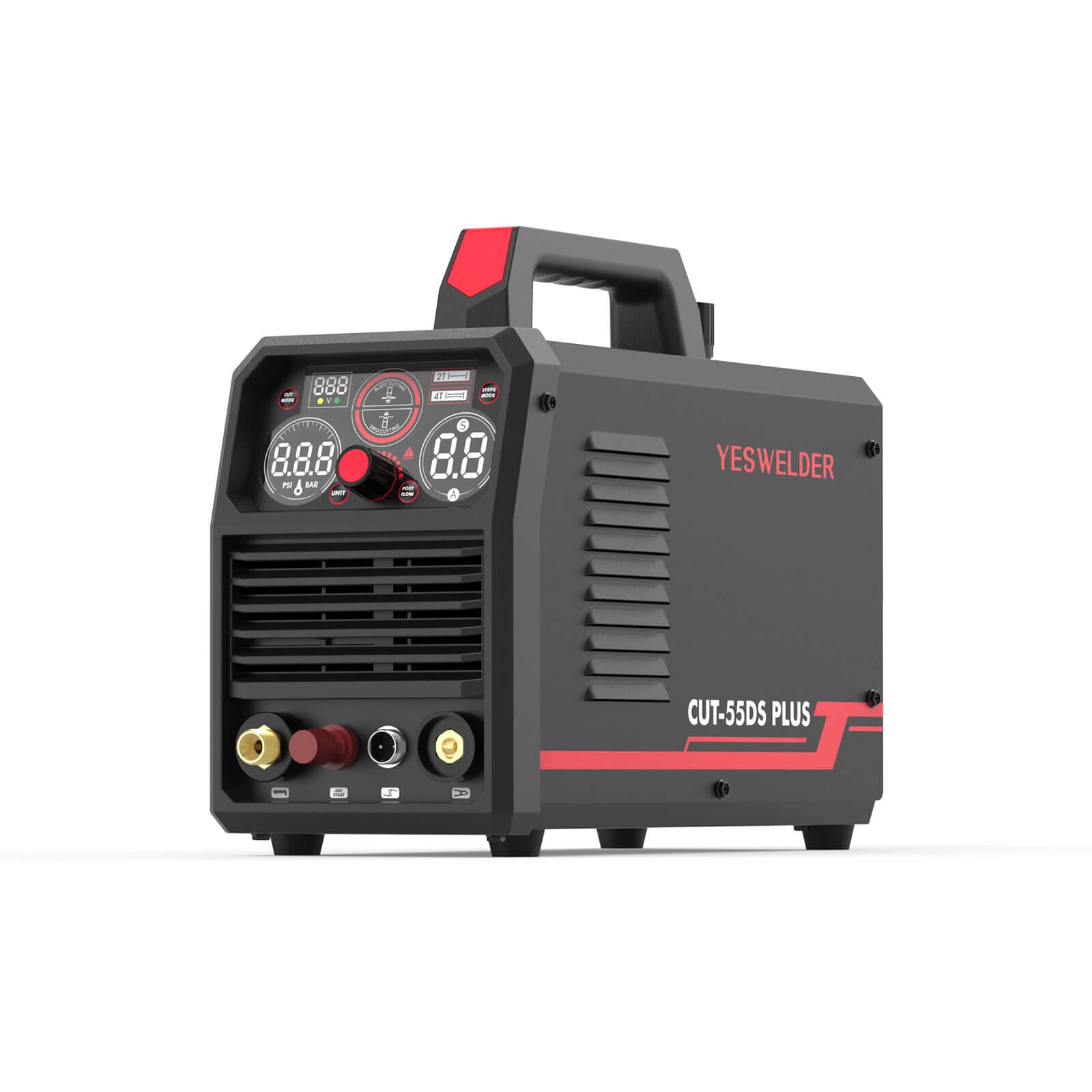

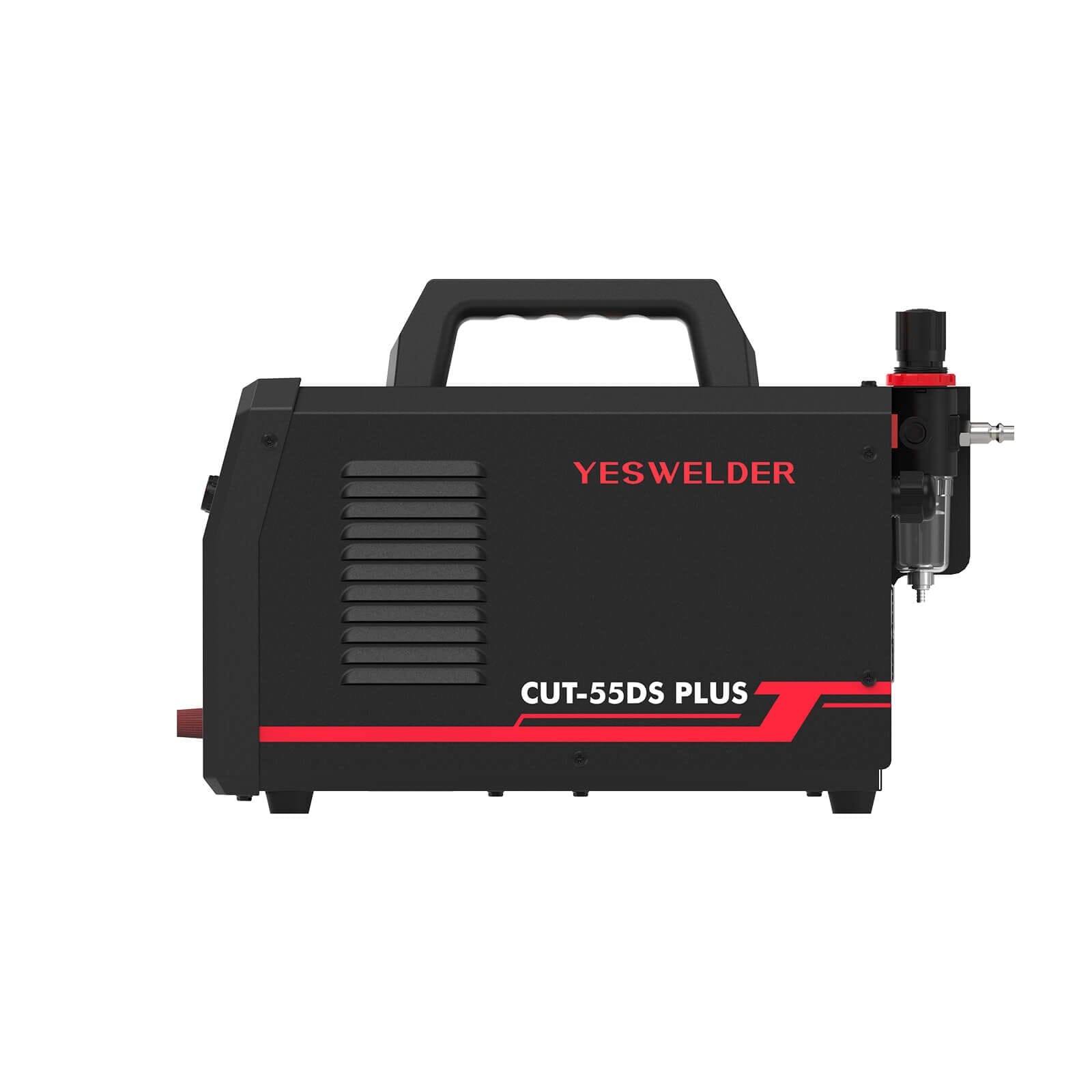

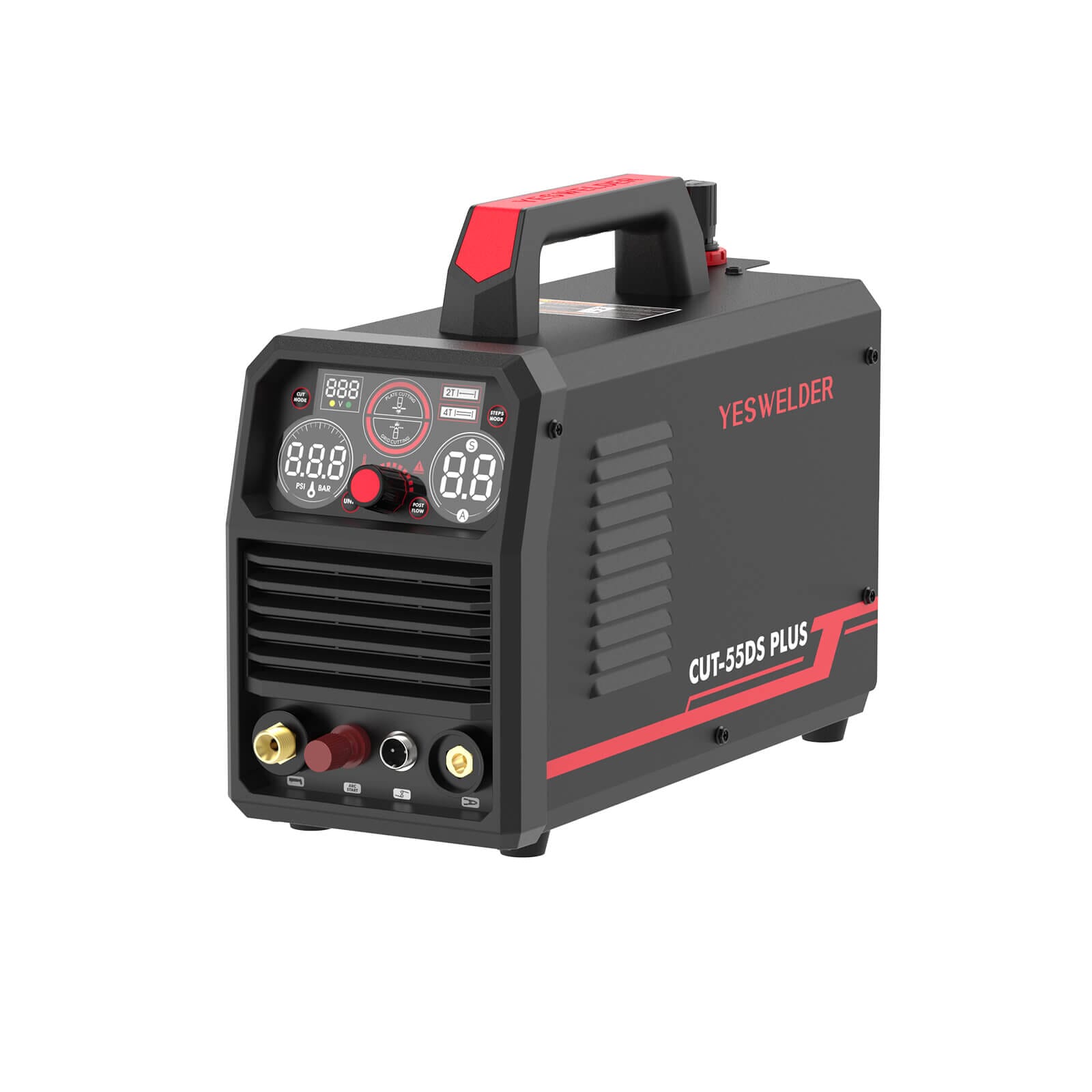

CUT-55DS PLUS Plasma Cutter – High-Frequency Pilot Arc
CUT-55DS PLUS
- Free Contiguous US Shipping Over $150
- In stock, ready to ship
The CUT 55DS-PLUS Plasma Cutter is engineered for precision and efficiency in any metalworking environment. Whether you're a professional fabricator or a dedicated DIYer, this machine delivers exceptionally clean, smooth, and stable cuts on a wide range of conductive metals, including stainless steel, alloy steel, mild steel, copper, aluminum, and more. Its high-frequency pilot arc technology lets you start cuts without direct contact, making it ideal for tackling painted, rusted, or uneven surfaces while extending the life of your consumables.
Key Features
- Clean Plate & Grid Cutting: Achieve straight, clean cuts on solid plate with minimal slag. Specially optimized for cutting expanded metal, mesh, and gratings without snagging or losing cut quality.
- High-Frequency (HF) Pilot Arc: The non-touch ignition allows you to cut through painted, rusty, or textured surfaces effortlessly. This not only increases versatility but also protects your torch tip for longer consumable life.
-
Ready to work anywhere. Plug into standard 110V outlets for lighter jobs or switch to 220V for maximum power in the workshop or on-site.
-
A heavy-duty, professional-grade torch designed for stability and precision, ensuring reliable performance and clean cuts every time.

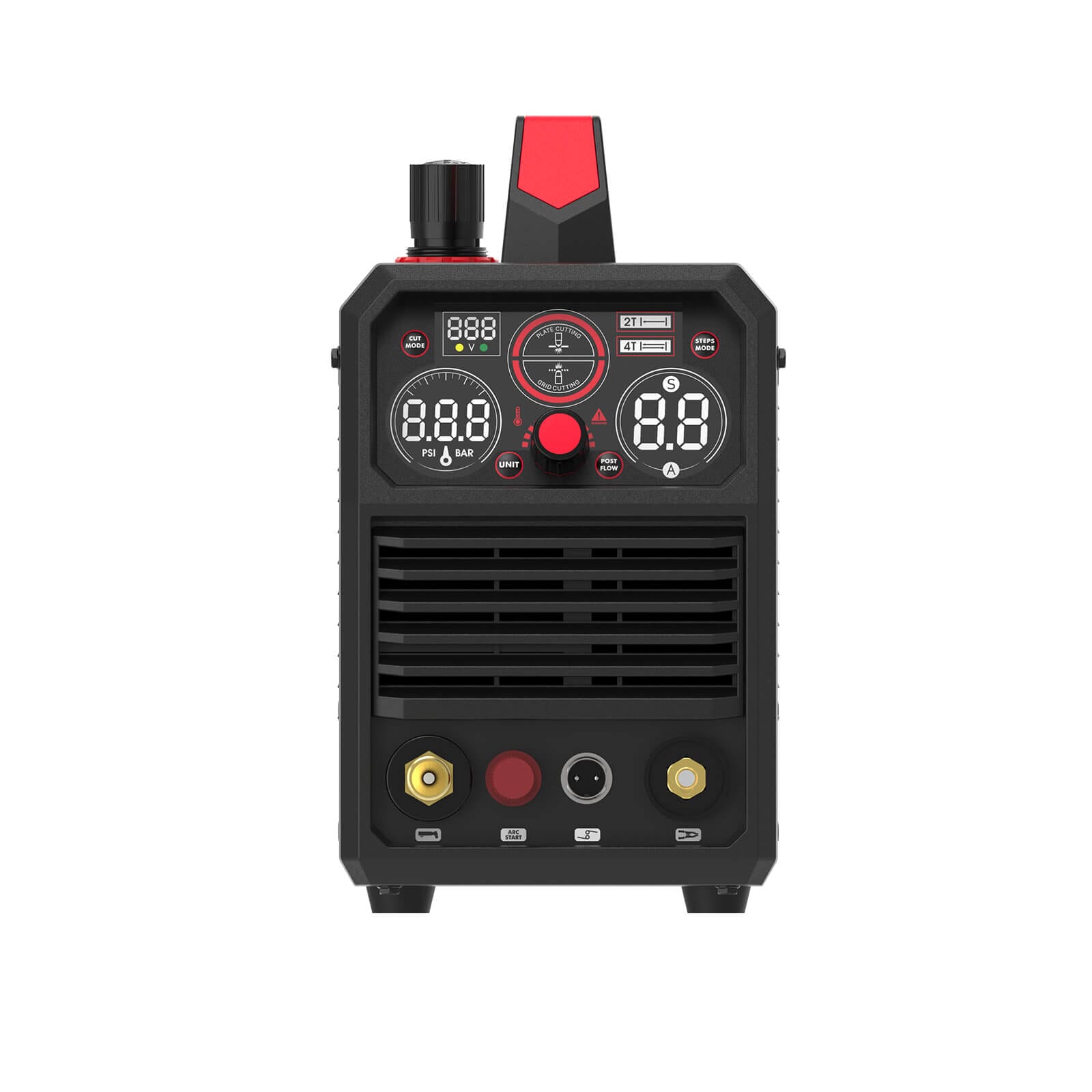

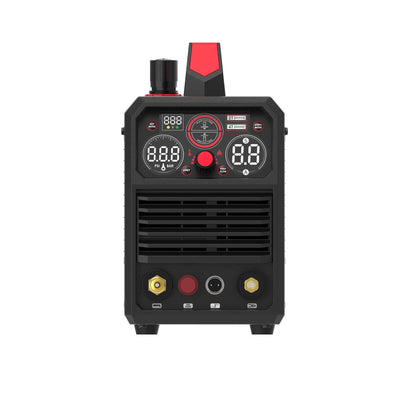

- The intuitive digital panel provides real-time feedback on voltage, current, and air pressure. Instant error code display simplifies troubleshooting and ensures optimal machine settings.
- Built-in Safety: Overload and overheat protection, with IP21 water-resistant design for safe operation.
Cutting Performance
- 10mm (3/8") @ 110V
- 12mm (1/2") @ 220V
- 14mm (9/16") @ 110V
- 16mm (5/8") @ 220V
Output Current: 55A for deep, clean cuts.
Pilot Arc Technology: Ensures efficient cutting on rough or painted surfaces without contact.
The CUT 55DS-PLUS is a versatile workhorse built for:
- Metal Fabrication Shops
- Automotive Repair and Restoration
- Pre-weld Beveling and Joint Preparation
- Maintenance, Repair, and Operations (MRO)
- Farm and Equipment Repair
- Creative Metal Art and DIY Projects

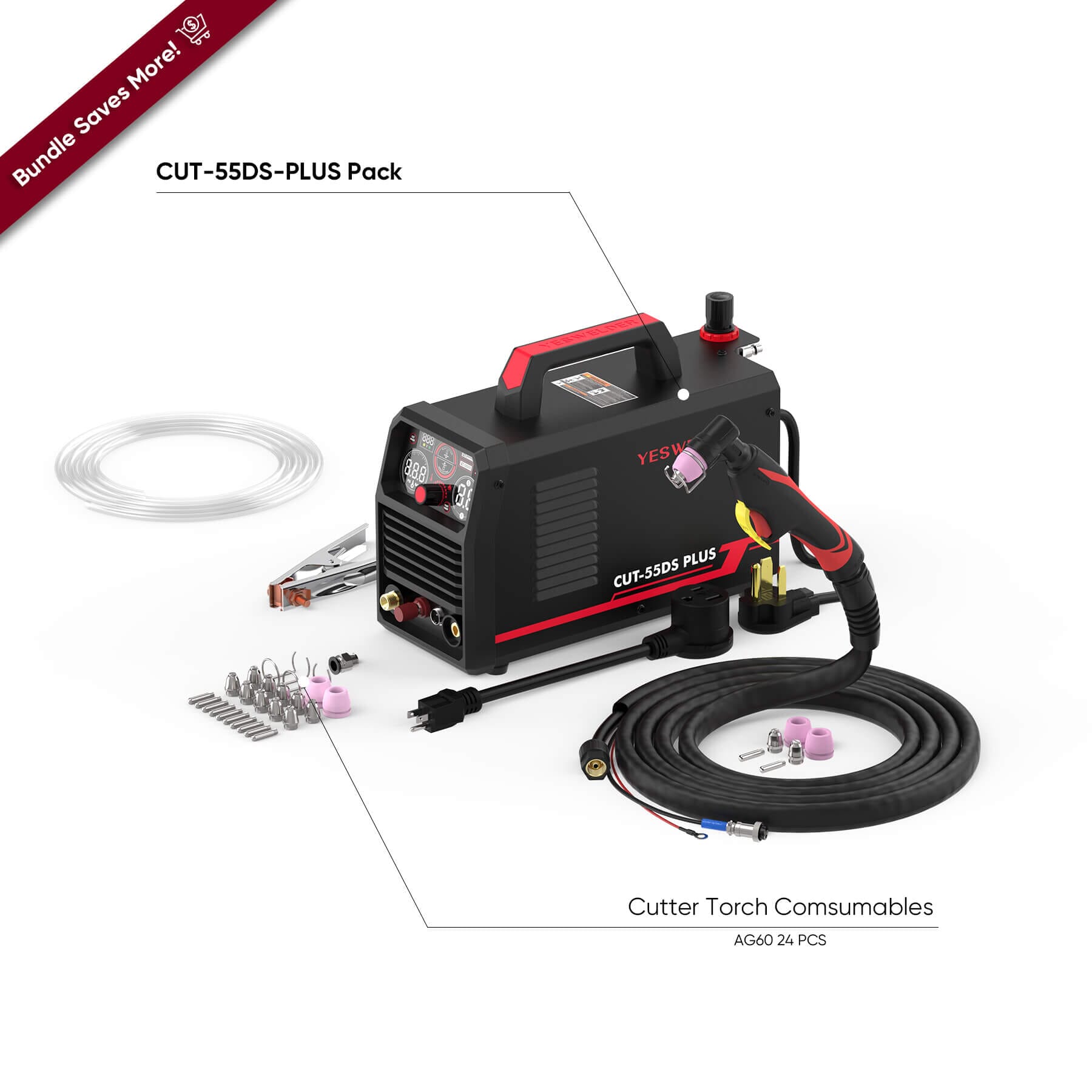

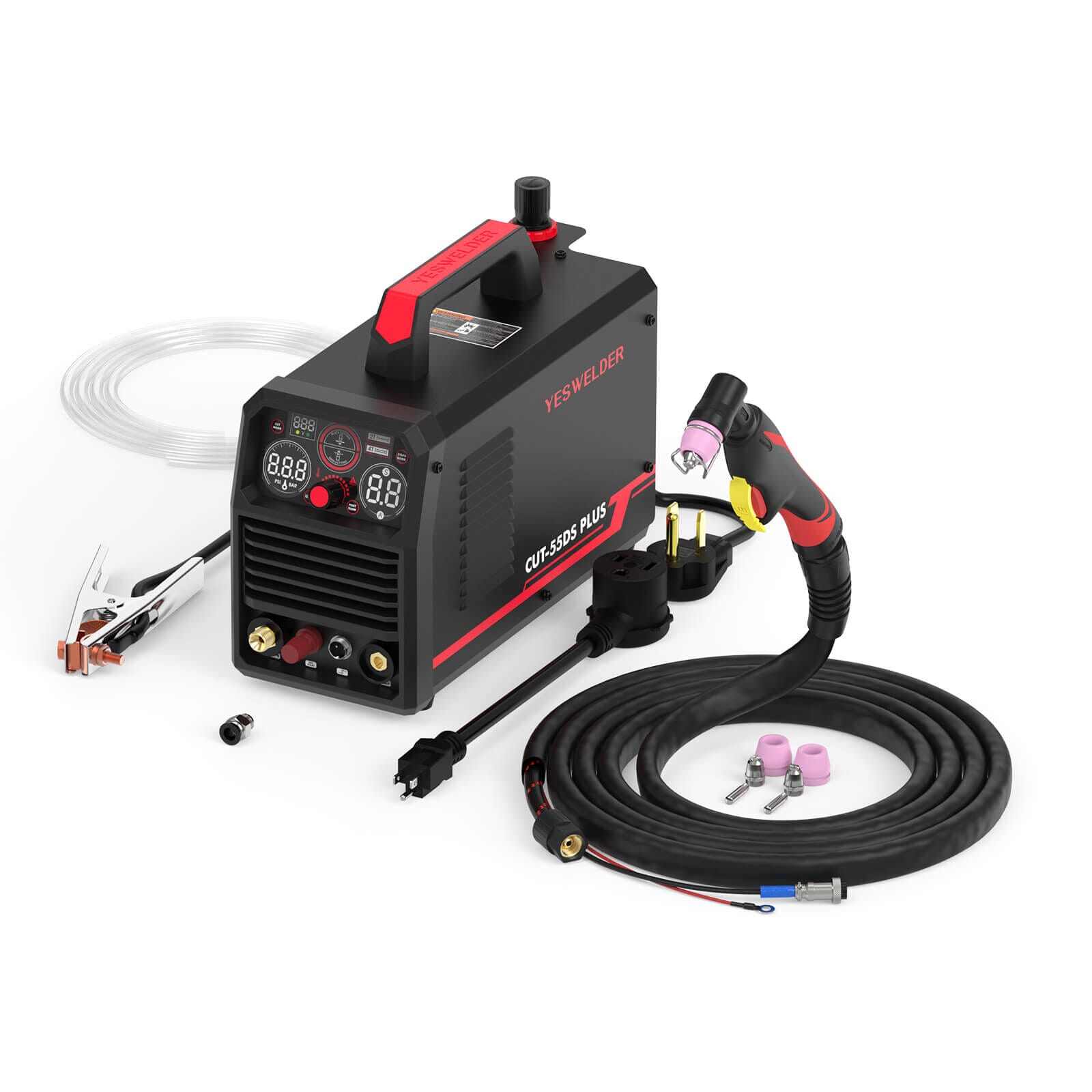

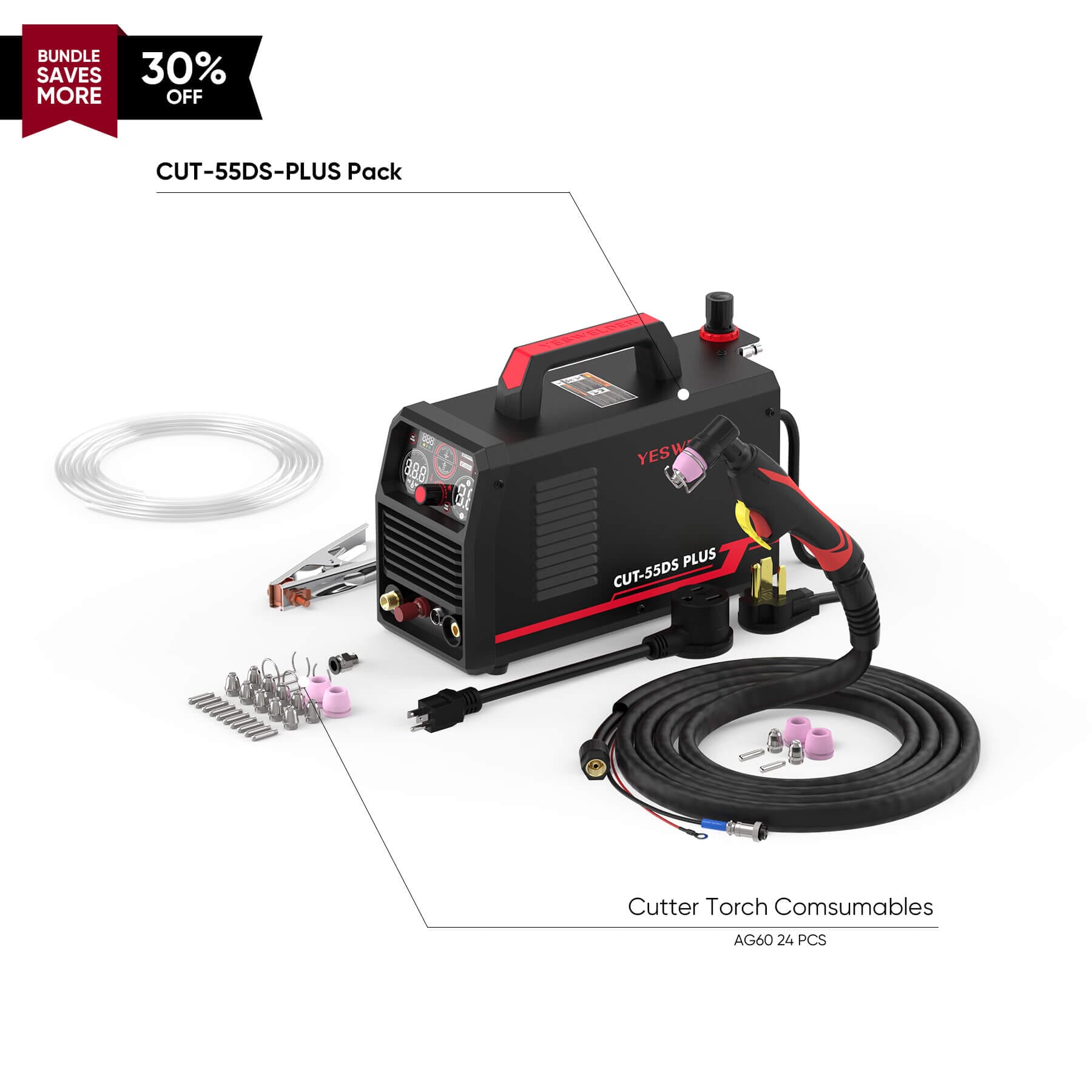

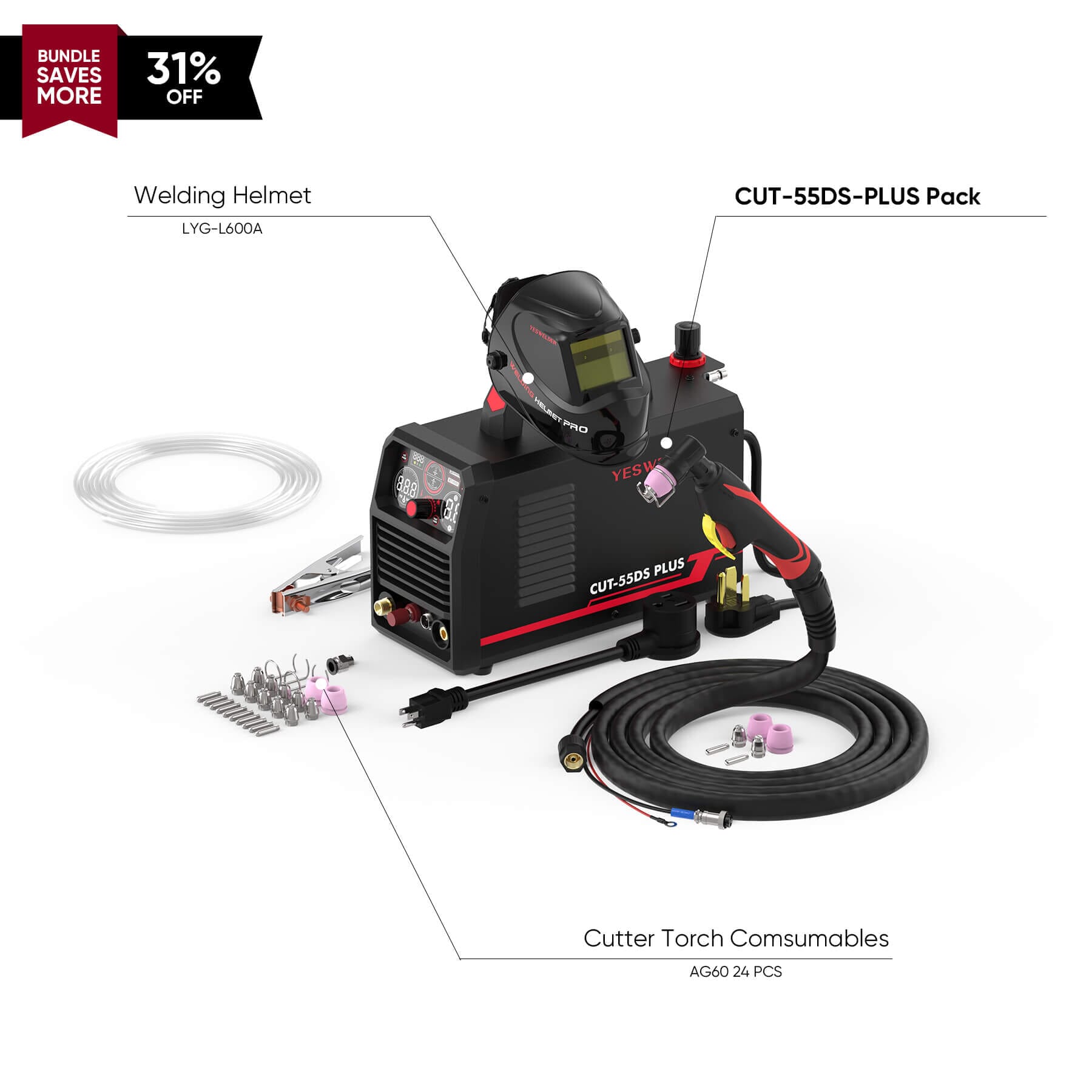

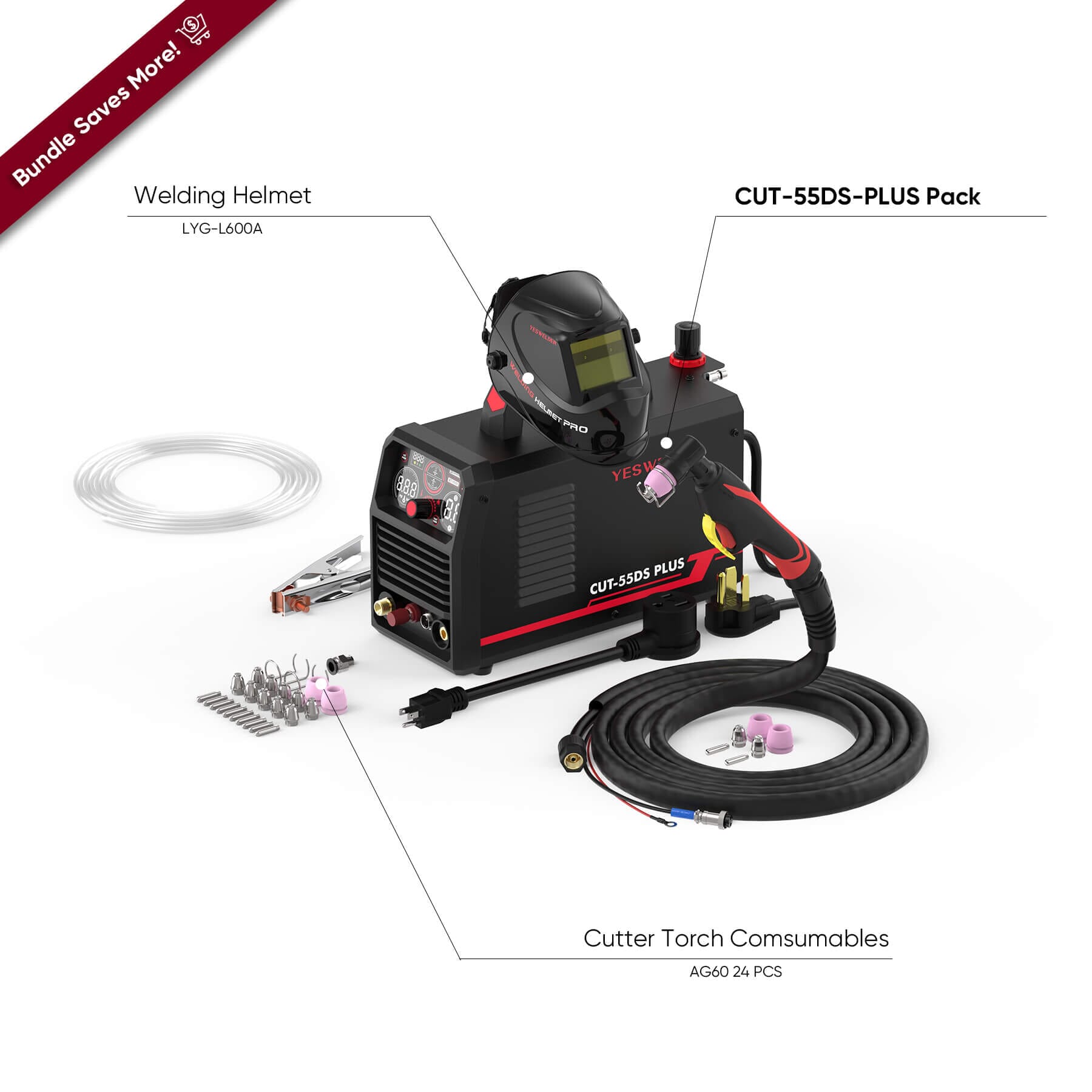

What's Included
- CUT 55DS-PLUS Plasma Cutter Unit
- AG60 Plasma Cutting Torch
- Work Clamp with Cable
- Power Adapter Cord (220V to 110V)
- Air Hose

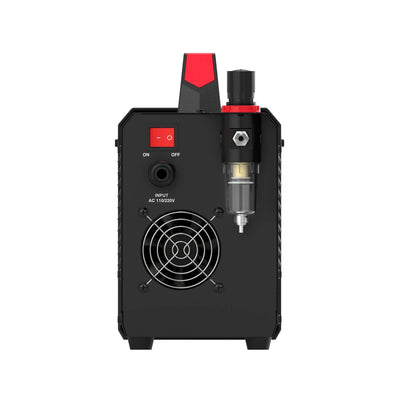

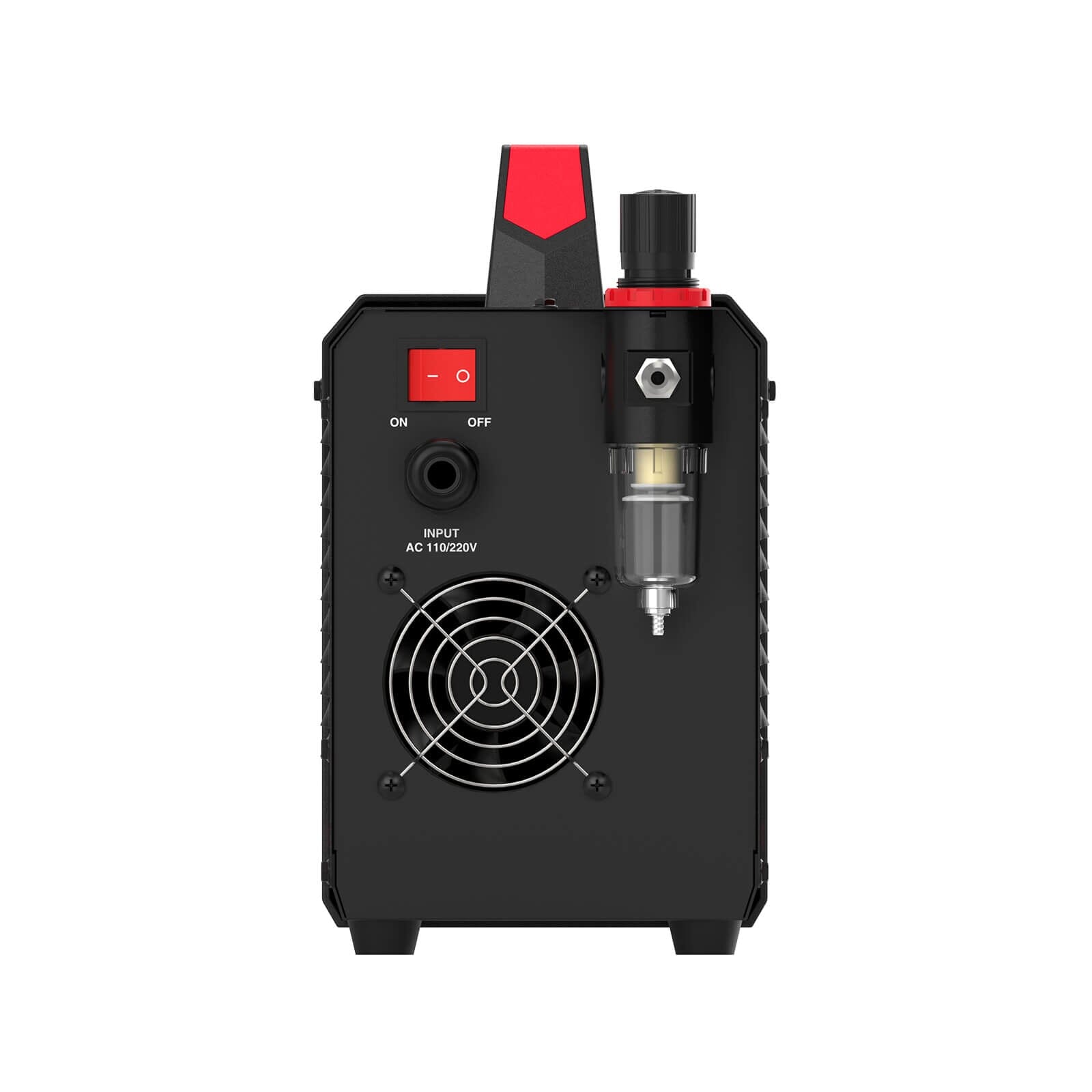

- Built-in Air Compressor Filter(Pre-installed)
- Spare Consumables Kit for Torch
- Additional PC10-02 Air Connector
- Product weight: 14.48 lbs (6.57 kg)
- Product Dimensions (L x W x H): 16.34" x 6.1" x 8.86" (415 x 155 x 225 mm)
- Input Voltage: 110V / 220V, 50/60 Hz
- Input Current (Min. Requirement): 35A @ 110V / 30A @ 220V
- Recommended Air Pressure: 45-65 PSI @ 110V / 60-90 PSI @ 220V
- Post-Flow Time Adjustment: 10 - 90 Seconds
- Minimum Air Compressor Requirement: 7.5 CFM
- Suitable Materials: Stainless Steel, Alloy Steel, Mild Steel, Copper, Aluminum, and other non-ferrous metals.
- Protection Rating: IP21S
