Plasma arc welding (PAW) produces narrow, deep, and highly repeatable welds by concentrating the arc through a small copper nozzle. It is especially useful for precision seams, thin materials, automated welding, and repeat production.

However, PAW is not the best choice for most DIY welders. The equipment costs more, the torch needs more maintenance, and setup takes longer. For repairs, short runs, and changing projects, TIG is usually more practical.

You cannot use a standard plasma cutter for PAW. Only a machine with a dedicated PAW mode and compatible torch can do it. This guide covers the PAW process, main operating modes, applications, and limits. You will also learn how PAW differs from TIG welding and plasma cutting.

What Is Plasma Arc Welding?

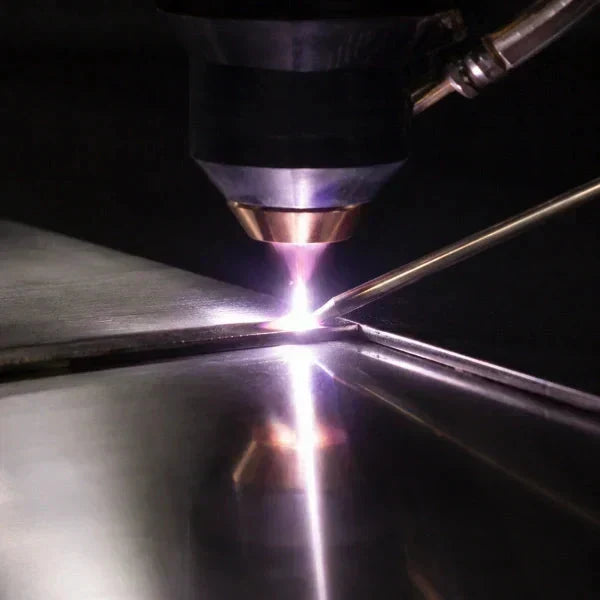

Plasma arc welding is a gas-shielded process with a nonconsumable tungsten electrode inside the torch. A water-cooled copper nozzle constricts the arc into a focused plasma jet.

The arc is narrower and more stable than a typical TIG arc, concentrating heat for a high depth-to-width ratio. PAW normally uses two gas flows:

• Plasma gas passes through the nozzle to form and shape the arc.

• Shielding gas protects the molten weld pool from the atmosphere.

Argon is a common plasma gas. Shielding gas depends on the metal and equipment instructions. Clean, tight joints may be welded without filler wire, called autogenous welding.

How Does Plasma Arc Welding Work?

PAW turns a gas—usually argon—into plasma and forces it through a narrow nozzle:

1. A pilot arc starts between the electrode and copper nozzle.

2. Plasma forms as gas passing through the pilot arc becomes electrically conductive.

3. The main arc transfers from the nozzle to the nearby workpiece.

4. A weld pool develops as concentrated heat melts the joint edges. Filler is added if needed.

5. The weld solidifies behind the moving torch and forms a bead.

PAW, TIG Welding, and Plasma Cutting: What Are the Differences?

These arc processes do different jobs. A standard plasma cutter cannot work as a PAW welder because its torch and gas flow remove metal instead of joining it.

Plasma Arc Welding vs. TIG Welding

PAW delivers consistent results on repeated seams. TIG is easier to own and adapt for DIY projects, repairs, and changing joint designs.

Plasma Welding vs. Plasma Cutting

Plasma welding joins metal while plasma cutting removes it.

The torches and settings differ. A plasma cutter offers PAW only if the machine specifically supports it and includes a compatible torch.

What Are the Main PAW Modes?

PAW has two arc setups and three modes. Arc setup describes where the arc flows while mode controls heat and depth.

Arc Types

• Transferred arc: Runs from the electrode to the workpiece and is used for most PAW welding.

• Non-transferred arc: Stays between the electrode and nozzle; often used for heating, brazing, and spraying.

Operating Modes

Melt-in mode melts the surface. Keyhole mode creates a hole through the material. Molten metal flows around it and joins behind the torch.

Current ranges overlap. Mode also depends on material, thickness, nozzle size, gas flow, travel speed, and equipment design.

Which Settings and Consumables Matter Most?

PAW performance depends on several closely related variables:

• Current controls heat input and penetration.

• Plasma-gas flow shapes the arc and stabilizes the keyhole.

• Shielding gas protects the weld pool and must suit the base metal. Selection follows many of the same principles used for TIG shielding gas.

• Nozzle size affects arc constriction. A worn or damaged nozzle can cause an unstable arc.

• Torch height and travel speed influence heat input, bead shape, and penetration.

• Filler-wire feed affects bead reinforcement and gap filling.

The electrode must stay centered inside the nozzle. Poor alignment may create a damaging secondary arc.

What Metals and Thicknesses Can PAW Weld?

PAW can weld many conductive metals, especially carbon steel and stainless steel. Nickel alloys and titanium also weld well when gas coverage is good.

Copper is harder to weld because it carries heat away from the joint very quickly. Aluminum requires the right polarity and oxide cleaning, similar to AC TIG welding aluminum. A standard DC setup for steel is not suitable for aluminum.

PAW can weld a wide range of thicknesses. According to TWI, microplasma can weld material down to about 0.1 mm, while keyhole PAW can penetrate up to roughly 10 mm of stainless steel in one pass under controlled conditions. A 10 mm one-pass weld needs close control, so production work is usually kept closer to 6 mm.

Advantages and Limitations of Plasma Arc Welding

Should You Choose PAW or TIG?

For most home shops and general repair work, TIG offers a better balance of cost, flexibility, and ease of use. PAW is a production-focused choice for repeatable precision work.

Common Plasma Arc Welding Applications

PAW is used in many industries that need precise and repeatable welds. Typical PAW applications include:

• Tube and pipe: Longitudinal stainless steel seams

• Aerospace: Aircraft, engine, and turbine components

• Medical manufacturing: Instruments, tools, and device components

• Automotive: Exhaust and fuel-system parts

• Precision manufacturing: Bellows, diaphragms, and sensors

• Electronics: Fine wires, battery tabs, and electrical contacts

• Process equipment: Tanks, vessels, and corrosion-resistant assemblies

Plasma Arc Welding Safety and Setup Tip

PAW has the same main hazards as other arc welding processes. Ultraviolet (UV) and infrared (IR) radiation can harm your eyes and skin. Welding fumes, hot metal, electric shock, and fire are also serious risks. Wear a welding helmet, flame-resistant clothing, gloves, and safety footwear.

Fresh air is also important. Use local exhaust to draw fumes away from your breathing area. Take extra care in confined spaces, where shielding gas can lower oxygen levels.

Before welding, remove flammable materials and inspect the equipment for damaged cables, gas leaks, or cooling problems. Keep the area dry to reduce the risk of electric shock. Follow these welding safety rules for a safer workspace.

Conclusion

PAW is a specialized production process—not a general TIG replacement or a function of a standard plasma cutter.

Before choosing PAW equipment, test the process on the actual part and compare its quality, speed, setup time, maintenance requirements, and total cost with TIG. Choose PAW when production volume rewards consistency. For repairs, prototypes, short runs, and DIY projects, TIG is usually the more realistic choice.

🧐 Frequently Asked Questions

1. Is plasma arc welding the same as TIG welding?

No. Both processes use a tungsten electrode, but the torch designs are different. PAW uses a copper nozzle and separate plasma and shielding gases to create a more focused arc.

2. Does PAW need filler wire?

Not always. PAW can join clean, tight edges without added metal. Filler wire may be needed to fill a gap or meet the welding procedure.

3. Can PAW weld aluminum?

Yes, but the PAW system must be designed for aluminum. Suitable polarity control is needed to remove the oxide layer during welding. Always check the equipment specifications first.

4. Are PAW welds stronger than TIG welds?

Not always. Weld strength depends on the metal, joint design, settings, and weld quality. Both processes can produce strong welds when used correctly.

5. Can a plasma cutter be used for plasma arc welding?

Normally, no. A plasma cutter blows molten metal out of the cut, while PAW keeps molten metal in the joint. Only use equipment with a PAW mode and a compatible torch.
