YWM-160
110V / 220V Dual Voltage / Gas MIG/Gasless MIG/Lift TIG/Stick 4 in 1 / Synergic & Manual MIG Setting /Ideal for 7018/6011 Electrode.
FEATURES
- 4 Functions in 1: Gas MIG /Gasless MIG / Lift TIG / Stick (TIG torch not included)
- Capable of welding carbon steel, stainless steel.
- Synergic Controlled MIG function, suit for new welders and inexperienced welders.
- Suitable for 0.8 & 0.9mm (.030“ & .035").
- Apply to D100/D200 rolls (≤10lbs) of MIG wire.
- Dual Voltage: 110V and 220V, ideal for DIY and industrial use.
- Suitable for 7018/6011 electrode.
- Flexible and non-limited MIG settings make welding easy by allowing adjustment of voltage and wire feeding speed
Quick-Selection Design
Allows for easy switching between different welding modes to meet various welding requirements (Gas/Gasless MIG, Stick, or Lift TIG).
Synergic/Manual Controlled MIG
Suits the needs of hobbyists and professional welders.
Dual Voltage
Capable to run directly on 110V (±10%) 50/60 Hz power or on 220V (±10%) 50/60 Hz with the use of a power adapter.
Smart
MIG Setting
The smart set makes welding easy with pre-set MIG machine settings. Anyone who uses the welder simply chooses the wire thickness and the desired gas, then sets the amperage to match the recommended value for the material thickness indicated in the welding chart. The smart set system will automatically adjust the rest of the settings to achieve an ideal arc condition.
It also allows for fine-tuning the auto-adjusted voltage to ±5V to personalize the settings for optimal results.
Manual
MIG Setting
Experienced and professional welders can set the wire feed speed and voltage as they prefer, with no limitations on wire thickness or the choice of shielding gas.
Colored
Led Screen
It comes with an intuitive and easy-to-use control panel.The color LED screen visualizes the welding process and displays parameters such as shield gas, 2T/4T torch trigger preference, voltage, wire feed speed, and wire diameter.
Wide
Application
This welder is suitable for stainless steel and mild steel, and it is widely used in industrial and home settings.
- Capable welding with 2-lbs and 10-lbs welding wire (4" or 8" wire diameter: D100/D200) for carbon steel and stainless steel workpieceswith or without shield gas in MIG welding mode. Shield gas: 100% CO2, 75% Argon 25% CO2, and 98% Argon 2% CO2.
- With an additional lift TIG torch WP-17V-10, it could weld carbon steel and carbon steel workpiece under suitable TIG filling rod with 100% Argon in Lift TIG welding mode.
- It is capable of welding carbon steel workpieces with E7018, E6013, and E6011 electrodes in stick welding mode.
Wire Recommendation
Compatible with 2-lbs and 10-lbs welding wire (4" or 8" wire diameter: D100/D200).
Suitable for several welding requirements.
.030”/.035" ER70S-6 mild steel MIG welding wire and E71-GS flux core wire for welding carbon steel workpiece
.030”/.035" ER308L stainless steel wire for welding stainless steel workpiece

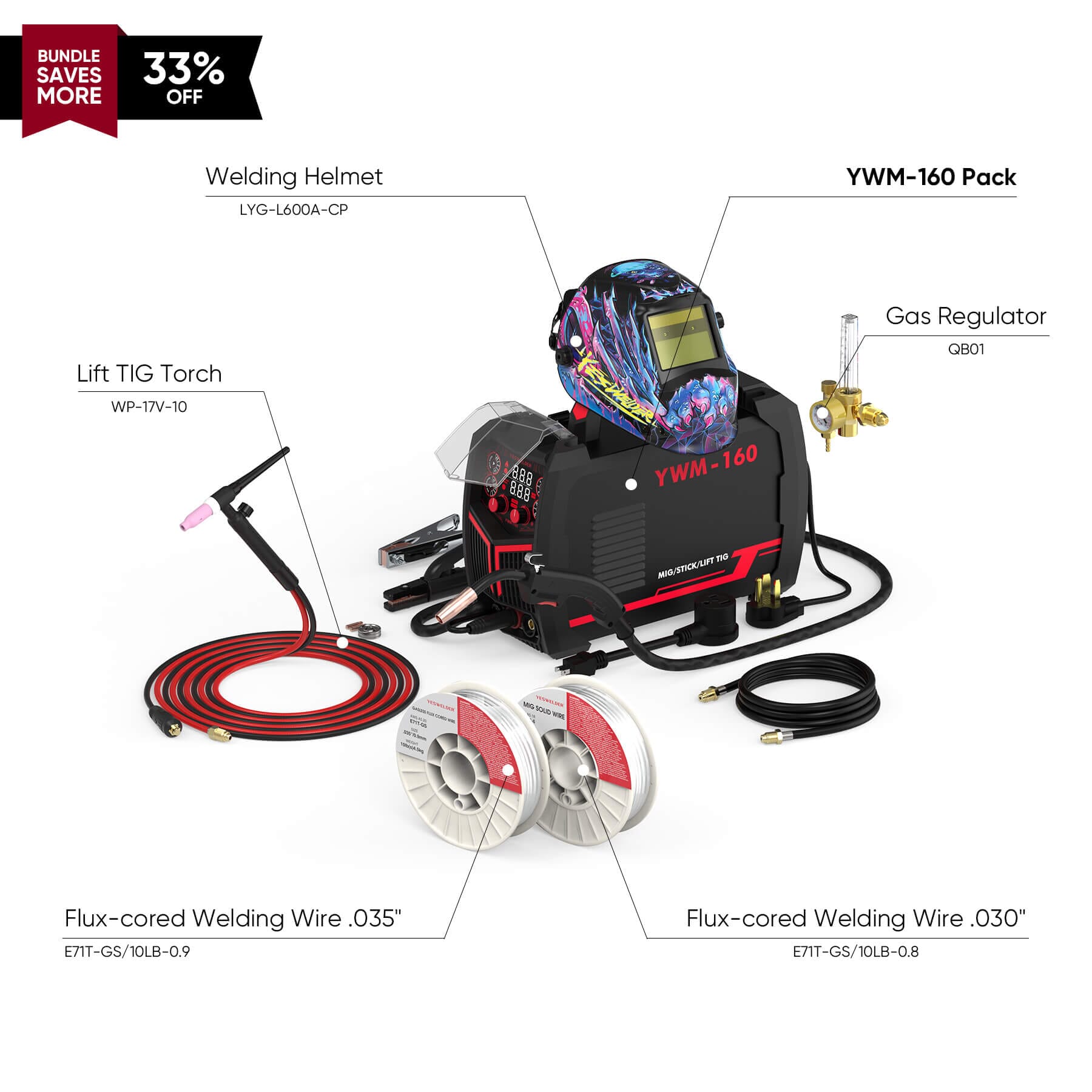

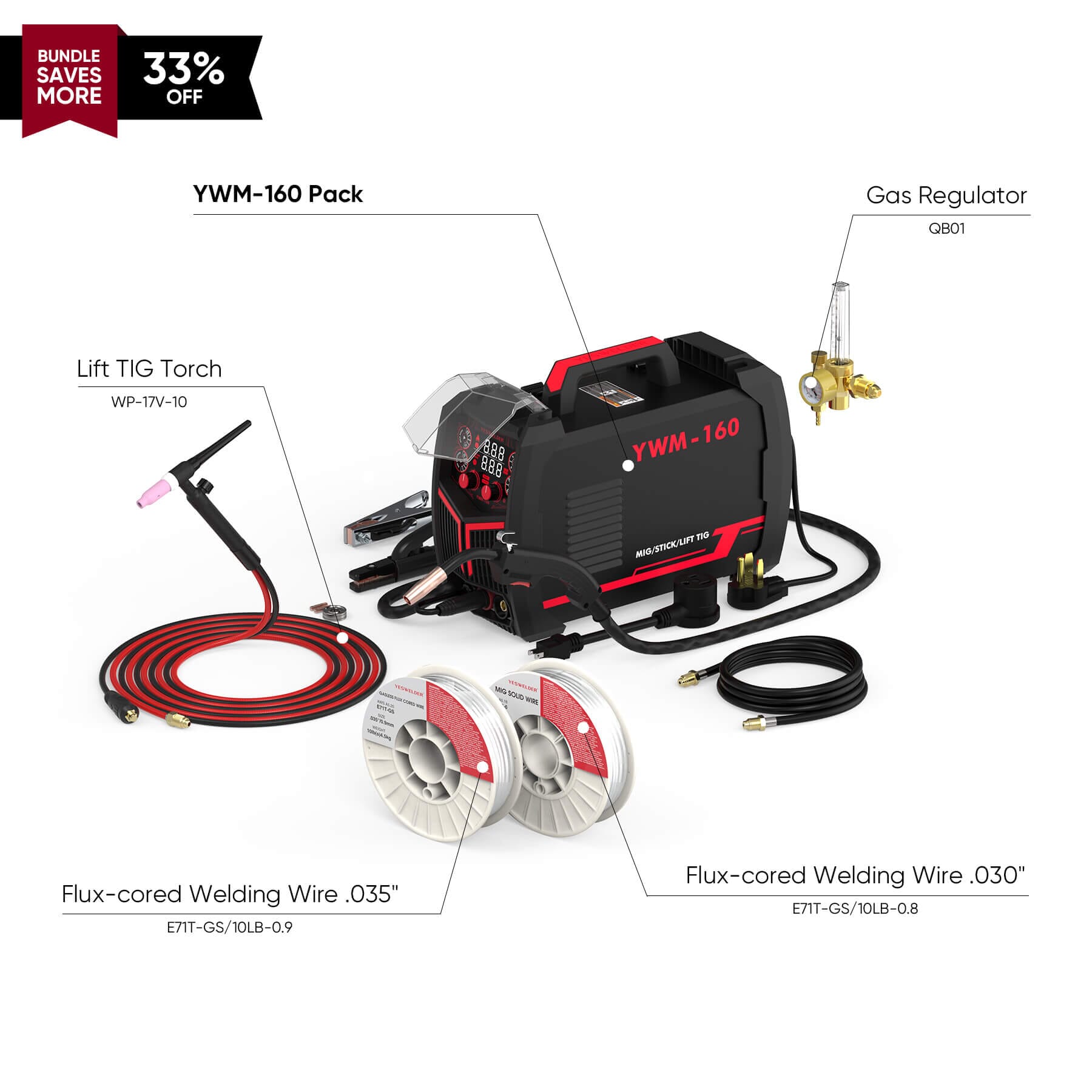

What's Included
- 10' Earth Clamp & Cable
- 10' Electrode Holder & Cable
- .035" W-Groove Roller (Flux Core Wire)
- 10.5' YTQ-M160 MIG Gun
- Gas hose
- Contact Tips .030”& .035” & .030"
- YWM-160 Welder
- 220V->110V Power Adapter
- Manual
YWM‑160 Specifications
Technical details for FIRSTESS YWM‑160 Multi‑Process Welder.
| Category | Feature | Specification |
|---|---|---|
| Power & Output | ||
| Category | Feature | Specification |
| Power & Output | Input Voltage | 110V, 220V ±10% 50/60Hz |
| Power & Output | Processes | MIG, Flux‑Cored, Lift TIG, Stick |
| Power & Output | Output Current Range |
MIG: 40–120A @ 110V, 40–160A @ 220V TIG: 20–120A @ 110V, 20–160A @ 220V Stick: 20–120A @ 110V, 20–160A @ 220V |
| Power & Output | Duty Cycle |
MIG: 60% @ 120A @ 110V; 100% @ 93A @ 110V; 60% @ 160A @ 220V; 100% @ 126A @ 220V TIG: 60% @ 120A @ 110V; 100% @ 93A @ 110V; 60% @ 160A @ 220V; 100% @ 126A @ 220V Stick: 60% @ 120A @ 110V; 100% @ 93A @ 110V; 60% @ 160A @ 220V; 100% @ 126A @ 220V |
| Material & Capability | ||
| Category | Feature | Specification |
| Material & Capability | Material Compatibility |
MIG: Steel, Stainless Steel TIG: Steel, Stainless Steel Stick: Steel |
| Material & Capability | Recommended Thickness |
MIG: 3/16" (5 mm) @ 110V, 5/16" (8 mm) @ 220V TIG: 5/32" (4 mm) @ 110V, 1/4" (6 mm) @ 220V Stick: 3/16" (5 mm) @ 110V, 5/16" (8 mm) @ 220V |
| MIG Specs | ||
| Category | Feature | Specification |
| MIG Specs | Synergic Function | Yes |
| MIG Specs | Spool Gun Compatibility | Not Supported |
| MIG Specs | MIG Wire Type | ER70S‑6, E71T, ER308L |
| MIG Specs | Wire Diameter | 0.023", 0.030", 0.035" |
| MIG Specs | MIG Torch Type | Built‑in MIG Torch |
| MIG Specs | Gas Requirements | 100% CO₂, Mix Gas, 100% Argon |
| TIG Specs | ||
| Category | Feature | Specification |
| TIG Specs | TIG Ignition Type | Lift Start |
| TIG Specs | Foot Pedal Compatibility | Not Supported |
| TIG Specs | Tungsten Type | WT20, WC20, WL20, WL15 |
| TIG Specs | TIG Torch Type | WP‑17V with 10‑25 Connector (Optional) |
| TIG Specs | Gas Requirements | 100% Argon |
| Stick Specs | ||
| Category | Feature | Specification |
| Stick Specs | Stick Electrode Type | E6011, E6013, E7018 |
| Physical & Safety | ||
| Category | Feature | Specification |
| Physical & Safety | Display | LED |
| Physical & Safety | Fan Control | Continuous Fan |
| Physical & Safety | Dimensions & Weight | 17.52" × 6.5" × 11.61", 20.5 lbs |
| Physical & Safety | Protection Features | Overheat, Overcurrent |
Frequently Asked Questions
What welding processes does the YWM-160 support?
The YWM-160 supports Gas MIG, Gasless MIG, Lift TIG, and Stick welding.
Can the YWM-160 run on 110V and 220V?
Yes. The YWM-160 supports 110V and 220V input.
What input current does the YWM-160 require?
The YWM-160 is rated at 50A input current on 110V and 30A on 220V.
What duty cycle does the YWM-160 provide in MIG mode?
In MIG mode, duty cycle is rated at 60% at 120A and 100% at 93A on 110V; on 220V, it is 60% at 160A and 100% at 124A.
Is the TIG torch included with the YWM-160?
No. Lift TIG is supported, but the TIG torch is not included.
What materials can the YWM-160 weld?
The YWM-160 is intended for carbon steel and stainless steel welding.
