3 in 1 Welding Machine
YesWelder MIG welding machine
MIG/Stick/TIG Multi-Process Welder MIG-205DS-B
Dual Voltage DIY Welder
YesWelder MIG-205DS-B Multi-Process MIG Aluminum Welder Hardware > Tools > Welders & Plasma Cutters YesWelder
Multi-function MIG Welder
MIG-205DS-B welder  with helmet  LYG-L500A-OM
MIG-205DS-B welder  with helmet  LYG-M800H-RH
MIG-205DS-B welder  with helmet  LYG-Q800D-ME
MIG-205DS-B welder  with helmet  LYG-19800GK-SM

YesWelder MIG-205DS-B Multi-Process MIG Aluminum Welder

MIG-205DS-B

Sale price359.99
/
Shipping calculated at checkout.

Style
  • March Sale
    Automatic 15% Off
  • Free Continental US Shipping Over $150
  • In stock, ready to ship
  • Inventory on the way

Features

  • Synergic Controlled & Manual Adjustable MIG function, very easy and simple operation.
  • 4 Functions in 1 of Gas MIG /Gasless MIG / Lift TIG / Stick
  • Aluminum MIG welding available, spool gun compatible.
  • Can take up to 0.9mm(.035") MIG solid wire(Gas MIG) and 0.9mm(.035") MIG FLux wire(Gasless MIG)
  • Apply to D100/D200 rolls (<10lbs) of MIG wire
  • Suitable for welding carbon steel and aluminum.

Function

Choosable MIG Setting

  • Synergic MIG Setting-provides communication between the power source, feeder, and torch--allows for automatic change of the voltage & wire feeding speed by adjusting the amperage or thicknesses.  Easy works with new welders or users.
  • Manual MIG Setting--meet the need of an experienced and professional welder by adjusting the voltage & wire feeding speed separately.

Gas MIG Welding

  • Can handle 2 lb and 10 lb rolls of wire.
  • Shield gas:100% CO2 for steel, 25% CO2, 75% Argon for carbon steel, 2% CO2, 98% Argon for stainless steel and 100% Argon for aluminum.
  • Recommended to use .030" (0.8mm) &.035" (0.9mm) ER70S-6 carbon steel welding wire; .035"&.045" ER4043 or ER5356 aluminum welding wire.

Gasless MIG Welding

  • Can handle 2 lb and 10 lb rolls of wire.
  • Suitable for carbon steel welding.
  • Recommended to use .030" (0.8mm) &.035" (0.9mm) E71T flux core welding wire.
  • The default setting is .035" (0.9mm) in Synergic MIG mode.

DC Stick Welding

The YESWELDER MIG-205DS-B can easily run stick electrodes. A stinger and ground clamp is included with your machine for this process. This unit can weld with 7018/6011 electrodes up to 5/32"

  • Smooth welding and fast burning.
  • Capable of welding with 7018/6011 electrodes.
  • Electrode up to 1/8"@110V, 5/32"@220V.
  • Apply to 9/64" thick carbon steel @110V, 13/64"@220V.

Lift TIG Welding

  • Capable of Lift TIG welding.
  • Accessories for TIG welding-TIG torch and tungsten not included.
  • Recommend using YesWelder WP-17V-35 TIG torch.

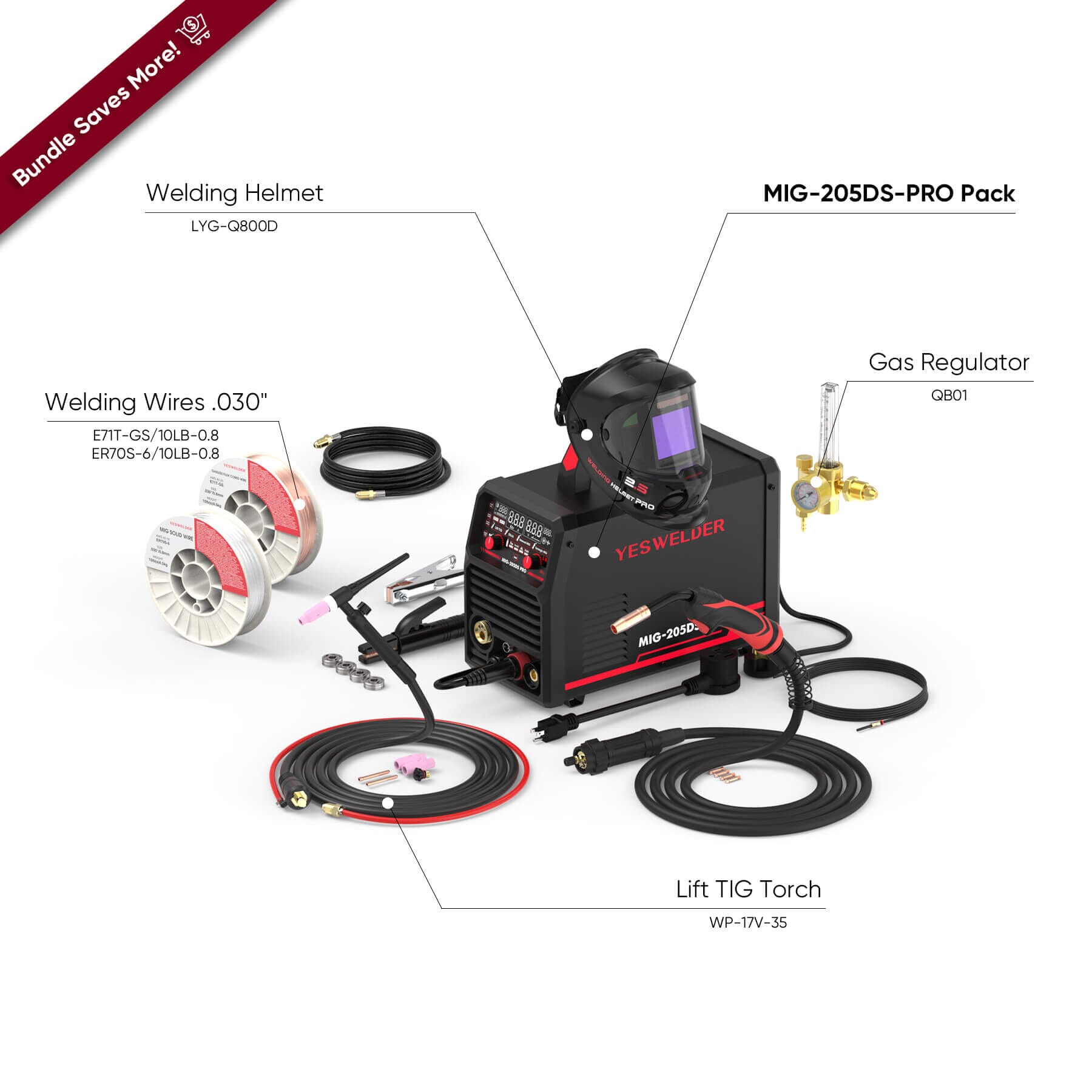

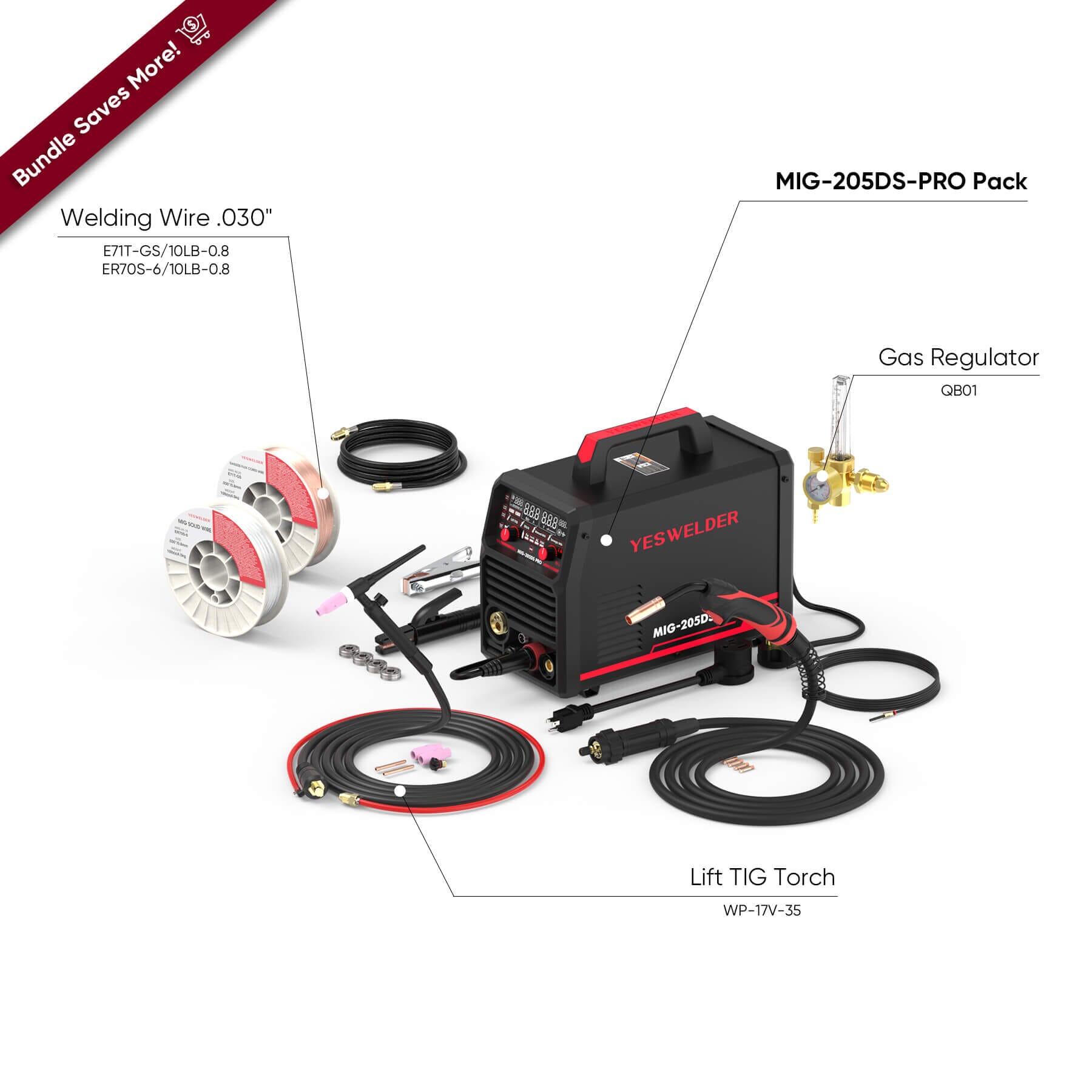

What's Included:

  • 10ft MIG Gun(with a Graphene liner)
  • 10ft Electrode holder with cable
  • 10ft ground clamp with cable
  • 1 Additional .030" & .035" contact tip
  • 220-110V Power Adapter
  • W-type .030”/.035” roller driver
  • V-type .023”/.030” roller driver (.030”/.035” built-in )
  • U-type .035"/.045” roll driver
  • User manual

Most items are usually shipped within 3-5 working days. Your delivery confirmation email will contain your tracking number and order details.

Should you have any questions, our team is also on hand 7 days a week and can be reached at support@yeswelder.com.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

MIG-205DS-B

110V / 220V Dual Voltage / Gas MIG/Gasless MIG/Lift TIG/Stick 4 in 1 / Synergic & Manual MIG Setting /Ideal for 7018/6011 Electrode / Spool Gun Compatible.

FEATURES

  • 4 Functions in 1: Gas MIG/Gasless MIG/Lift TIG/Stick.
  • Aluminum MIG available, spool gun compatible.
  • Synergic Controlled & Manual Adjsutable MIG function, suit for new welders and experienced welders.
  • Can take up to 0.9mm (.035") MIG solid wire (Gas MIG) and 0.9mm (.035") MIG FLux wire (Gasless MIG).
  • Apply to D100/D200 rolls (≤10lbs) of MIG wire.
  • 200 Amp Gas/Gasless MIG welder with a 30 Amp plug (220V).
  • 160 Amp Gas/Gasless MIG welder with a 50 Amp plug (110V).

Quick-Selection Design

Allowing for easy switch to different welding modes to meet different welding requirements. (Gas/Gasless MIG, Stick or Lift TIG)

Synergic Control MIG

Allowing automatic change of the voltage & wire feeding speed by adjusting the amperage or thicknesses. It will match the welding chart set in the data.

Dual Voltage

Capable to run directly on 220V (±10%) 50/60 Hz power or on 110V (±10%) 50/60 Hz with the use of a power adapter.

MIG
Gas Welding

Shield gas: 100% CO2/MIG, 25%CO2, 75% Argon MIG welding for mild steel, 2%CO2, 98% argon for stainless steel, 100% argon for aluminum.

Wire recommendation: .030" (0.8mm) &.035" (0.9mm) ER70S-6 mild steel MIG welding wire & ER308L stainless steel MIG welding wire.

5/8"-18RH gas fitting easy to install and remove.

MIG
Gasless Welding

Release hard moving of gas cylinder, release the low efficiency of stick welds, works with gasless flux wire perfectly.

Welding wire recommendation: .030" & .035" ET71-GS flux wire.

Variable MIG Setting

Synergic MIG Setting: provides communication between the power source, feeder, and torch--allows for automatic change of the voltage & wire feeding speed by adjusting the amperage or thicknesses. Easy works with new welders or users.

Manual MIG Setting: meet the need of an experienced and professional welder by adjusting the voltage & wire feeding speed separately.

Aluminum MIG Welding

Capable of welding aluminum by using 100% argon.
1. Graphene feeding liner with regular MIG torch with synergic MIG control
2. Spool gun with manual MIG control.

Recommend aluminum welding wire(1lb): Silicon aluminum ER4043 and Magnesium aluminum ER5356 welding wire

Wire Recommendation

Compatible with 2-lbs and 10-lbs welding wire (4" or 8" wire diameter: D100/D200).

Suitable for several welding requirements.

.023”/.030”/.035" ER70S-6 mild steel MIG welding. wire/ER308L stainless steel wire.

.023”/.030”/.035” E71-GS flux core wire for manual MIG setting; only .035” available in synergic MIG setting.

.035”/.045” ER5356 magnesium aluminum welding wire / ER4043 silicon aluminum welding wire.

DC Stick Welding

Smooth welding and fast burning.

Capable of welding with 7018/6011 electrodes.

Electrode up to 1/8"@110V, 5/32"@220V.

Apply to 9/64" thick carbon steel @110V, 13/64"@220V.

Lift TIG Welding

Capable of Lift TIG welding.

Accessories for TIG welding-TIG torch and tungsten not included.

Recommend to use YesWelder WP-17V-35 TIG torch.

Specifications

Product weight: 23lb

Product Dimensions: 18.11"*8.07"*14.17"

Supply Voltage: 110V/220V 50/60 Hz

Input Current: 45A@110V, 30A@220V

Output Current:

@220V: 30-205A (MIG) 20-180A (Stick) 20-205A (TIG)

@110V: 30-166A (MIG) 20-146A (Stick)

Duty Cycle (MIG): @110V, 60%@160A, 100%@123A @220V, 60%@205A, 100%@158A

Wire Spool: 2LB/10LB

Welding Material: Carbon Steel/Stainless Steel/Aluminum

Protection Class: IP21S
