LYG-0V-900B Flip-up Auto-darkening Welding Helmet

The helmet features a flip-up auto-darkening lens and a separate, clear grinding shield. Flip the lens up when grinding and performing other non-welding work. Flip the lens down when welding or cutting.

Flip-up Design

• Quick-release of front cover lens allows less lens changes, thus increasing the using time of the helmet.
• Self-lock at the upright position makes the non-welding work easier.

Lightweight, Well-balanced Design

-reduces neck torque, minimizing operator fatigue and strain leading to an increase in short-term comfort as well as long-term health benefits.

Ergonomic Headgear Design

• provides a secure fit while avoiding major pressure points within the head, maximizing all-day wear.
• avoid over-tightening and discomfort in downward applications with the big size pivoting backing and multiple head straps.

Clear Grind Shield

-provides a clear viewing area for grinding and other tasks, reducing eye strain or other potential eye injuries.

Panoramic View

Shade 5.0 side windows allows a sense of surroundings.

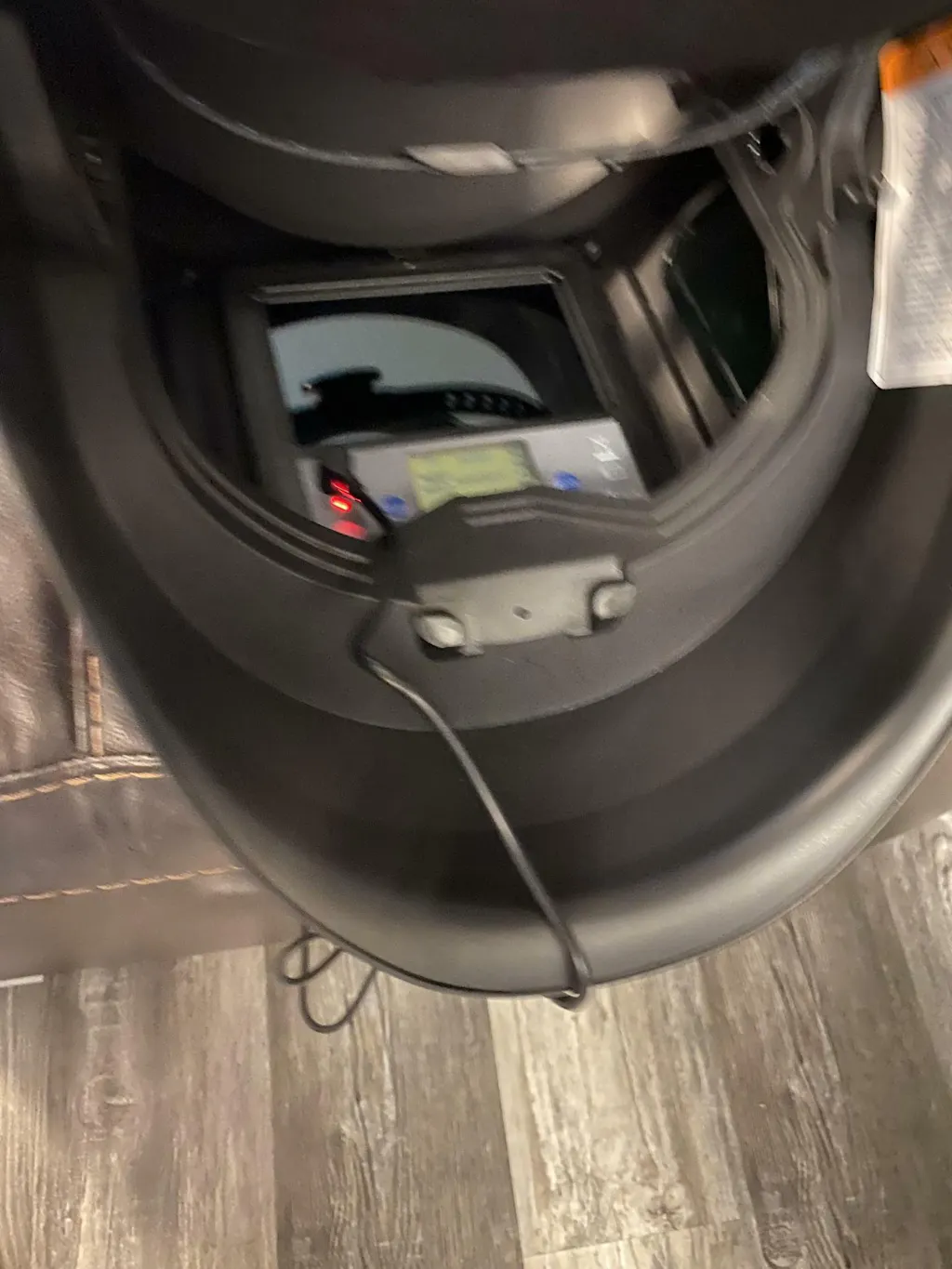

Auto-darkening Lens

• auto-darkening when it senses the arc rather than the brightness
• auto shut down 3minutes after working

Characters

• Great For TIG MIG Stick, Plasma Applications with Grinding
• Viewing Size: 3.93" X 3.23" , non-auto-darkening Side View
• True color view:  1/1/1/1 Optical Clarity
• Dark states: DIN 5～9/9～13 free adjustment(Outside Variable)
• View Area: 100×59.5mm mm/ 3.94 x 2.34”, side view non auto-darkening
• Grind Shield View Area: 10.62X5.42"
• Sensors to Arc: 4
• Response time (bright to dark): <1/30000 seconds (normal temperature conditions)
• Sensitivity: adjustable
• Power on/off: Fully automatic
• Power supply: Lithium battery&Solar supply
• Rechargeable Lithium Battery: Rated 300mAh, 2 hours charging, can apply for 10 days.
• UV/IR protection: DIN 16
• Working temperature: 23-131℉
• Storage temperature: -4-158℉
• Low voltage indicator: Yes
• ADF self-check: Yes
• Magnifying Lens: Not compatible

What's Included:

• 1 x Auto Darkening Welding Helmet

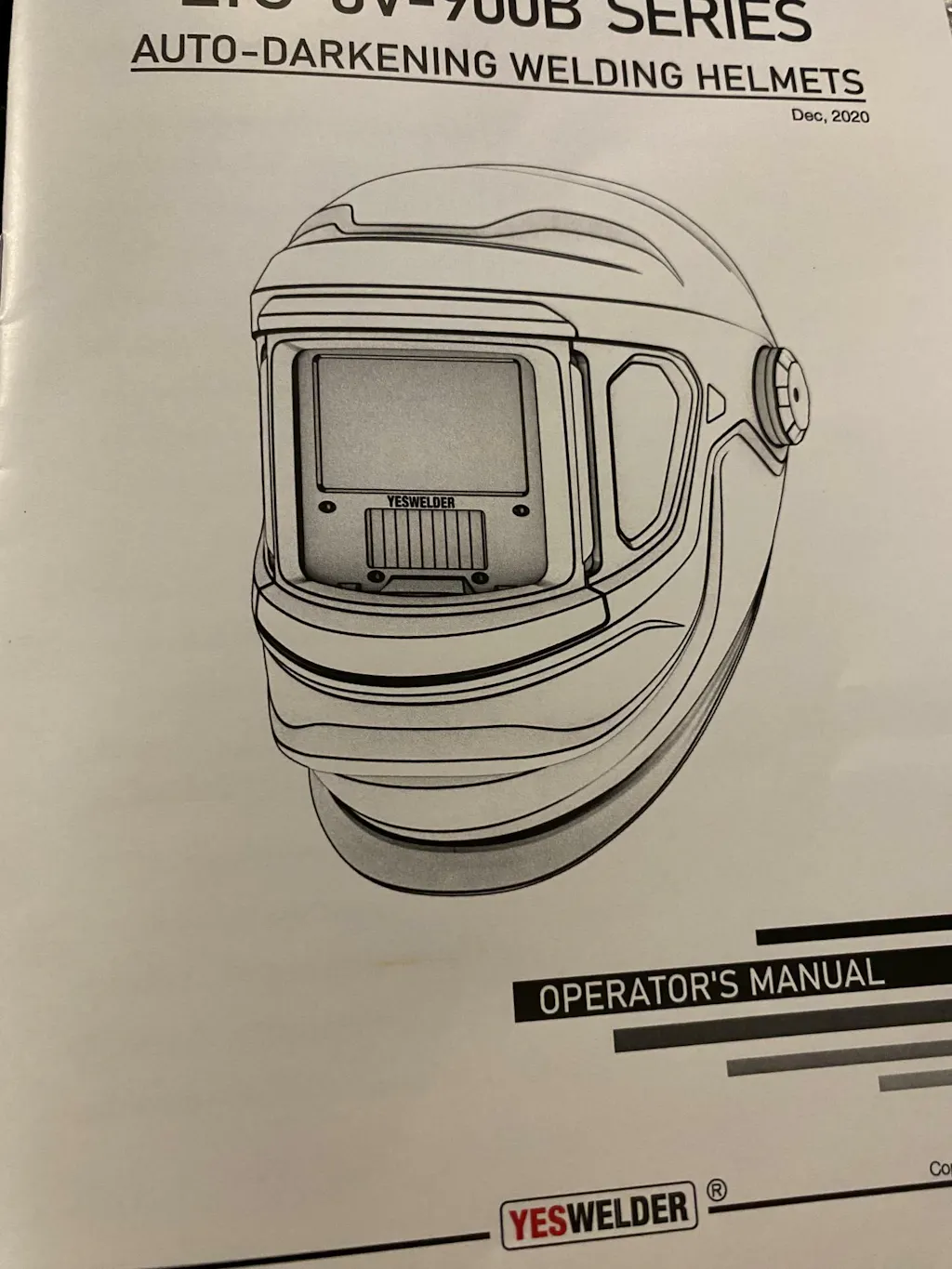

• 1 x User's Manual

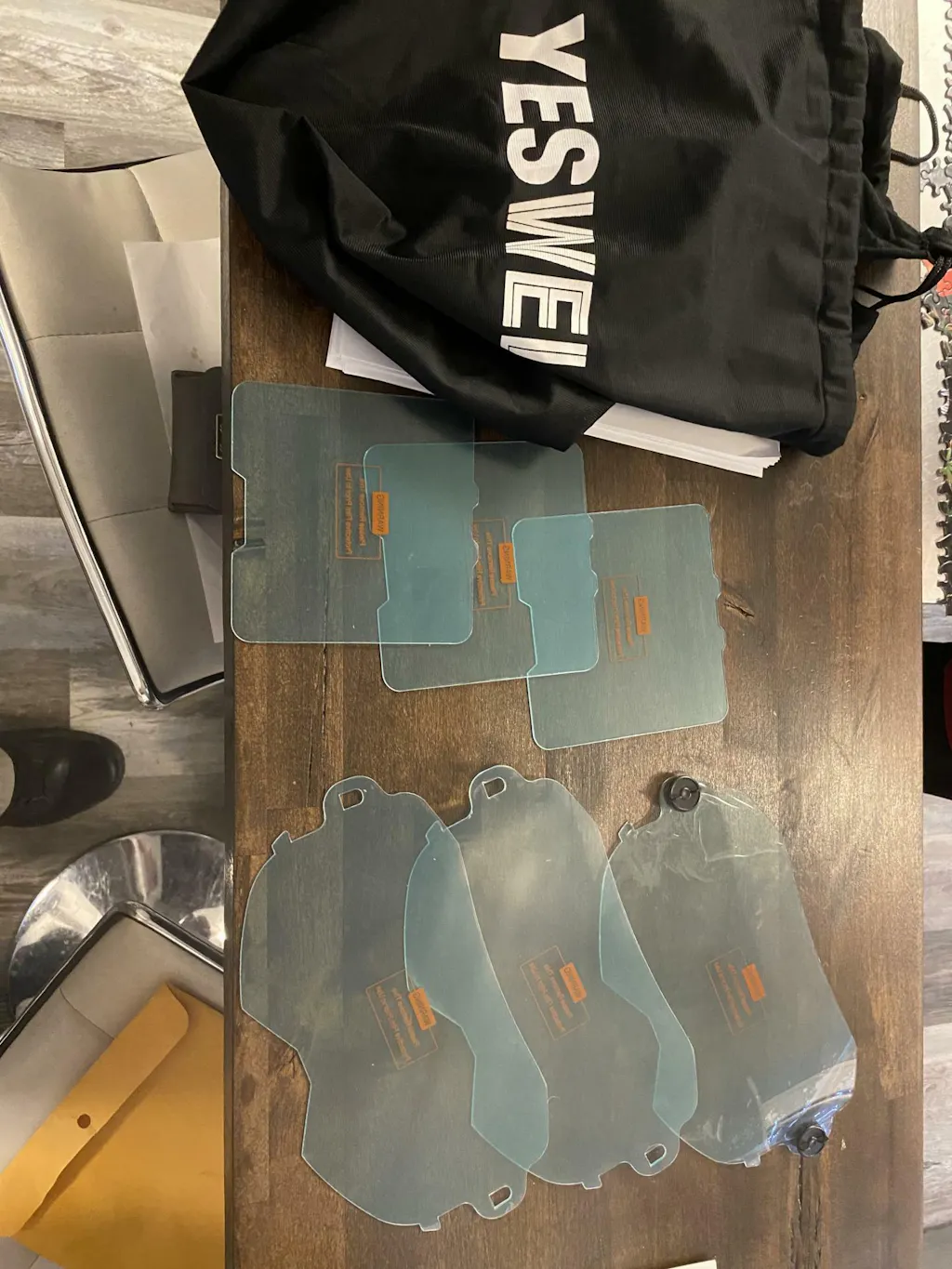

• 3 x Cover Lens, Outside
• 2 x Grinding Shield Len
• 1 x 5V USB Charge Cable (above 1A)
• 1 x Storage Bag
• 1 x Headgear

Note:
The headgear is default installed in the middle position. When adjusting the headgear, put both sides in a symmetrical position, or it will break down quickly.
