Spool Gun Compatible MIG Welder
220v Aluminum Welder
YesWelder MIG Aluminum Welder
Spool Gun Compatible Aluminum Welder
YesWelder  220V Welding Machine

YesWelder 250A Aluminum MIG Welder Spool Gun Compatible

Regular price 699.99 Sale price560.00
/
Shipping calculated at checkout.

  • Free domestic shipping
  • In stock, ready to ship
  • Inventory on the way

Feature

Multi-functions

MIG synergistic setting & MIG manual setting, Gasless Flux wire MIG Welds, stick welds and Lift TIG welds. Dynamic control-set arc control to crisp or soft depending on your preference and application. (TIG torch needs purchasing separately, WP-17V-35)

Synergic MIG

-provides communication between the power source, feeder, and gun. Easy work with new welders or users.

Gasless Flux MIG welds

-release hard moving of gas cylinder, release the low efficiency of stick welds, and work with gasless flux wire perfectly.

Various Welding Wire

Suitable for all kinds of welding requirements

  • .023”/.030”/.035” solid/SS wire,
  • .023”/.030”/.035” flux core wire for MIG manual setting; only .035” available in MIG synergistic setting
  • .035”/.045” aluminum wire.

Main Parameter

 MIG-250PRO-AL parameter

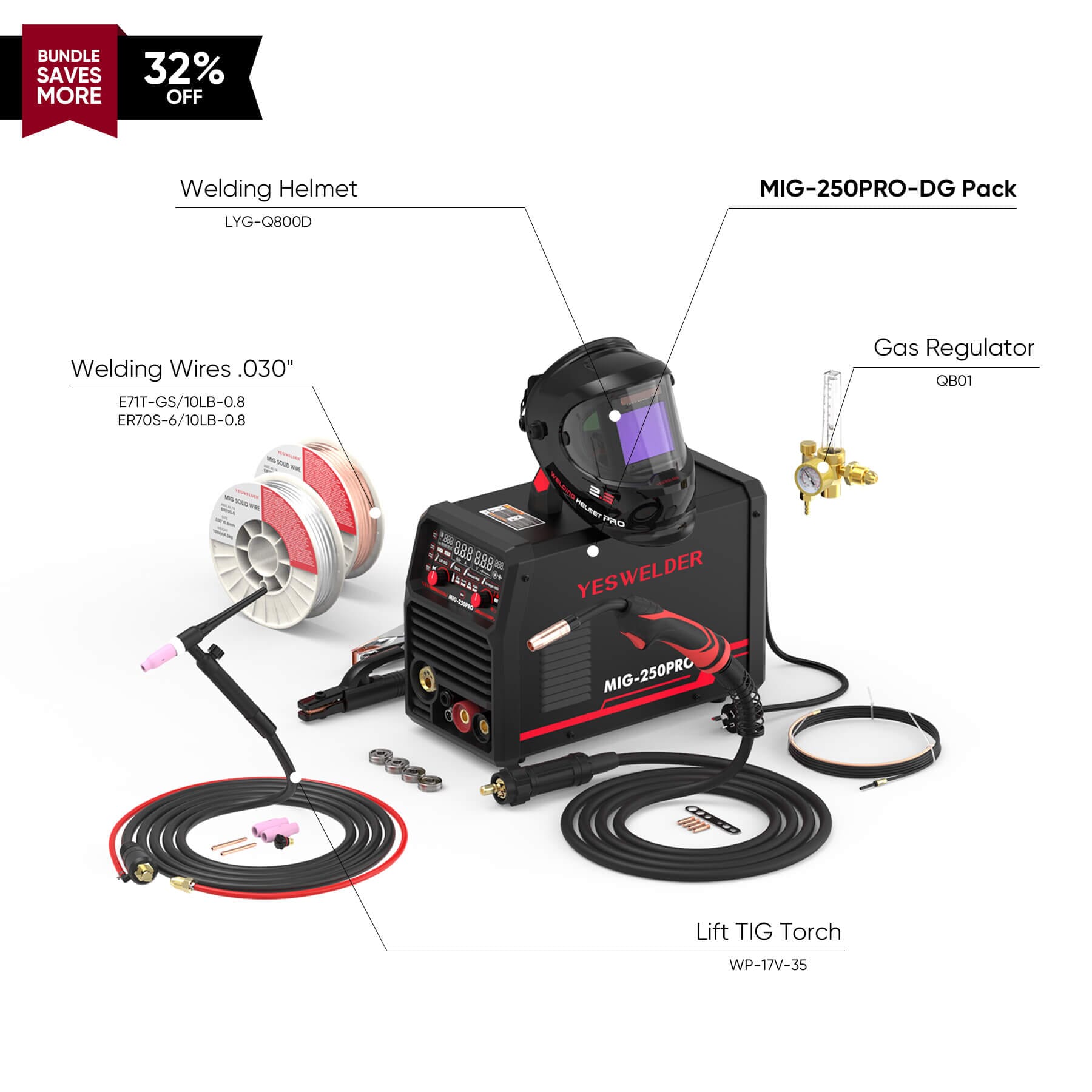

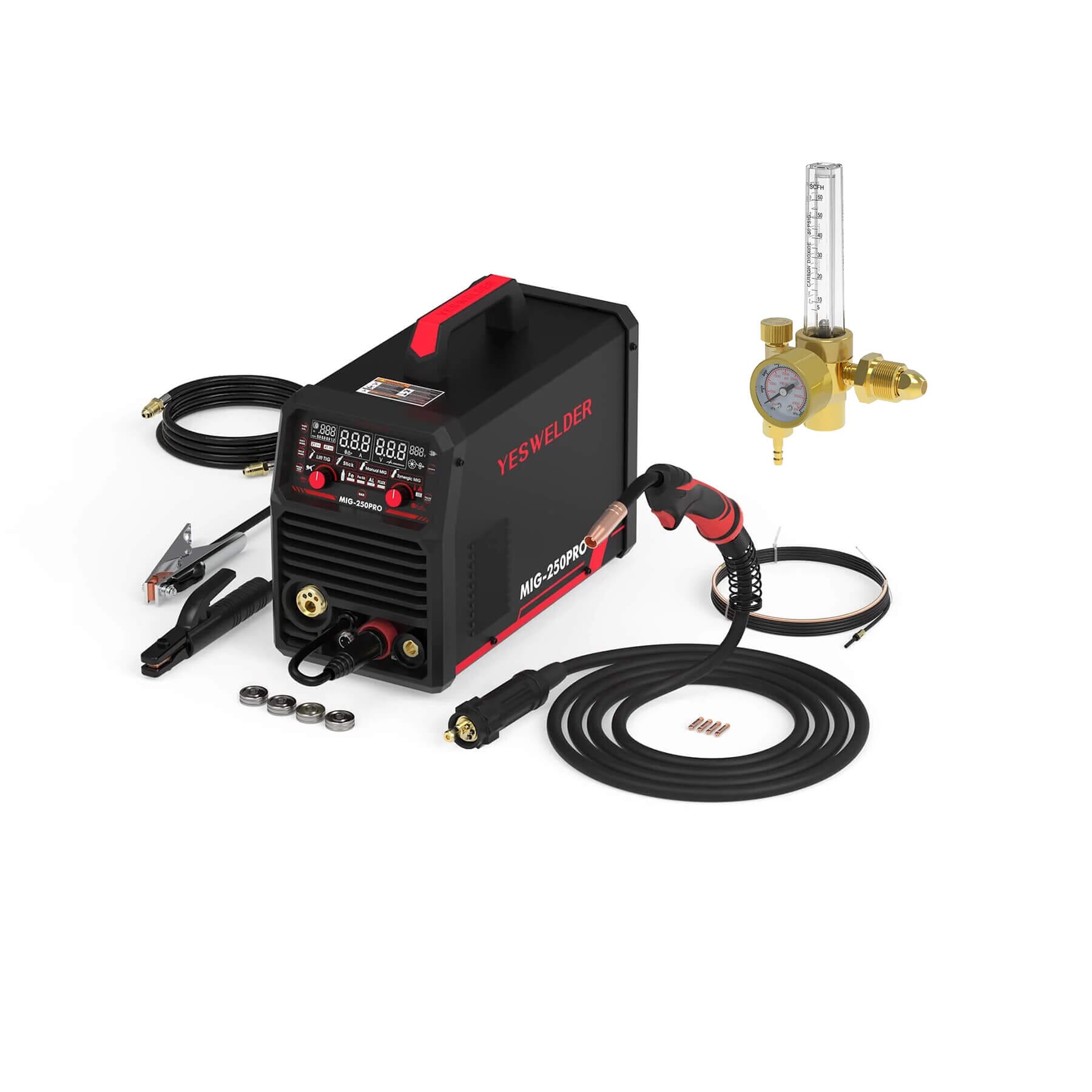

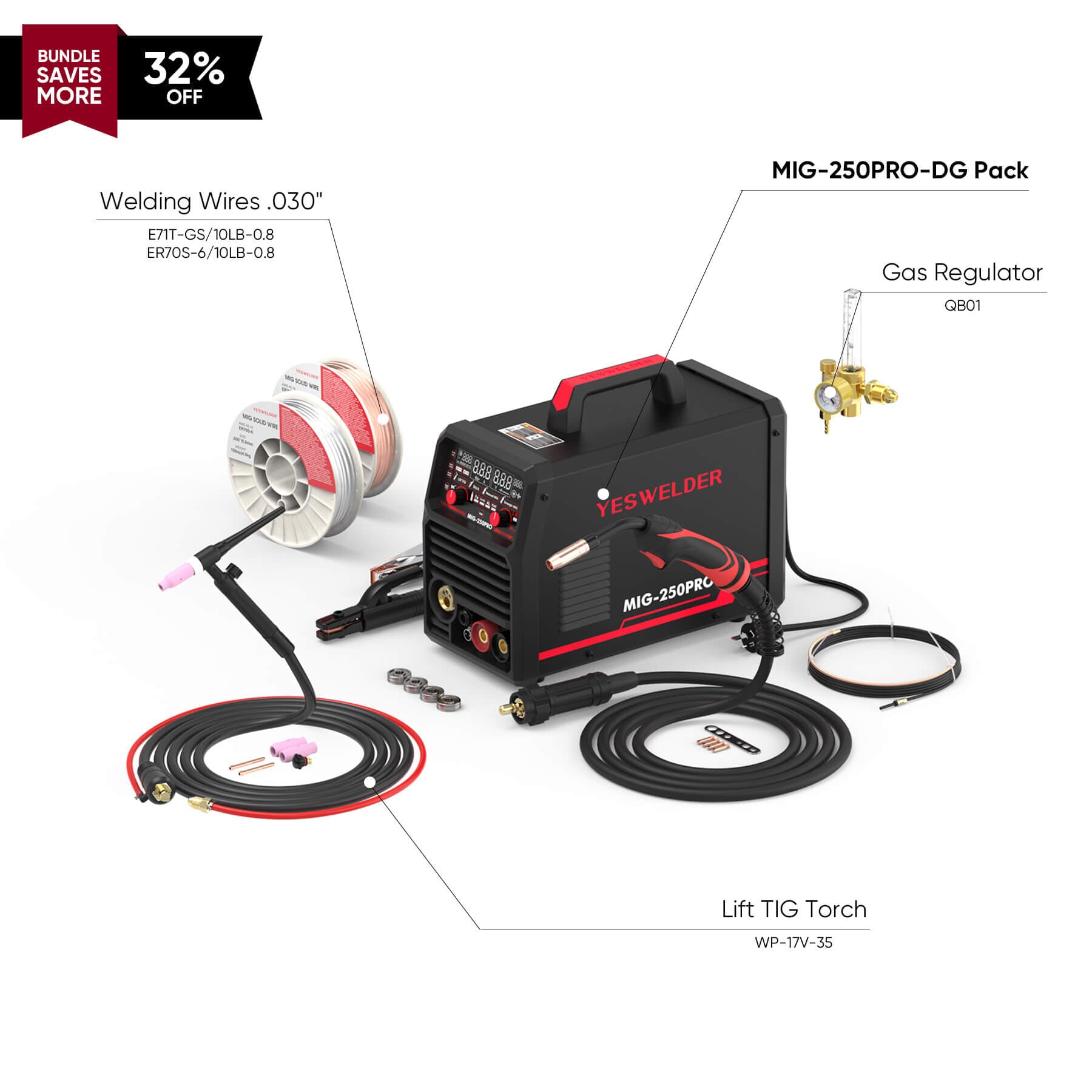

What's Included:

  • 10ft MIG Gun(with a Graphene liner)
  • 10ft Electrode holder with cable
  • 10ft ground clamp with cable
  • 1 Additional .030" & .035" contact tip
  • W-type .030”/.035” roller driver
  • V-type .023”/.030” roller driver (.030”/.035” built-in )
  • U-type .035"/.045” roll driver
  • User manual

COVERED ONE YEAR QUALITY LIMITED WARRANTY

Within the warranty periods, YesWelder will repair or replace any warranted parts or components that fail due to such defects in material or workmanship.

Most items are usually shipped within 3-5 working days. Your delivery confirmation email will contain your tracking number and order details.

Should you have any questions, our team is also on hand 7 days a week and can be reached at support@yeswelder.com.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

MIG-250PRO-SG

The YesWelder MIG-250PRO Welder is suitable for any Do-It-Yourself, Maintenance, Repair, Metal Fabrication, and Hobbyist project.

FEATURES

  • MIG Synergistic & Manual Setting on MIG function, easy and simple operation.
  • 4 Functions in 1: Gas MIG /Gasless MIG / Lift TIG / Stick.
  • Spool Gun Compatible.
  • Can take up to 0.9mm (.035") MIG solid wire (Gas MIG) and 0.9mm (.035") MIG Flux wire(Gasless MIG).
  • Apply to D100/D200 rolls (≤10lbs) of MIG wire.
  • Capability for Steel, Stainless Steel, Aluminum.
  • Suitable for 7018/6011 Electrode.

Quick-selection design

Allowing for easy switch to different welding modes, Gas/Gasless MIG, Stick or Lift TIG.

Synergic/Manual Controlled MIG

Suit the needs of hobbyists and professional welders.

Various Welding Wire Selection

Equiped with different rollers and  capable of diffenting welding projects.

Multi-Process

Multi-functionsMIG synergic setting & MIG manual setting, Gasless Flux wire MIG Welds, stick welds, and Lift TIG welds, MIG Aluminum Welds.

Shield gas for MIG welding: 100% CO2 Fe(Carbon Steel), 75% Ar/25% CO2 Fe(Carbon Steel)/98% Ar/2% CO2 or 100% Ar Stainless Steel), Flux Wire(Carbon Steel) and 100% Ar AL(Aluminum).

5/8"-18RH gas fitting easy to install and remove.

Lift TIG welding optional with additional WP-17V-35 TIG torch.

Suitable for 7018/6011 Electrode for Stick welding.

Alternative MIG Setting

Synergic MIG Setting

--provides communication between the power source, feeder, and torch--allows for automatic change of the voltage & wire feeding speed by adjusting the amperage or thicknesses.

-- match the welding chart set in the data. Easy works with new welder or users.

Manual MIG Setting

--meet the need of an experienced and professional welder by adjusting the voltage & wire feeding speed seperately. (The amperage will change with the wire speed.)

Aluminum MIG Welding

Capable of welding aluminum using 100% Argon using gaphene liner with Mig torch or spool gun.

Intuitive
Digital Display

1.Welding Mode Selection: Manual MIG, Synergic MIG, Stick, Lift TIG, Aluminum MIG.

2.Welding Materials Selection: Carbon Steel/Stainless Steel, Aluminum.

3.Menu Selection.

4.Wire Diameters Selection:  .023"/.030"/.035"/.045".

5.Value Adjusting Knob:

Synergic MIG Mode-allowing automatic change of the voltage & wire feeding speed by adjusting the amperage. Welding Voltage Micro Adjusting -5~+5 (-1.5V~+1.5V), Wire Feed Speed can not be adjustable.

Manual MIG Mode--Adjustable Welding Voltage (12.5-30V); Wire Feed Speed(2-15 m/Min)

6.Manual Wire Feeding

Wire Recommendation

Compatible with 2-lbs and 10-lbs welding wire (4" or 8" Wire diameter: D100/D200).

Suitable for several welding requirements.

.023”/.030”/.035" ER70S-6 Mild Steel MIG Welding. Wire/Stainless Steel wire.

.023”/.030”/.035” E71-GS flux core wire for  manual MIG setting; only .035” available in  synergic MIG setting.

.035”/.045” ER5356 Magnesium Aluminum Welding Wire / ER4043 Silicon Aluminum Welding Wire.

Specifications

Product weight: 21.72lb

Product Dimensions: 18.11"*8.27"*13.97"

Supply Voltage: 220V 50/60 Hz

Input Current: 30A

Output Current: MIG 30-250A, 20-225A

Duty Cycle: 60% @225A, 100% @174A

Electrode Diameter: up to 5/32"
Workpiece Thickness: up to 13/64"

Welding Material:  Carbon Steel/Stainless Steel, Aluminum

Protection Class: IP21S
