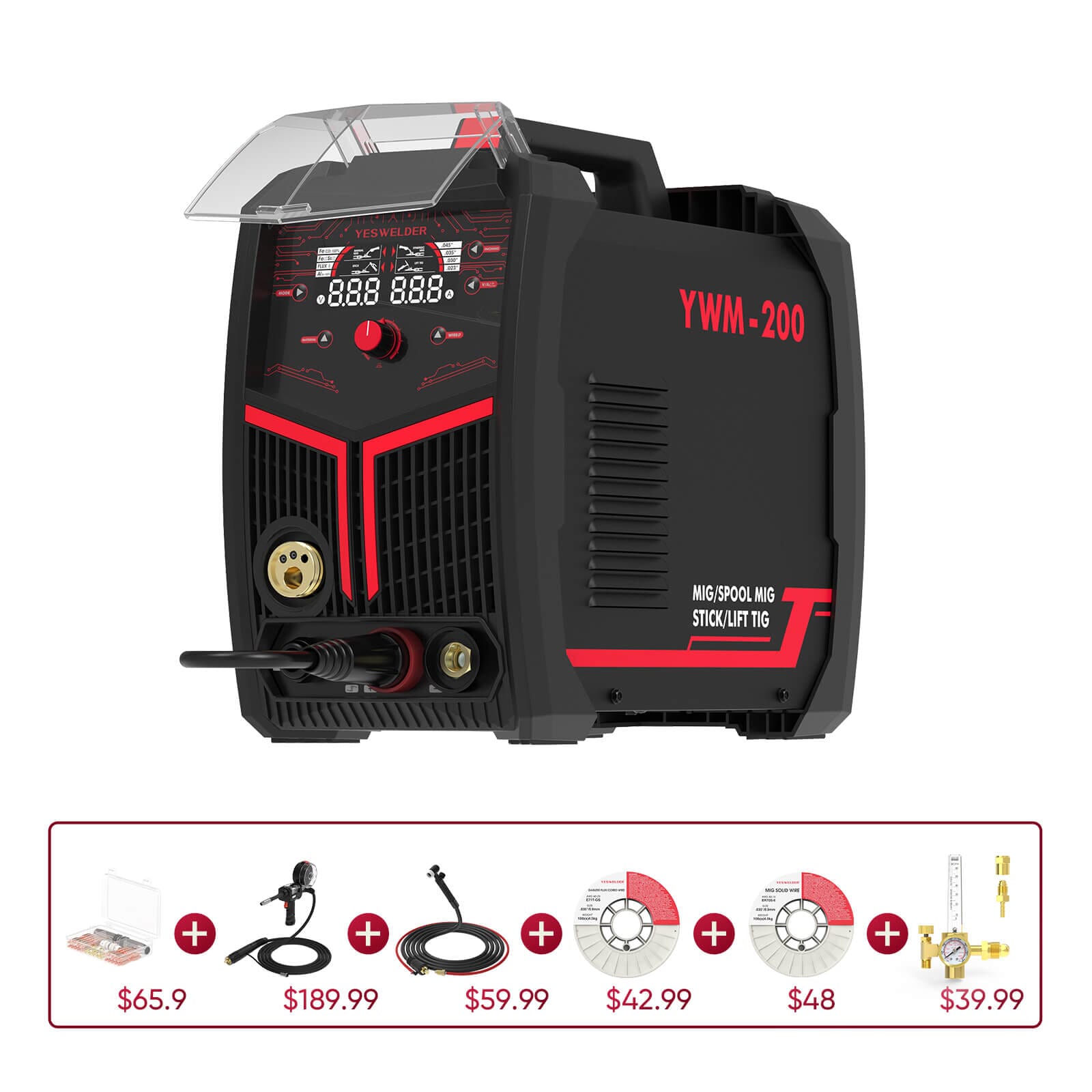

YWM-200 4-in-1 Multi-Process Aluminum MIG Welder

The YesWelder YWM-200 Welder is Pro versatile welding machine, perfect for any Do-It-Yourself, maintenance, repair, metal fabrication, and hobbyist project.

FEATURES

• MIG Synergistic & Manual Setting on MIG function, straightforward operation.
• 4 Functions in 1: Gas MIG /Gasless MIG / Lift TIG / Stick (TIG torch not included)
• Spool Gun Compatible.
• Aluminum MIG Welding Available
• Can take up to 0.9mm (.035") MIG solid wire (Gas MIG) and 0.9mm (.035") MIG Flux wire(Gasless MIG).
• Dual Voltage: 110V and 220V, meet household DIY and industrial usage
• Apply to D100/D200 rolls (≤10lbs) of MIG wire.
• Capability for Steel, Stainless Steel, Aluminum.
• Suitable for 7018/6011 Electrode.

Multi-Process

• Multi-functions MIG synergic setting & MIG manual setting, Gasless Flux wire MIG Welds, stick welds and Lift TIG welds, Aluminum MIG Welds.
• Shield gas for MIG welding: Fe 100% CO2, Fe 75% Ar/25% CO2/Ss 98% Ar/2% CO2, Fe Flux Core and AL 100% Ar.
• 5/8"-18RH gas fitting easy to install and remove.
• Suitable for 7018/6011 Electrode for Stick welding.
• Lift TIG welding optional with an additional WP-17V-35 TIG torch.

Alternative MIG Setting

Synergic MIG Setting
--provides communication between the power source, feeder, and torch--allows for automatic change of the voltage & wire feeding speed by adjusting the amperage or thicknesses.
-- match the welding chart set in the data. Easy works with new welder or users.
Manual MIG Setting
--meet the need of an experienced and professional welder by adjusting the voltage & wire feeding speed separately. (The amperage will change with the wire speed.)

Aluminum MIG Welding

Capable of welding aluminum by using 100% Argon.
1. Graphene feeding liner with regular MIG torch with Synergic MIG control
2. Spool gun with Manual MIG control.
Recommend aluminum welding wire(1lb):
Silicon Aluminum Welding Wire ER4043,
And Magnesium Aluminum ER5356 Welding Wire

Dual Voltage

This dual voltage welder will operate efficiently on both voltages. Professionals find it more useful for larger projects and get the job done efficiently, and not any difficulty with suitable power.
Beginners and hobbyists can increase their ability to handle larger projects when required.
The dual voltage design makes portable repair business possible for those who don’t have access to a standard NEMA 6-50 power outlet or suitable power supply.

Color Led Screen

Permits visualization of welding process and parameters such as welding material, wire diameter, output voltage, and output current or wire feeding speed current.

Optional Functions

• VRD: to ensure the operator’s safety while in idle mode
• Anti-sticking: lower the machine’s working intensity and allow the stick welding electrode to be easily detached
• Adjustable Arc force: assists in stabilizing the arc, preventing the arc from cutting out while welding, and preventing electrode sticking.
• Adjustable hot start: increases the ease of starting electrodes, especially under challenging conditions such as damp electrodes, imperfect job surface, or when using ‘difficult to run’ electrodes, etc.
