ARC-205DS PRO
× 1
ARC-205DS PRO
5 out of 5 stars4.8 (96 reviews)$138.00
or 4 payments of $34.50 with Klarna
Dual-voltage 205A Stick and Lift TIG welder that brings stronger output to portable repair work.
- 205A power for common stick rods
- Adjustable hot start for easier ignition
- Arc force control for stable welds
- 8.4 lb portable compact design
Info & Benefits
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit https://p65warnings.ca.gov.
Free standard shipping on orders over $150 within the contiguous US. Orders typically arrive in 3–5 business days. Expedited shipping options available at checkout.
Shipping policyIf you're not completely satisfied with your purchase, return it within 30 days for a full refund. No questions asked. Contact our support team to initiate a return.
Return policyCovered by a manufacturer warranty against defects in materials and workmanship.
Warranty termsGet the latest user manual and firmware for your machine.
More Features
Tap each feature to see the details.
Up to 205A output handles common 6010, 6011, 6013, and 7018 rods.
Automatic Hot Start boosts starting current for quick, reliable ignition.
Fine-tune starting current to reduce sticking, stabilize the arc, and improve weld appearance.
Dial in arc force for better penetration, control, and consistency across different materials.
Built with an 8.4 lb compact design that is easy to carry, store, and bring to the job.
Materials × Thickness.
Recommended process
Stick
TIG
StickTIG5 × US $11 coin=2mm5 coins=10mm
Minimum24 GA0.6 mm
Maximum1/4"6 mm
Specifications
Power & Output
- Input Voltage
- 110V, 220V ±10% 50/60Hz
- Processes
- Stick, Lift TIG
- Output Current Range
- Stick: 20-145A @ 110V; 20-205A @ 220V
- Duty Cycle
- Stick: 60% @ 205A1
Material & Capability
- Material Compatibility
- Stick: Steel TIG: Steel, Stainless Steel
- Recommended Thickness
- Stick: ≤ 3/16" (5 mm) @ 110V; ≤ 3/8" (10 mm) @ 220V TIG: ≤ 5/32" (4 mm) @ 110V; ≤ 1/4" (6 mm) @ 220V
TIG
- TIG Ignition Type
- Lift Start
- Foot Pedal Compatibility
- Not supported
- Tungsten Type
- WT20, WC20, WL20, WL15
- TIG Torch Type
- WP-17V-35 (Optional. Sold separately.)
- Gas Requirements
- 100% Argon
Stick
- Stick Electrode Type
- E6011 / E6013 / E7018
Physical & Safety
- Display
- LED
- Fan Control
- Continuous Fan Mode
- Weight
- 8.4 lbs
- Dimensions
- 11.6" × 5.3" × 7.7"

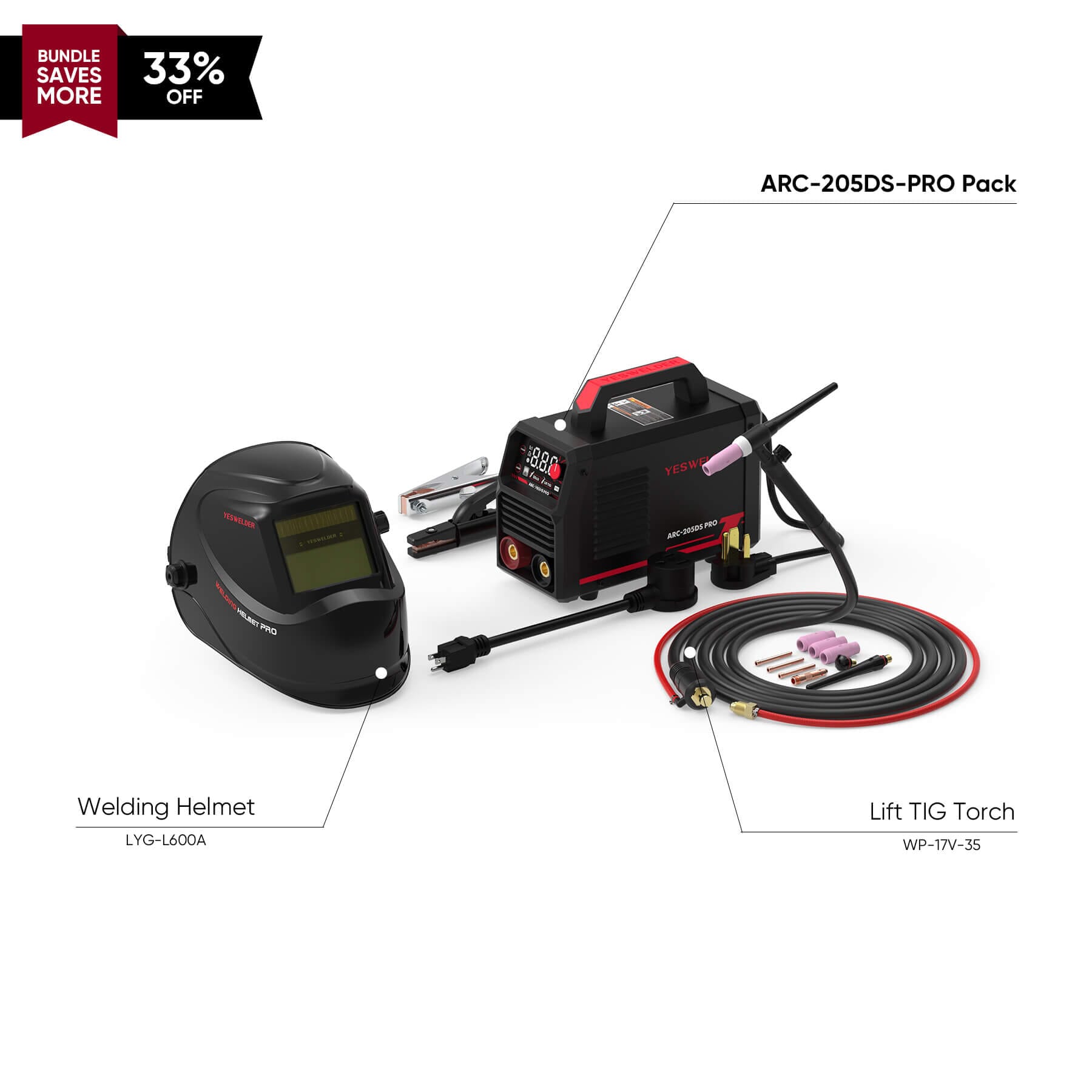

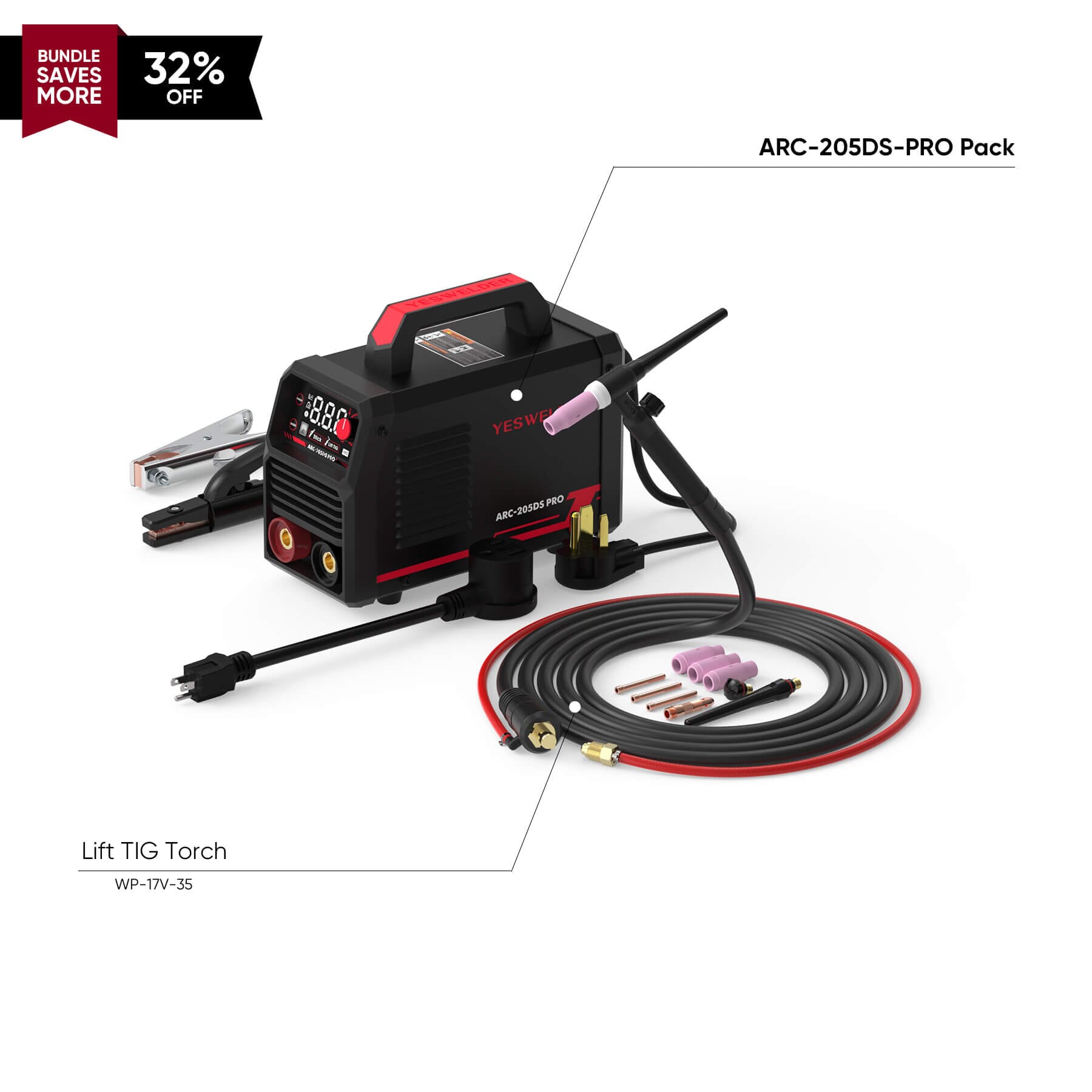

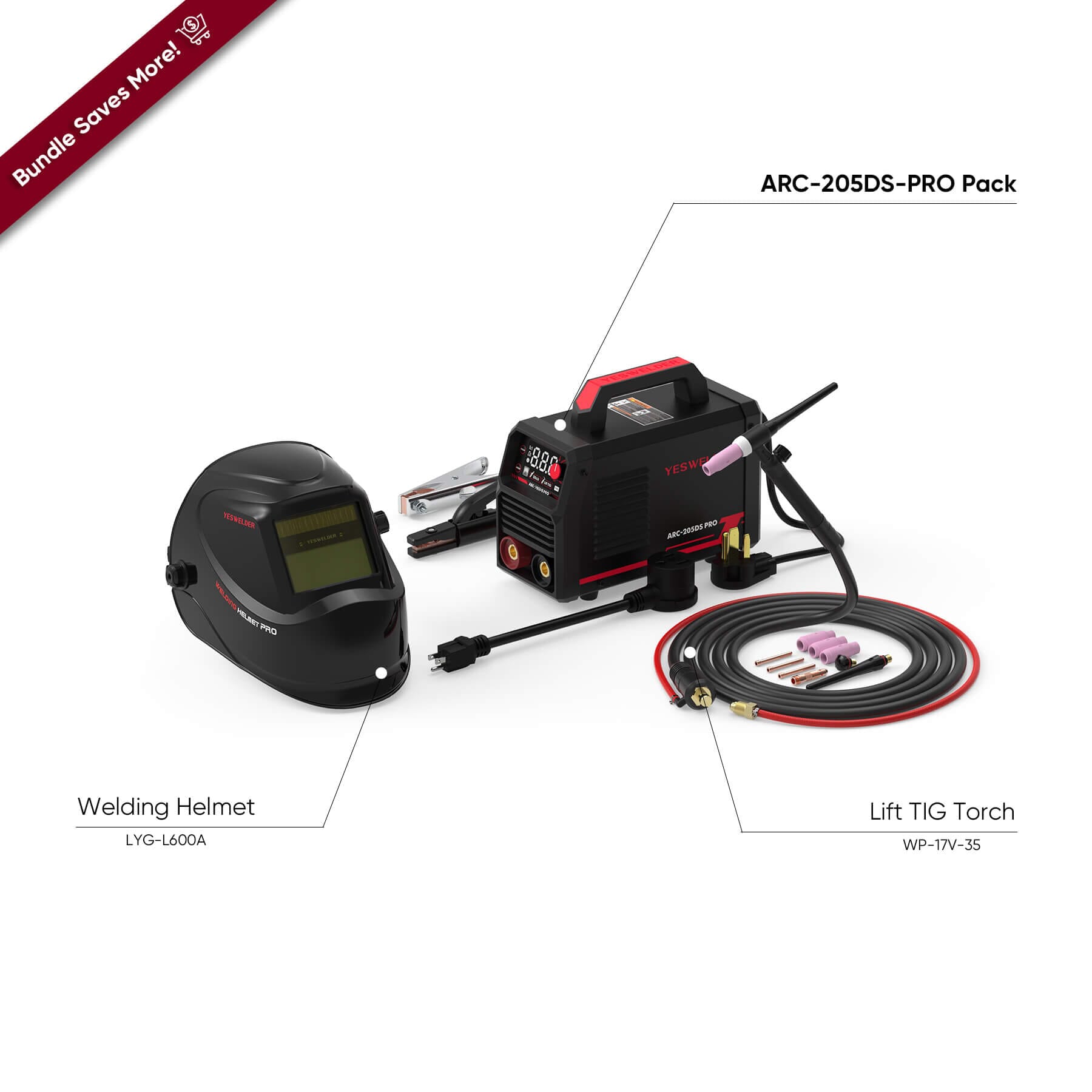

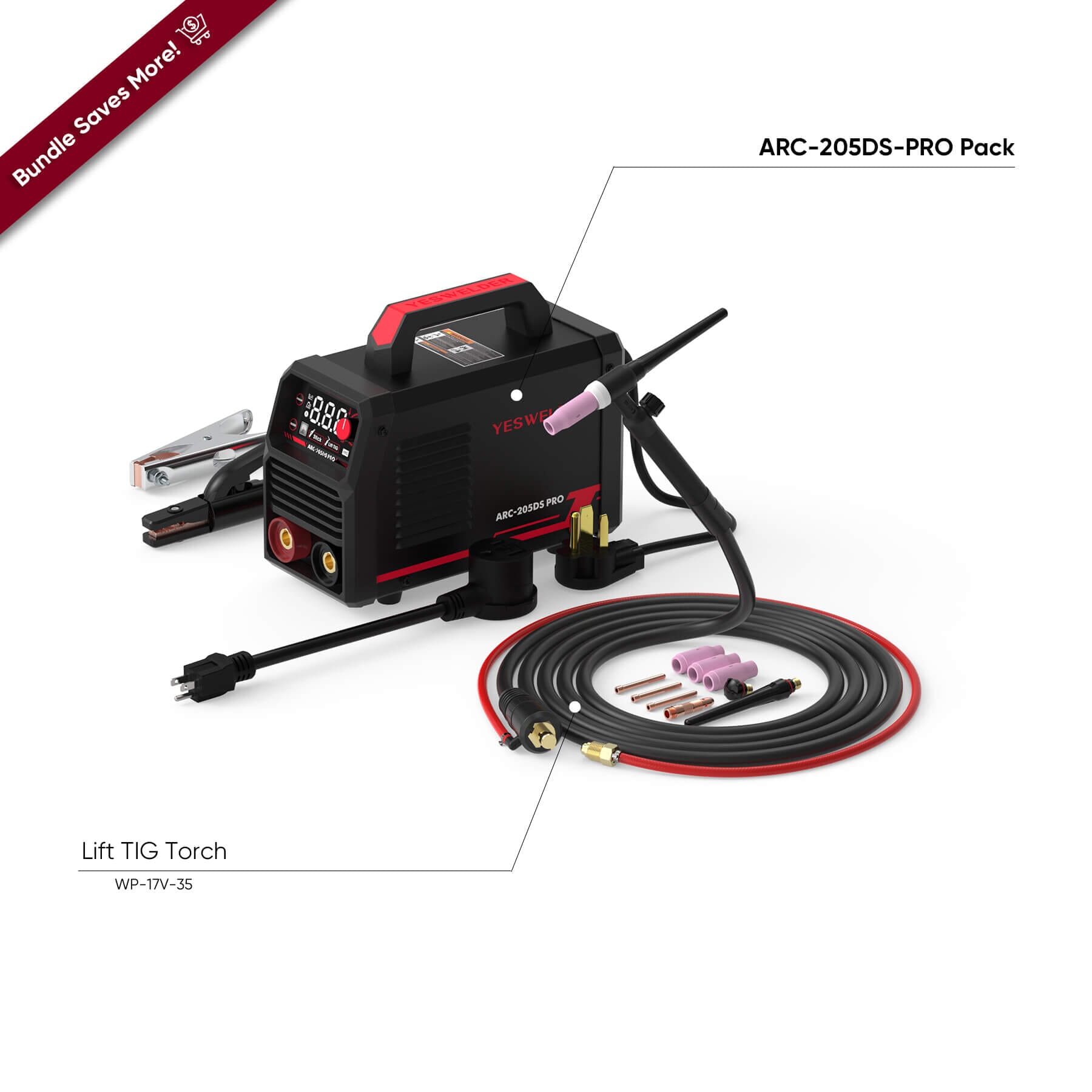

What's included & Compare Bundles
Work Clamp
× 1
Electrode Holder
× 1
Power Adapter
× 1
All the essentials. And then some.
How it compares.
ARC-205DS-PRO
Digital stick + lift TIG that runs on 110V or 220V.
From $138.00
Currently viewing
- Stick/TIG workhorse
- Key Feature
- LED
- Display
- Steel / Stainless
- Material Compatibility
- ≤ 3/8" (10 mm) @ 220V
- Recommended Thickness
- 205A
- Max Output
- Stick / TIG
- Processes
- 110V / 220V
- Input Voltage
YWM-160
Compact manual-control MIG for everyday steel work.
From $225.00
- 160A synergic MIG
- Key Feature
- LED
- Display
- Steel / Stainless
- Material Compatibility
- ≤ 5/16" (8 mm) @ 220V
- Recommended Thickness
- 160A
- Max Output
- MIG / Flux / TIG / Stick
- Processes
- 110V / 220V
- Input Voltage
FLUX-135PRO
Gasless flux-core 3-in-1 that runs on any 110V outlet.
From $159.00
- Synergic flux-cored
- Key Feature
- LED
- Display
- Steel / Stainless
- Material Compatibility
- ≤ 3/16" (5 mm) @ 110V
- Recommended Thickness
- 135A
- Max Output
- Flux / TIG / Stick
- Processes
- 110V
- Input Voltage
Before you ask.
The ARC-205DS-PRO supports Stick welding and Lift TIG welding.
Yes. The ARC-205DS-PRO supports AC 110V and AC 220V input at 60 Hz.
The ARC-205DS-PRO is rated at 40A input current on 110V and 30A on 220V.
Adjustable Hot Start helps the arc ignite smoothly and reduces electrode sticking at arc start.
Yes. It is designed as a compact stick/Lift TIG machine for shop, repair, and field work.
The ARC-205DS-PRO is a good fit for users who need a dual-voltage Stick and Lift TIG welder with simple setup and strong arc control.
What customers are saying.
Rating snapshot
5 stars
80
4 stars
15
3 stars
1
2 stars
0
1 star
0
Overall rating4.85 out of 5 stars96 reviews
Review this product
Share your experience with other welders.
Steven Scariot2 days ago
4 out of 5 starsGreat little stick welder for the price
Let me start out by saying that I have almost zero experience with stick welding and very little with MIG. So I'm a newbie for sure... The machine sets up easily and strikes an arc much easier than I am used to. Playing with 6011 1/8" and 6013 1/16", I tried Amp settings as recommended and both higher and lower just to see how it changed things. My welds don't look good, but that's on me. I used the 1/16" 6013 at 120V input to help some guys at a race and fill in a small missed section of roll cage weld preventing them from passing tech, and it did the job. That was my first and only at…
Gary Emrick6 months ago
5 out of 5 starsWorks great for being sooooo portable
Works great for being sooooo portable
EdBiggs9 months ago
5 out of 5 starsArc 205-DS a Winner!
Stout enough for field welding! Light enough to carry with one hand! Love the arc start feature. Makes starting a breeze. I would buy this again!
Brad Meyer9 months ago
5 out of 5 starsVery compact!
I have only burned up one 6013 rod, just to test it out. It has a nice stable arc and welds nicely. I have a few projects coming up that I will use it for. I’ll leave more feedback then.
Gregory Peacock1 year ago
4 out of 5 starsGreat little welder
What a great little welder it did everything we needed to do with it would recommend this to anyone thanks for a great welder
Ceallach Okeefe1 year ago
5 out of 5 starsCouldn’t ask for more
I’ve been using this constantly after my sa200 went down, and I’m thoroughly impressed, I’ve probably never gave this thing a break for duty cycle and it keeps up, super light and small so it makes it perfect for working around the house. Couldn’t ask for anything better near the price point
Gordon Love1 year ago
5 out of 5 starsSimple repairs
I bought this to make simple repairs when we had emergencies. I have tested it out to ensure it will perform when we need to to and so far it works great. Light weight making it easy to load and unload and so far I have been able to put down some really nice welds.
RD Maybe1 year ago
5 out of 5 starsYesWelder 205DS
This little machine is well worth the money. I'm a pipe welder by trade, bought this little machine for home garage projects. It has a good stable arc, I generally run 6011 and 7018, this machine fits the bill ...!!!
Margarito1 year ago
5 out of 5 starsEsta con madre
Bought as a gift for my spouse, he literally says he wants to build a house with it! He loves it! Very useful!
ENRIQUE CHAVEZ1 year ago
5 out of 5 starsGreat Equipment
Thanks to this little one connected to my generator i was able to finish my project on site and on time.
Showing 1–10 of 96 reviews
Why Shop With YesWelder
2 Year Warranty
Covered by a 2-year manufacturer warranty against defects in materials and workmanship.
30-Day Money-Back Guarantee
If you're not completely satisfied with your purchase, return it within 30 days for a full refund. No questions asked.
Free Contiguous US Shipping Over $150
Free standard shipping on orders over $150 within the contiguous US. Orders typically arrive in 3–5 business days.
1. Detailed Duty Cycle: Stick (110V): 60% @ 145A; 100% @ 112A · Stick (220V): 60% @ 205A; 100% @ 158A
