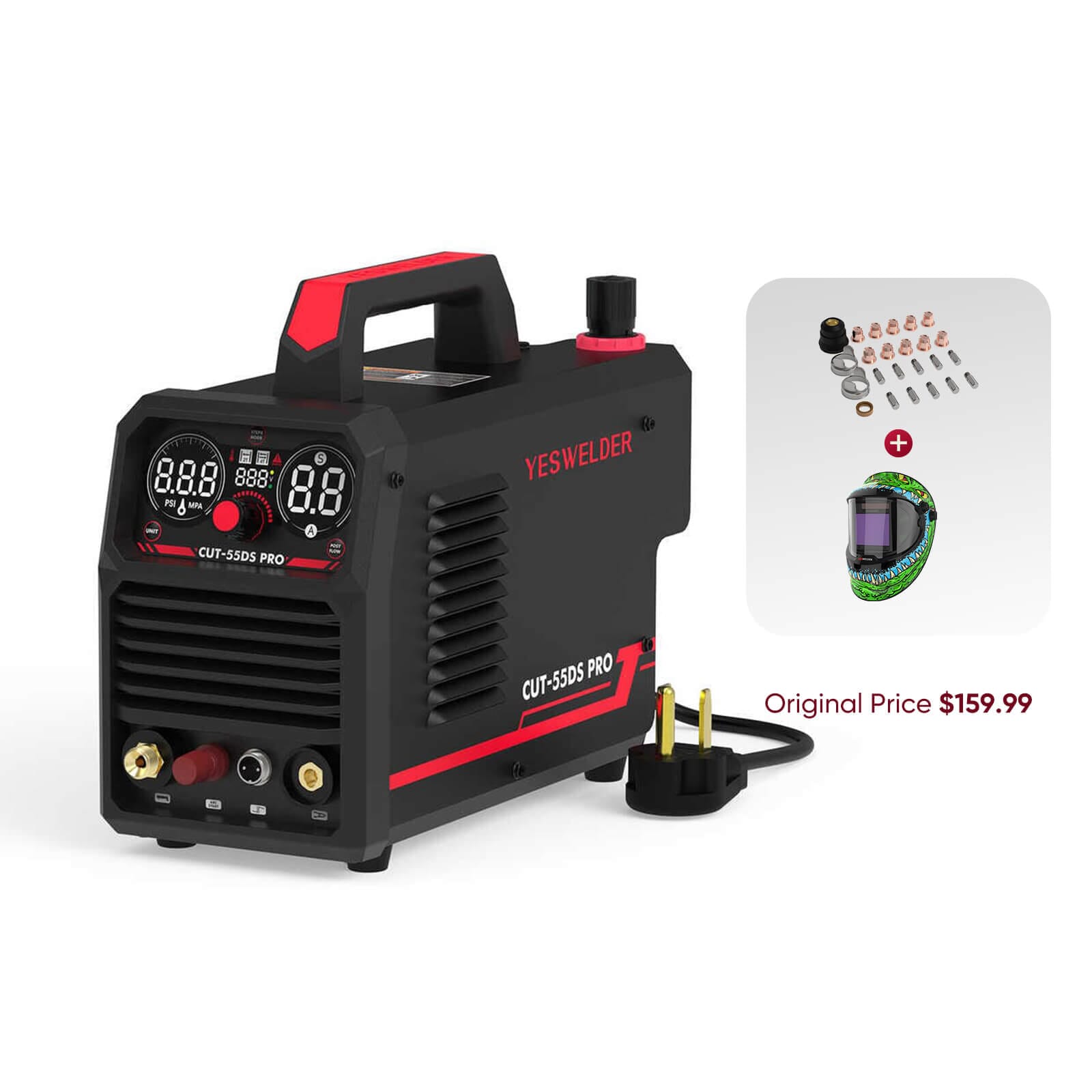

CUT-55DS-PRO
This product CUT-55DS-PRO is an upgraded versionfor CUT-55DS Pro with a new digital screen, making operations simpler and clearer.
FEATURES
- Non-Touch Pilot Arc.
- Non-HF Interfere.
- Dual Voltage 110/220V.
- Powerful and Clean cut up to 1/2".
- IGBT Inverter Technology.
Non-HF Start
The “blow-back” start comes without interference and is safe and ideal for general use, friendly to the surrounding electrical machine and human health.
Cutting Material: Stainless steel, Alloy steel, Mild steel, Copper, Cast Iron and Chrome.
Non-touch Pilot Arc
The pilot arc torch efficiently cuts through rough, painted, and rusty surfaces, while producing minimal slag.
Pilot arc technology allows you to cut without touching the tip of the metal, for better quality and longer consumable life.
Powerful Clean-Cut
Ideal Clean Cut: 1/3" @110V, 1/2"@220V.
Maximum Severance Cut: 1/2" @110V, 4/5"@220V.
Digital
INTUITIVE DISPLAY
Customizable Pressure Units: Choose between MPA or PSI.
Adjustable Post-Flow Time: Tailor to different work needs.
Enhanced User Experience: Personalized settings for convenient and comfortable operation.
Special Design
Direct Installation: Simplifying installation and preventing gas entry issues.
Reduced Installation Errors: Decreasing the likelihood of malfunctions and enhancing user satisfaction.
Lower Transport Damage: Minimizing the risk of damage during transit, saving on maintenance and replacement costs.
What's Included
- Cutter
- Ground Clamp
- Air Compressor Filter
- Adapter
- Gas Hose
- IPT40 Cutting Torch
SPECIFICATIONS
- Product weight:11.1b
- Product Dimensions: 14.17“*6.1”*8.86”
- Input Voltage: 110V/220V 50/60 Hz
- Input Current: recommend 63A breaker
- Recommend Air Pressure:0.5MPA(72.52PSI)
- Pilot Arc Time: 2s
- Post Flow Time:5-20s
- Air Compressor Requirement: 7.5CFM
- Welding Material: stainless steel, alloy steel, mild steel, copper, and aluminum, and other color metal materials.
- Protection Class: IP21S
J
This thing work amazing great product for the price
J
Had the wife order the cut-55ds pro off amazon. It was at the house 2 days later. Running off 220, 50 amp breaker with my tiny 8 gallon husky compressor (4.8 scam @40, 3.7 scam @90psi). I need to wire my 80 gallon still. Put it to work on 11g plate (1/8") and a small 2" cut on 5/8" plate and had no problem. I'm running 75 psi on all cuts and just leave it at 55 amps. Very clean cuts (with a straight edge). Even the 5/8 freehand doesn't look terrible.
Pros: price, delivery time, setup (with exception of red locktite on fitting where quick connect needs to go), size, weight, performance.
Cons: ground clamp feels flimsy(easy fix if necessary), no back up consumables (not a big deal), led screen really unnecessary
Cons are a little nit picky. I can't make claims on longevity but seems really well built for the price.
N
You don’t necessarily need an air compressor with 7.5 cfm. Mine cuts just fine with a 4.0 cfm and I’ve been using it for nearly a year. Great little machine for the shop for sure! And the price is affordable! Cut 3/8” plate all day long with this!
G
Still too early for a comprehensive review, but right out of the box, it cut through stainless steel panel like I hoped. Had just a tiny bit of trouble with a severely rusted BBQ pit, but then it kept it's arc & finished the cuts. Yes, the ground clamp was attached to cleaned steel, just a tight space to cut dirty metal, no gig on the machine. I like the total control the machine gives me. I'm able to dial in a longer post airflow to cool the cutting tip. The only things I noted, unboxing, was a lack of cutting tips. Just a couple extra would go a long way toward customer satisfaction. There's no explanation of that little flat tool I found. And there's a very slight goof on page 9 of the manual. The illustrations of the nozzle cup & standoff guide should be switched to opposite positions. However, those are only minor discrepancies. All-in-all I've found a new tool to love. A more comprehensive review would take me a bit more time, because as I said, I'm just a hobbyist, just a weekend warrior. Thanks YESWELDER.!
D
