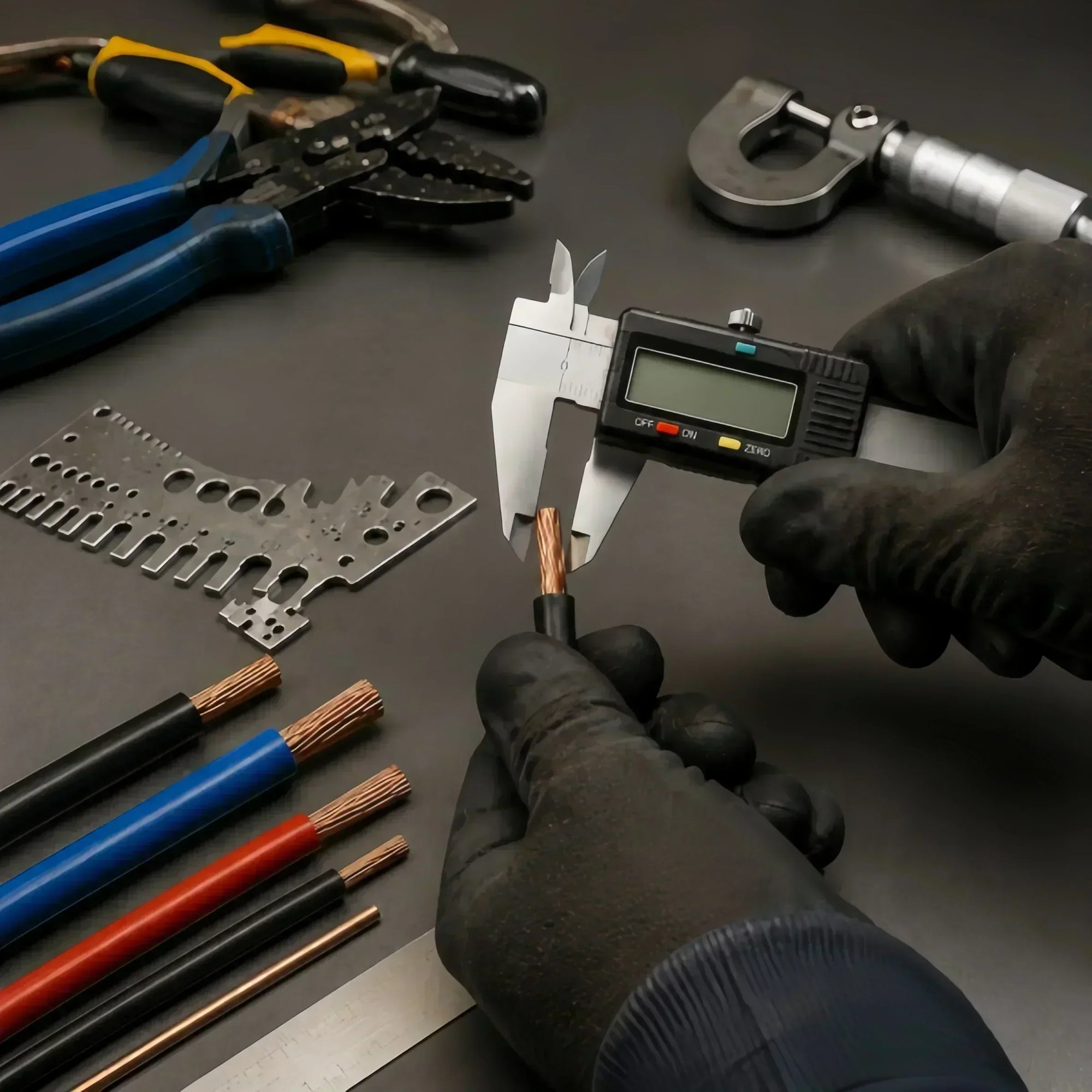

How to Measure Wire Gauge: 4 Easy Methods to Identify Wire Size

Table of Contents >

1. What Is Wire Gauge?
2. Why Do You Need to Measure Wire Gauge?
3. Wire Gauge Reference Chart (AWG to mm)
4. How to Measure Wire Gauge (4 Methods)
    4.1 Method 1: Check Wire Markings
    4.2 Method 2: Use a Wire Gauge Measuring Tool
    4.3 Method 3: Measure Wire Diameter With a Digital Caliper
    4.4 Method 4: Use a Micrometer for High Accuracy
5. How to Measure Stranded Wire Gauge
6. Best Practices for Accurate Wire Gauge Measurement
7. Common Mistakes When Measuring Wire Gauge
8. Conclusion
9. FAQs

Wire gauge is determined by measuring the diameter of the bare conductor and matching it with a standardized wire size chart, such as the American Wire Gauge (AWG) system.

There are four common ways to measure wire gauge:

Checking wire markings
Using a wire gauge tool
Measuring with a digital caliper
Using a micrometer

Always measure the bare metal conductor rather than the insulation, because insulation thickness varies between different wire types.

Identifying the correct wire gauge helps ensure electrical safety, proper ampacity, and reliable performance in applications such as home wiring, welding, automotive systems, and solar installations.

What Is Wire Gauge?

Wire gauge refers to the size of a wire conductor. In North America, wire size is commonly measured using the American Wire Gauge (AWG) standard, which assigns a number to each wire size based on conductor diameter and cross-sectional area.

One important thing to remember is that AWG sizing works in reverse:

Lower AWG number = thicker wire
Higher AWG number = thinner wire

For example, a 10 AWG wire is thicker and can carry more current than a 12 AWG wire.

Why Do You Need to Measure Wire Gauge?

Measuring wire gauge is useful when wire markings are missing, damaged, or unclear. Correct wire identification helps you:

Replace unknown wires with the correct size.
Prevent overheating and excessive voltage drop.
Select suitable wire for welding machines, battery systems, solar installations, EV charging equipment, and automotive systems.

Using an undersized wire can create safety risks, while a correctly sized wire improves electrical performance and reliability.

Wire Gauge Reference Chart (AWG to mm)

The table below shows common copper wire sizes based on AWG standards.

Wire Size (AWG)	Bare Diameter (Inches)	Bare Diameter (mm)	Conductor Area (mm²)	Ampacity at 60°C (Amps)*
20 AWG	0.0320”	0.812 mm	0.52 mm²	5A
18 AWG	0.0403”	1.024 mm	0.82 mm²	10A
16 AWG	0.0508”	1.291 mm	1.31 mm²	12A
14 AWG	0.0641”	1.628 mm	2.08 mm²	15A
12 AWG	0.0808”	2.053 mm	3.31 mm²	20A
10 AWG	0.1019”	2.588 mm	5.26 mm²	30A
8 AWG	0.1285”	3.264 mm	8.37 mm²	40A
6 AWG	0.1620”	4.115 mm	13.30 mm²	55A
4 AWG	0.2043”	5.189 mm	21.15 mm²	70A
3 AWG	0.2294”	5.827 mm	26.67 mm²	85A
2 AWG	0.2576”	6.544 mm	33.62 mm²	95A
1 AWG	0.2893”	7.348 mm	42.41 mm²	110A
1/0 AWG	0.3249”	8.252 mm	53.49 mm²	125A
2/0 AWG	0.3648”	9.266 mm	67.43 mm²	145A
3/0 AWG	0.4096”	10.405 mm	85.01 mm²	165A
4/0 AWG	0.4600”	11.684 mm	107.20 mm²	195A

*Ampacity values are typical 60°C copper conductor ratings and may vary depending on insulation type, installation conditions, and applicable electrical codes. For U.S. installations, wire sizing should follow requirements from the National Electrical Code (NEC) and applicable local regulations.

How to Measure Wire Gauge (4 Methods)

Method 1: Check Wire Markings

The easiest way to identify wire gauge is to check the markings printed on the insulation or cable jacket.

Common examples include:

12 AWG THHN
10 AWG welding extension cord
14 AWG stranded copper wire

Before measuring, inspect the cable surface for:

AWG markings
Voltage ratings
Temperature ratings
Manufacturer information

If the markings are clear, this method is usually the fastest and most reliable because no measurement is required.

Inspect the cable surface before measuring.

Method 2: Use a Wire Gauge Measuring Tool

A wire gauge tool contains multiple slots labeled with AWG sizes, allowing you to match the conductor directly.

Steps:

Strip away a small section of insulation.
Insert the bare wire into different gauge openings.
Find the slot where the wire fits properly.
Read the corresponding AWG number.

A correct fit should:

Hold the wire securely
Not leave excessive space
Not require forcing the wire into the slot

Wire gauge tools are commonly used by electricians, welders, and technicians because they are fast and portable.

Use a Wire Gauge Measuring Tool to Identify Wire Size

Source: https://www.youtube.com/watch?v=v2YaSLWKOQE

Method 3: Measure Wire Diameter With a Digital Caliper

A digital caliper provides a more precise measurement by measuring the diameter of the bare conductor.

Steps:

Remove insulation from the wire end.
Place the conductor between the caliper jaws.
Measure the diameter in millimeters or inches.
Compare the result with an AWG wire chart.

Digital calipers are useful when wire markings are unavailable or when higher accuracy is required.

Method 4: Use a Micrometer for High Accuracy

A micrometer works similarly to a caliper but provides greater measurement precision, especially for small-diameter wires.

It is commonly used in electrical manufacturing, quality control testing, and laboratory applications where small diameter differences matter.

Steps:

Remove insulation from a small section of wire.
Place the conductor between the micrometer’s anvil and spindle.
Measure the diameter in millimeters or inches.
Compare the measurement with an AWG wire size chart.

Avoid applying excessive pressure because soft conductors can deform and affect measurements.

Source: https://www.youtube.com/shorts/qOtld_r2Xzc

How to Measure Stranded Wire Gauge

Measuring stranded wire gauge is different from measuring solid wire because the conductor is made of multiple smaller strands. The correct method is to calculate the total cross-sectional area of all strands.

Steps:

Count the number of strands.
Measure the diameter of one strand.
Calculate the area of one strand.
Multiply by the total number of strands.

Example:

If a stranded wire contains 19 strands and each strand measures 0.254 mm in diameter:

Area of one strand ≈ 0.0507 mm²
Total conductor area = 19 × 0.0507 ≈ 0.96 mm²

This is close to 18 AWG stranded copper wire.

Note: Do not measure the outside diameter of stranded wire including air gaps between strands, as this can give an incorrect result.

Best Practices for Accurate Wire Gauge Measurement

Follow these tips to improve measurement accuracy:

Measure the bare conductor, not insulation.
Use clean, undamaged wire sections.
Avoid measuring near terminals or crimped areas.
Measure at room temperature.
Use the correct chart (AWG, SWG, or metric).
Apply only light, consistent pressure with measuring tools.
Record wire size, material, and cable type for future reference.
Use the same tools and measurement method when comparing multiple wires.

Common Mistakes When Measuring Wire Gauge

Mistake 1: Measuring Insulation Instead of the Conductor

The insulation diameter does not represent wire size. Always measure the copper or aluminum conductor.

Mistake 2: Ignoring Wire Material

Copper and aluminum wires with the same gauge may have different performance.

Copper offers lower resistance, better conductivity, and higher ampacity, while aluminum requires different sizing considerations due to higher resistance.

Source: https://ngoclancable.com/en/knowledge-centre/copper-and-aluminum/

Mistake 3: Assuming Wire Color Indicates Gauge

Wire color only identifies function or polarity in many applications. It does not indicate the wire gauge or conductor size. Always check markings or measure the conductor directly.

Mistake 4: Using the Wrong Wire Gauge Chart

Do not confuse AWG (American Wire Gauge) with SWG (Standard Wire Gauge). These systems use different sizing standards and measurements.

Mistake 5: Ignoring Solid and Stranded Wire Differences

Solid and stranded wires with the same gauge may have different structures and diameters. Use the correct measurement method for each wire type.

Source: https://www.electricaltechnology.org/2021/11/solid-wire-rather-than-stranded-wire-us-wiring.html

Conclusion

Measuring wire gauge is simple when you use the correct method. Checking wire markings is the fastest option, while a wire gauge tool, digital caliper, or micrometer provides more accurate identification when markings are unavailable.

Always confirm wire size before installation because the wrong gauge can cause overheating, voltage drop, equipment failure, or safety hazards. Proper wire gauge measurement ensures reliable performance in electrical, automotive, welding, solar, and battery applications.

FAQs

1. How can I tell what gauge my wire is?

The easiest way is to check the markings printed on the wire insulation. If markings are unavailable, measure the bare conductor diameter with a wire gauge tool or digital caliper and compare it with an AWG chart.

2. Can I measure wire gauge with a ruler?

A ruler is generally not accurate enough because AWG sizes differ by very small diameter changes. A digital caliper or wire gauge tool provides much better accuracy.

3. Is wire gauge the same as wire diameter?

No. Wire diameter is the physical measurement of the conductor, while wire gauge is a standardized size classification based on that diameter.

4. Does a smaller AWG number mean a bigger wire?

Yes. In the AWG system, lower numbers represent larger conductors. For example, 8 AWG wire is thicker than 12 AWG wire.

5. How do I measure welding cable gauge?

Measure the copper conductor diameter or cross-sectional area after removing insulation. Welding cables are often labeled by AWG size or metric area (mm²).
