300A Electrode Holder with 10 ft Lead

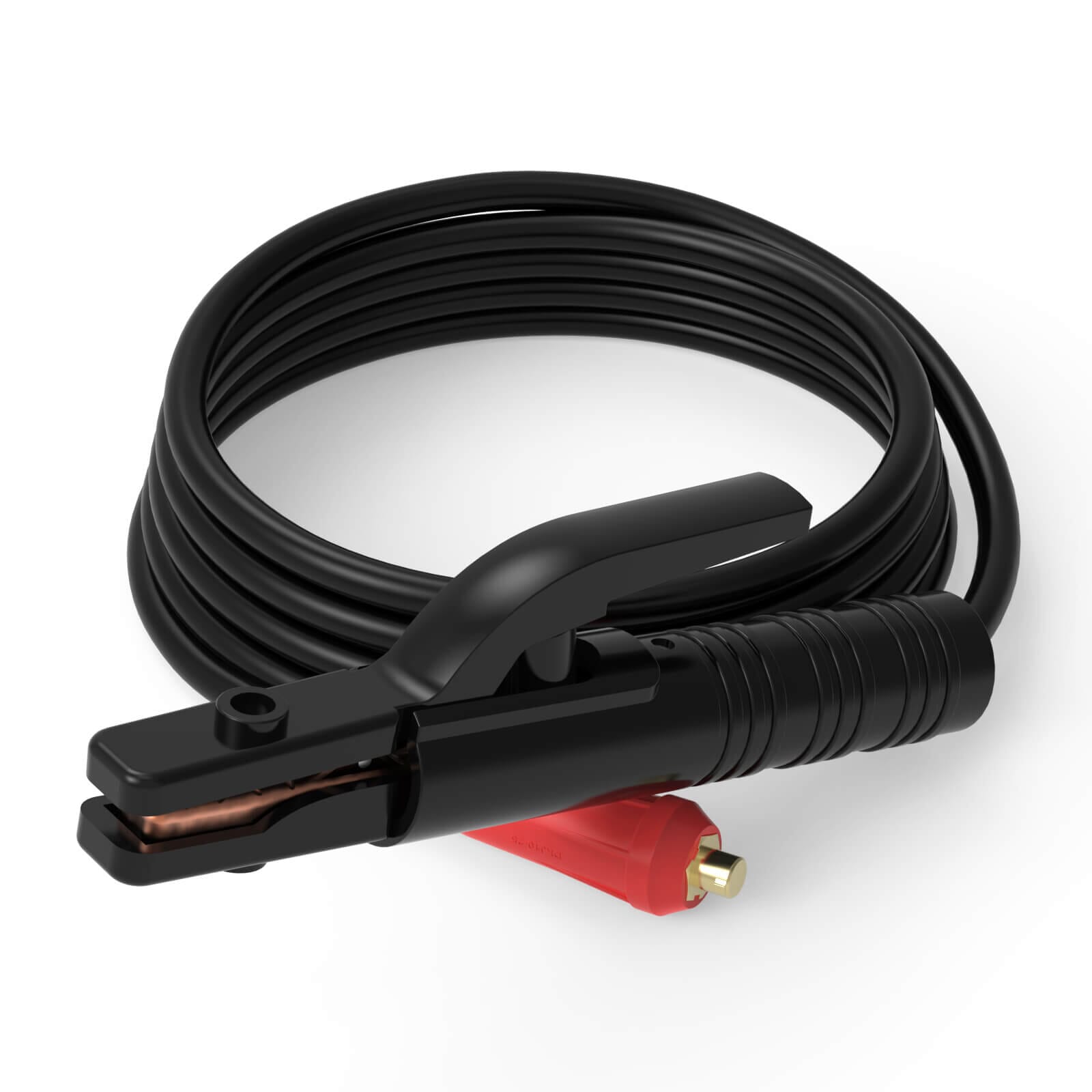

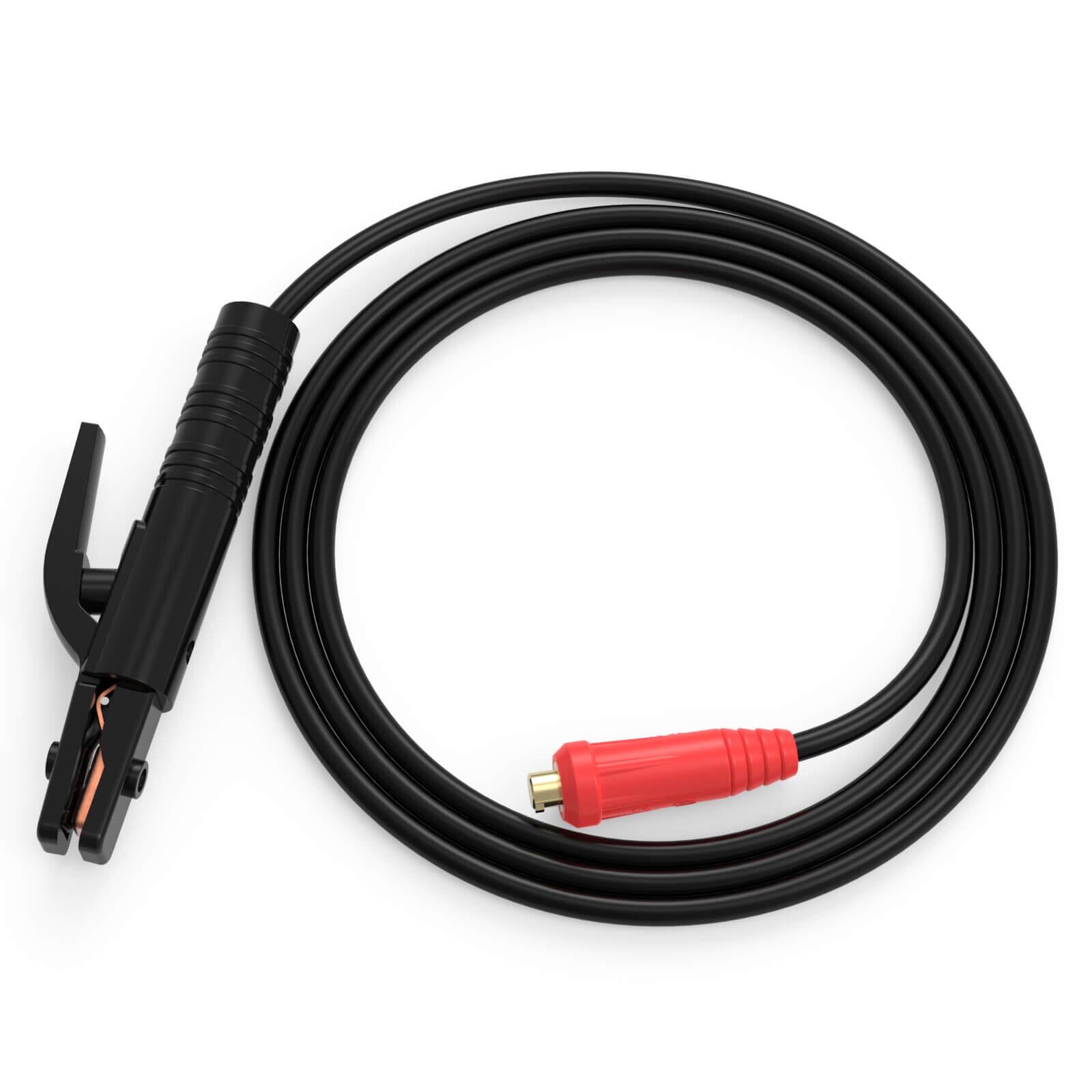

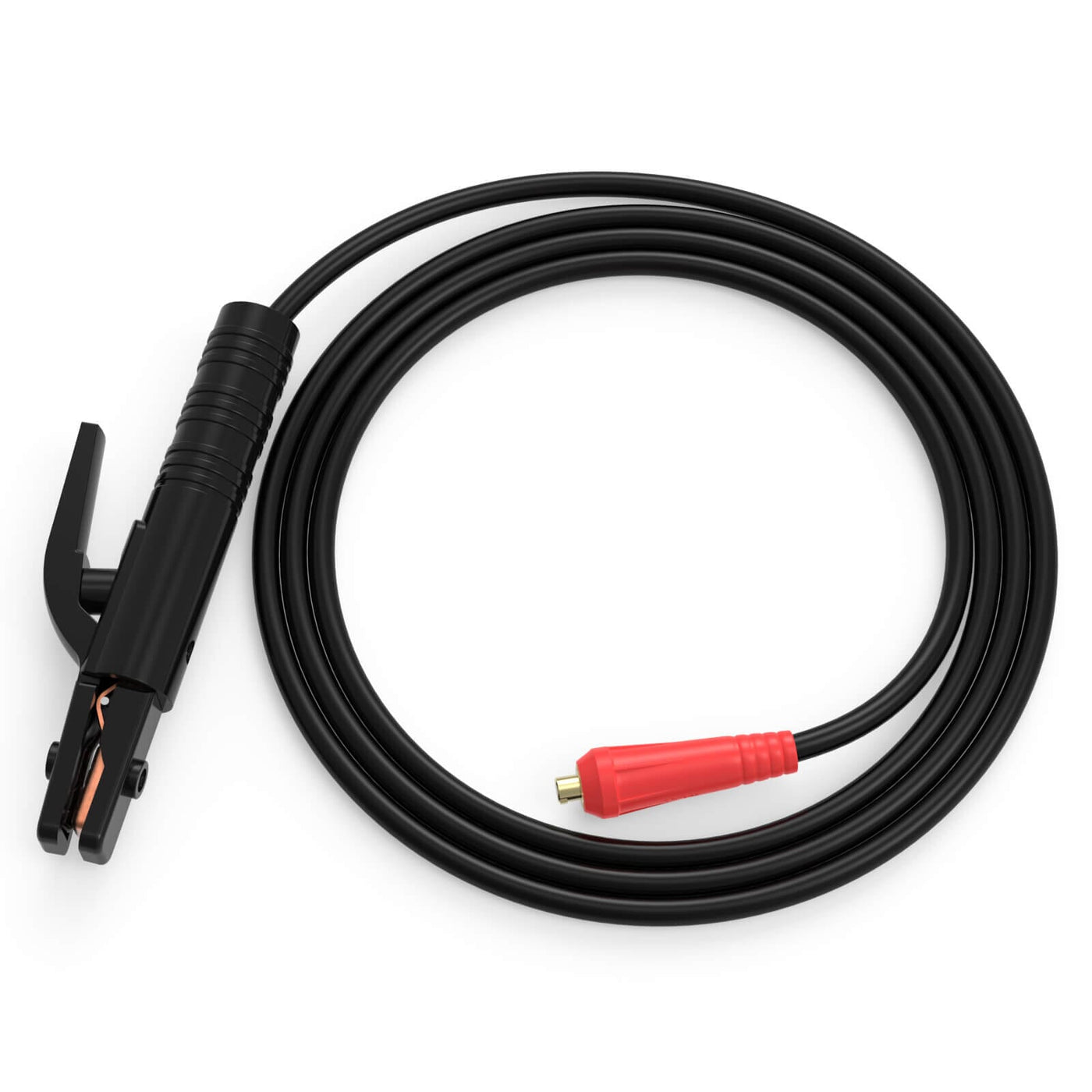

This 300A electrode holder uses spring-loaded jaws and an insulated grip to position stick electrodes through a 10 ft lead. Select the DINSE connector by matching the welder output socket.

Select by Welder Socket

Choose the DINSE connector by checking the marking and physical size of the welder output socket. Do not choose by machine output amperage alone.

Key Specifications

• Holder rating: 300A
• Lead length: 10 ft (3 m)
• Connector options: DINSE 10-25 and 35-50
• Process: Stick

Use

The insulated handl and spring-loaded jaws secure the electrode for positioning and current transfer. Replace worn or damaged holders, insulation or cable assemblies before welding.
