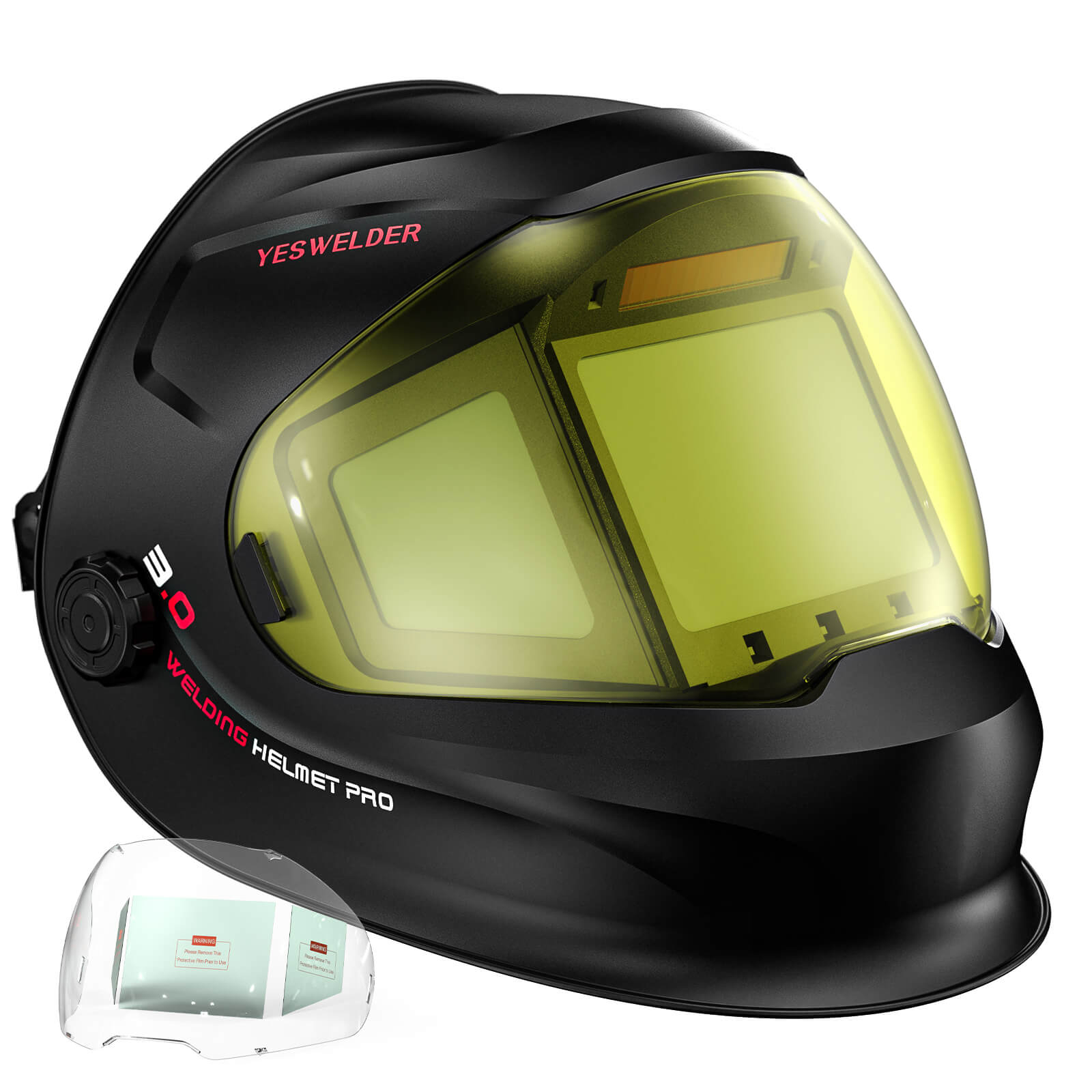

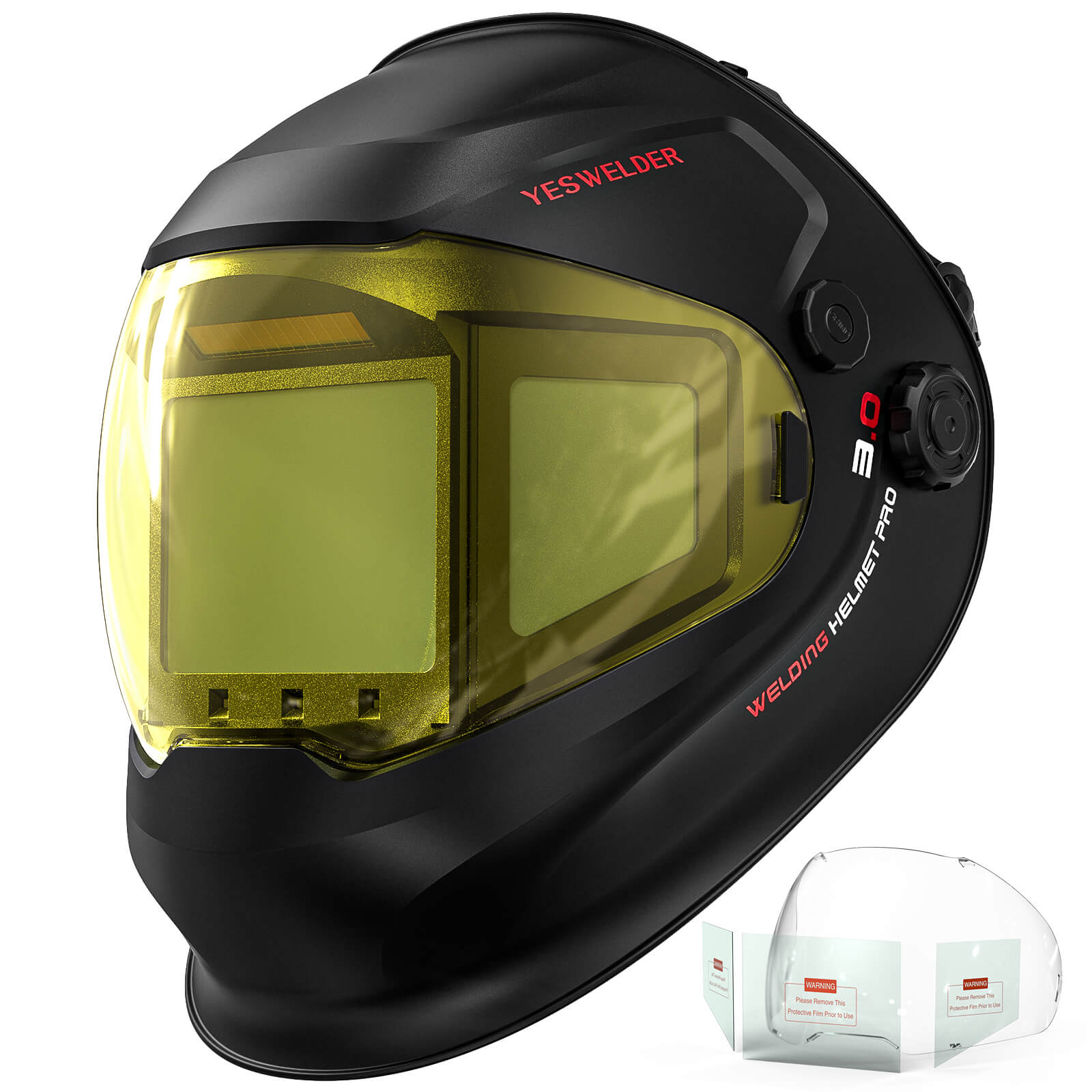

BW-10MAXTRI Intelligent Panoramic Auto-Darkening Welding Helmet

The YESWELDER Intelligent Auto-Darkening Welding Helmet is built for professional welders who demand maximum visibility, intelligent protection, and effortless operation. Featuring automatic shade adjustment, a 180° panoramic viewing area, and True Color 1/1/1/1 optics, it automatically adapts to changing arc conditions while providing exceptional clarity and all-day comfort.

Designed for multi-process welding, the helmet supports MIG, TIG, Stick, Tack, Cutting, and Grinding with an advanced internal digital display, 9 customizable memory presets, and intelligent arc detection for greater productivity.

Key Features

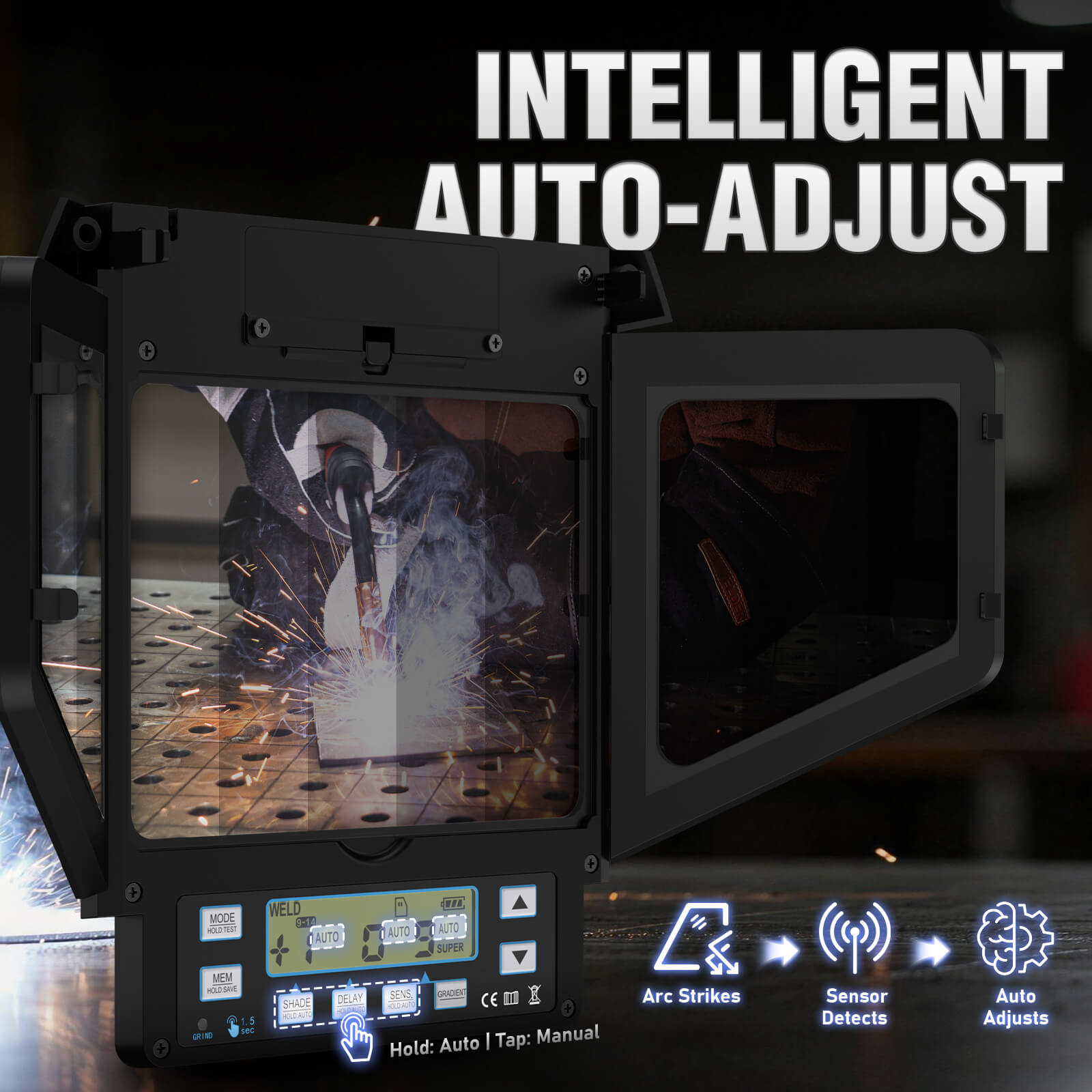

• Intelligent auto-adjustment automatically optimizes shade, sensitivity, and delay based on arc intensity
• Large 180° panoramic viewing area minimizes blind spots during welding
• True Color technology with 1/1/1/1 optical clarity for a clear, natural weld puddle view
• Five independent arc sensors provide reliable arc detection with a 1/30,000 second switching speed

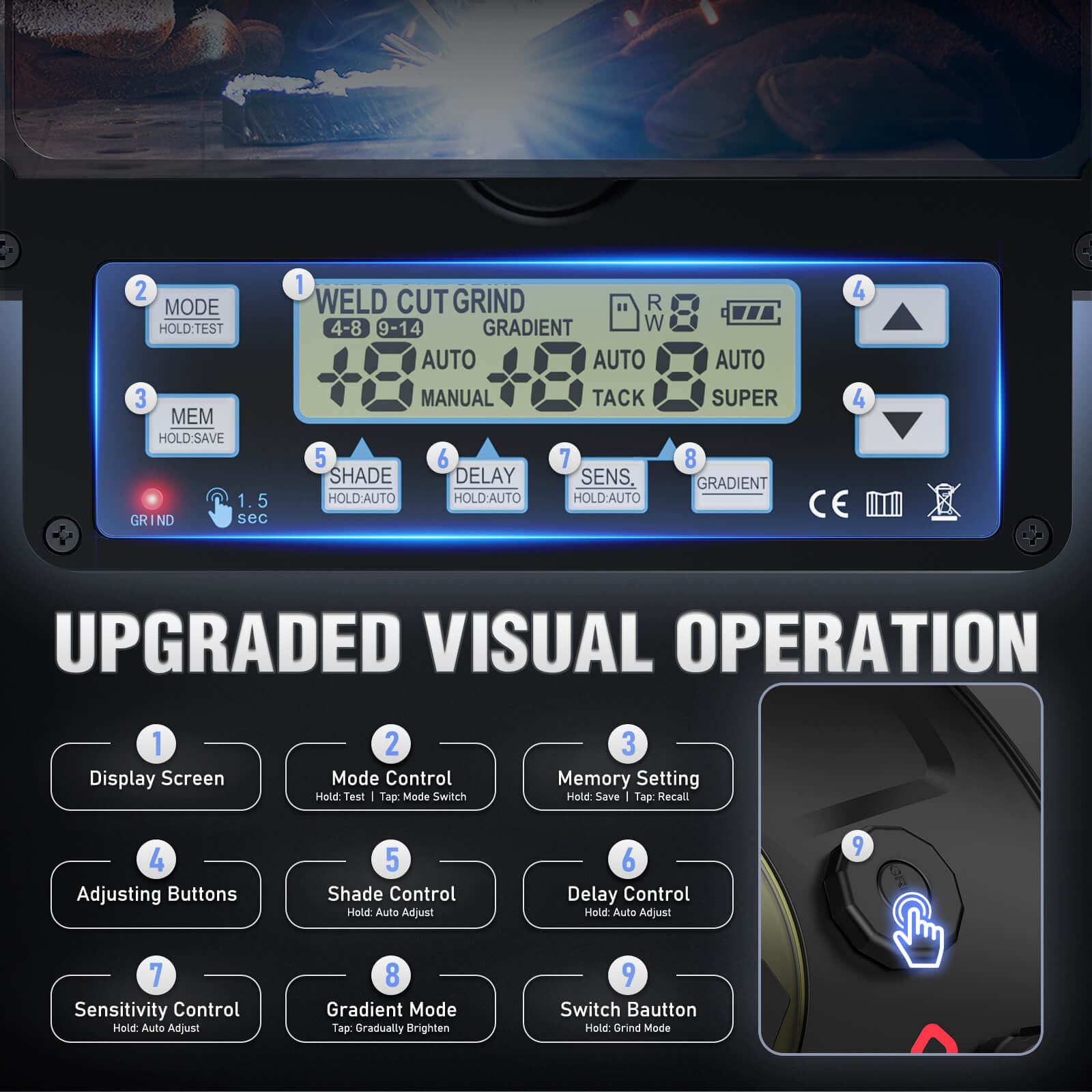

• Internal digital display offers precise parameter adjustment and stores up to 9 custom presets
• Wide shade range of 3 / 4–8 / 9–14 supports multiple welding and cutting applications
• Gradient Mode provides smoother light transition to reduce eye fatigue
• Lightweight polyamide (PA) shell reduces neck strain during extended welding sessions
• Comfortable headgear features a secure, slip-resistant adjustment system and fits most prescription glasses

Applications

• MIG Welding
• TIG Welding
• Stick Welding
• Tack Welding
• Plasma Cutting
• Grinding
• Automotive Repair
• Metal Fabrication
• Industrial Maintenance
• Workshop and Garage Use

Materials & Construction

• Shell Material: Polyamide (PA)
• Optical Class: 1 / 1 / 1 / 1
• Arc Sensors: 5
• Viewing Area: 8.89 × 3.23 in
• Field of View: 180° Panoramic
• Switching Speed: 1/30,000 sec
• Memory Presets: 9

Specifications

• Product Type: Auto-Darkening Welding Helmet
• Viewing Technology: True Color
• Viewing Area: 8.89 × 3.23 in
• Field of View: 180°
• Optical Rating: 1 / 1 / 1 / 1
• Arc Sensors: 5
• Light State: Shade 3
• Variable Shade: 4–8 / 9–14
• Switching Speed: 1/30,000 sec
• Memory Function: 9 User Presets
• Modes: Weld / Cut / Grind / Tack / Gradient
• Shell Material: Polyamide (PA)

Package Includes

• 1 × Intelligent Auto-Darkening Welding Helmet
• 1 × User Manual

FAQ

Q: What makes the intelligent auto-adjustment different from a standard auto-darkening helmet?
A: The helmet automatically adjusts shade, sensitivity, and delay according to welding arc intensity, reducing manual adjustments while allowing fine tuning when needed.

Q: Which welding processes does this helmet support?
A: It supports MIG, TIG, Stick, Tack welding, Plasma Cutting, and Grinding.

Q: What is the advantage of the 180° panoramic view?
A: The panoramic design greatly expands peripheral vision, helping reduce blind spots during fabrication, automotive repair, and out-of-position welding.

Q: Can I save my preferred welding settings?
A: Yes. The internal digital display allows you to save up to nine custom parameter presets for fast switching between different welding processes.

Q: Is the helmet comfortable for long working sessions?
A: Yes. The lightweight PA shell and ergonomic headgear help reduce neck fatigue while providing a secure fit, even when wearing prescription glasses.
