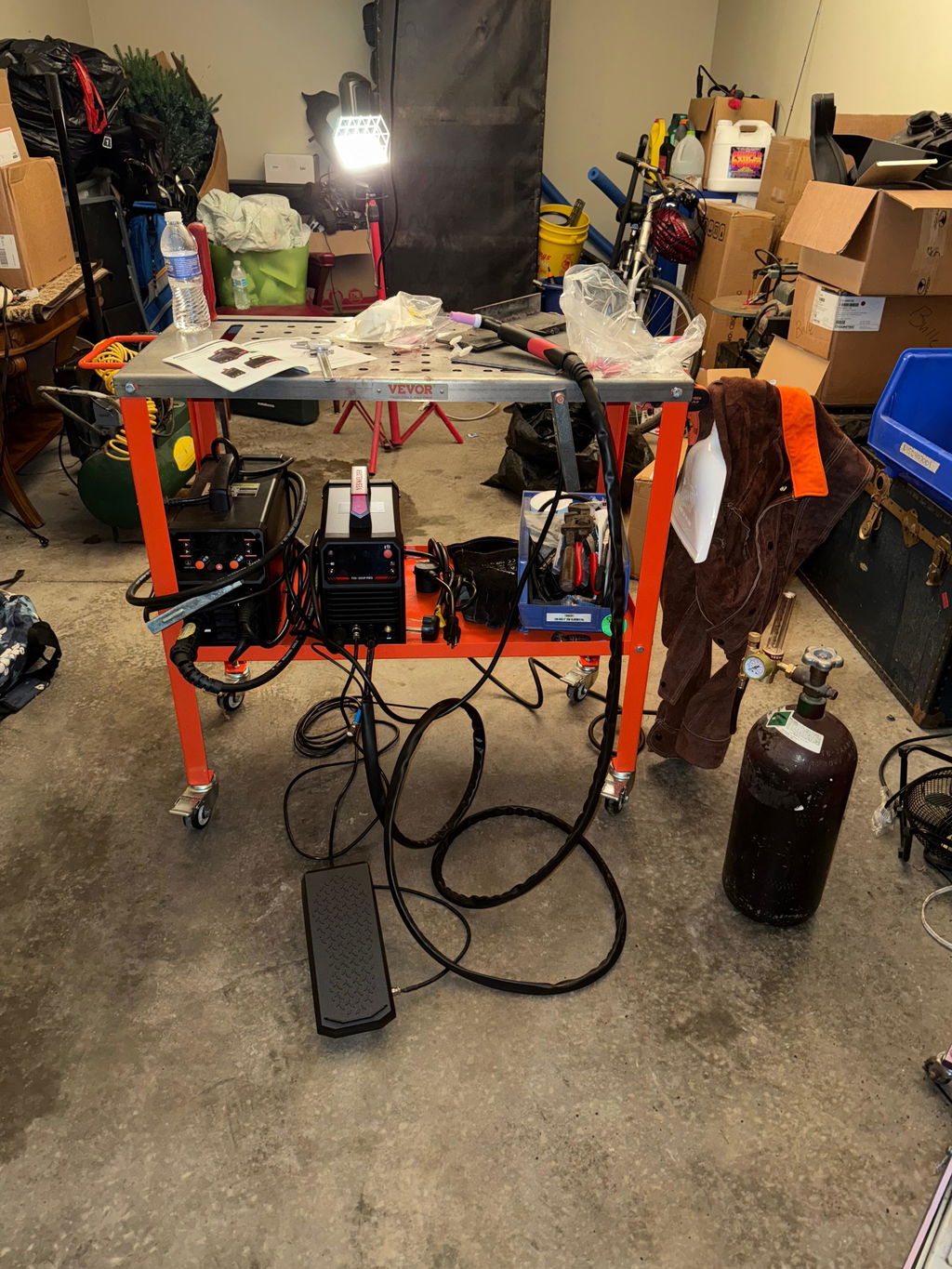

FP-5P-B TIG Amperage Control 5-Pin Foot Pedal

The foot pedal can work with the welder of YesWelder TIG-250P AC/DC, YWT-200DC, TIG-200P-ACDC,TIG-200P-ACDC-PRO, CT2050, DP200 and other machines with 5-pin torch controls:

• Applicable to various types of TIG Welding & Cutting Machine
• 2+3 Pin TIG Foot Control Pedal Amp control.
• Adjusts amperage from 0-250 amps
• Step to activate gas contactor and increase amperage; release to turn off and decrease amperage.
• Easy to install, easy to use.

Wiring Diagram

• Torch control: 3,5
• Amperage Control: 2,4,1

NOTE:

• Please be sure your machine support foot pedal function，
• Different machine has different control board, so may need to change the connect ways.
• If your welder has a different connection, you may change the connector according to the manual to fit your welder.

Package:

• 1pcs foot control pedal.
• A 2+3-hole connecting rope
